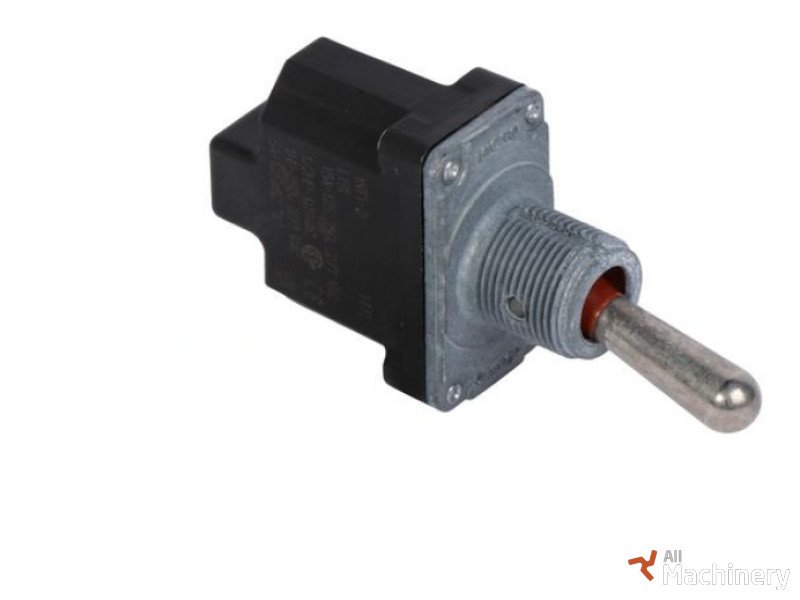

GENIE Genie128205GT Working platform electric parts (2020 year)

Switch Genie128205GT fits articulating boom lift(s) Genie Z-30/20N, Genie Z-34/22 BI-ENERGY, Genie Z-34/22 DC, Genie Z-34/22 IC, Genie Z-34/22N, Genie Z-45/22 IC, Genie Z-45/22 MP, Genie Z-45/25 DC/BI-ENERGY, Genie Z-45/25 IC, Genie Z-45/25J (JIB) DC/BI-ENERGY, Genie Z-45/25J (JIB) IC, Genie Z-51/30J, Genie Z-60/34, telescopic boom lift Genie S-40, Genie S-45, Genie S-60, Genie S-65, Genie S-80, Genie S-85, electric scissor lift(s) Genie GS-3384, Genie GS-3390, Genie GS-4390, Genie GS-5390

Number of connections 6
Type of the connection screw step
Current (A) 15
Minimum voltage U1 (V) 125
Maximum voltage U2 (V) 277
Actuator present YES
Type of the actuator round
Length of the actuator L1 (mm) 18
Built-in diameter D1 (mm) 12
Length thread panelmount L3 (mm) 10
Type of thread 15/32
Pitch (inch) 32
Right or left handed thread right handed thread
Total length of the toggle switch L4 (mm) 33.6
Total width of the toggle switch W2 (mm) 22.5
Total height of the toggle switch H1 (mm) 63
Sort of switch double pole
Type of the switch on-none-on
Material of the housing metal plastic
Material of the actuator metal
IP value/protection 67
Cap present YES
Symbol present no
Light present no
