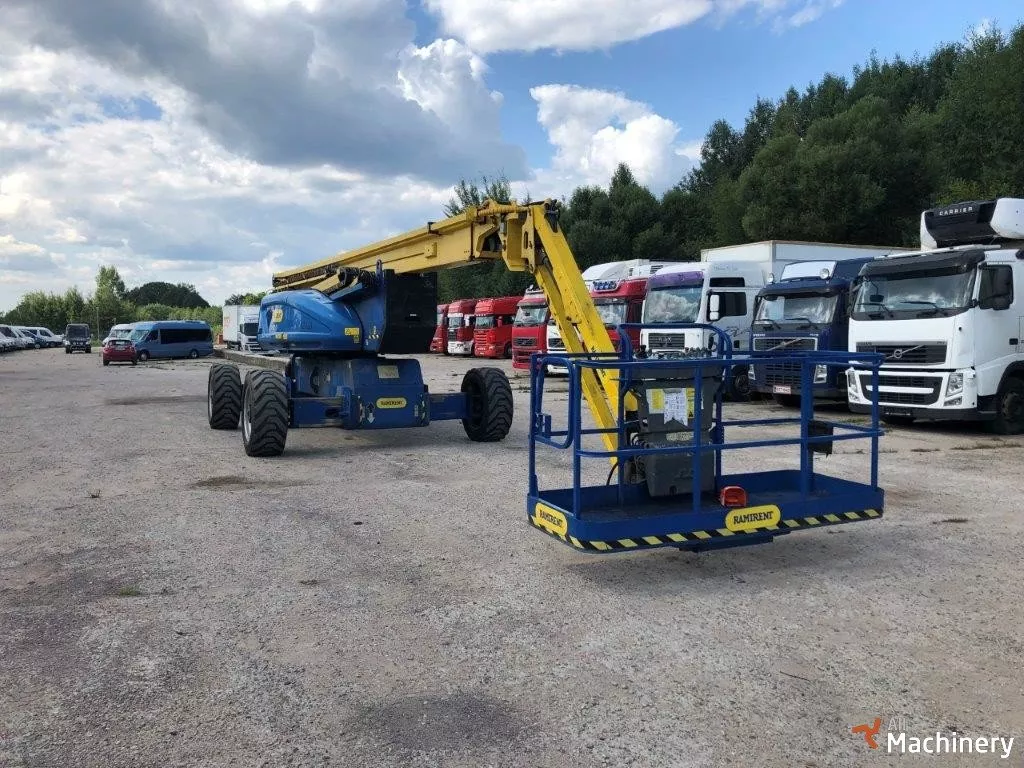

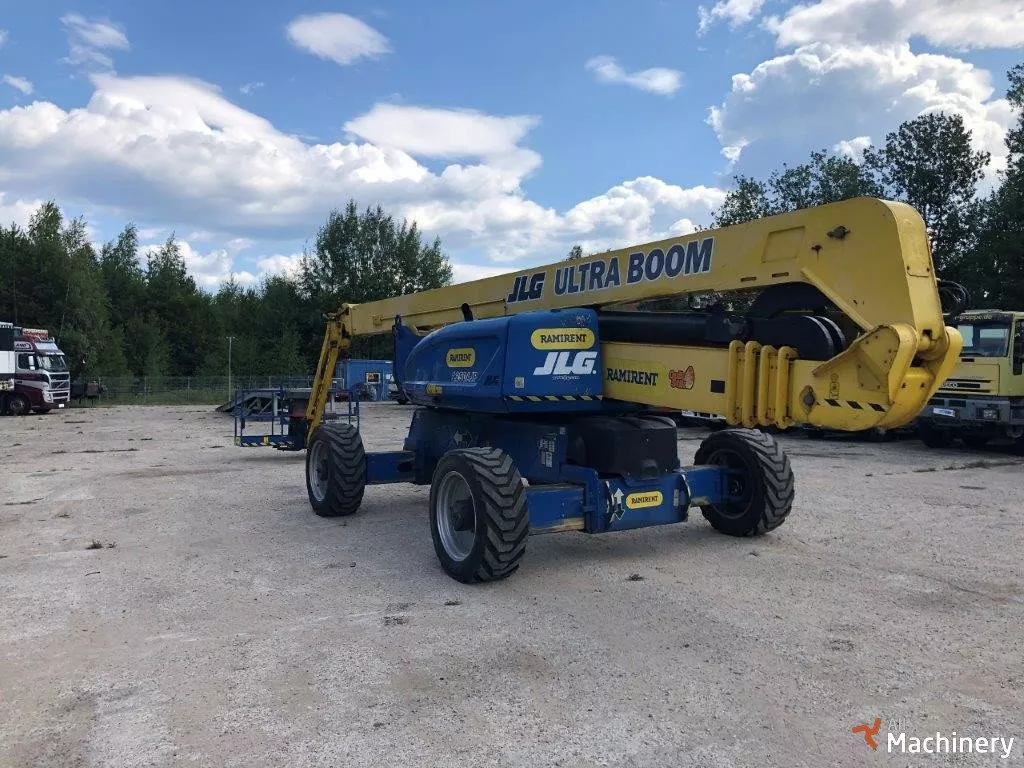

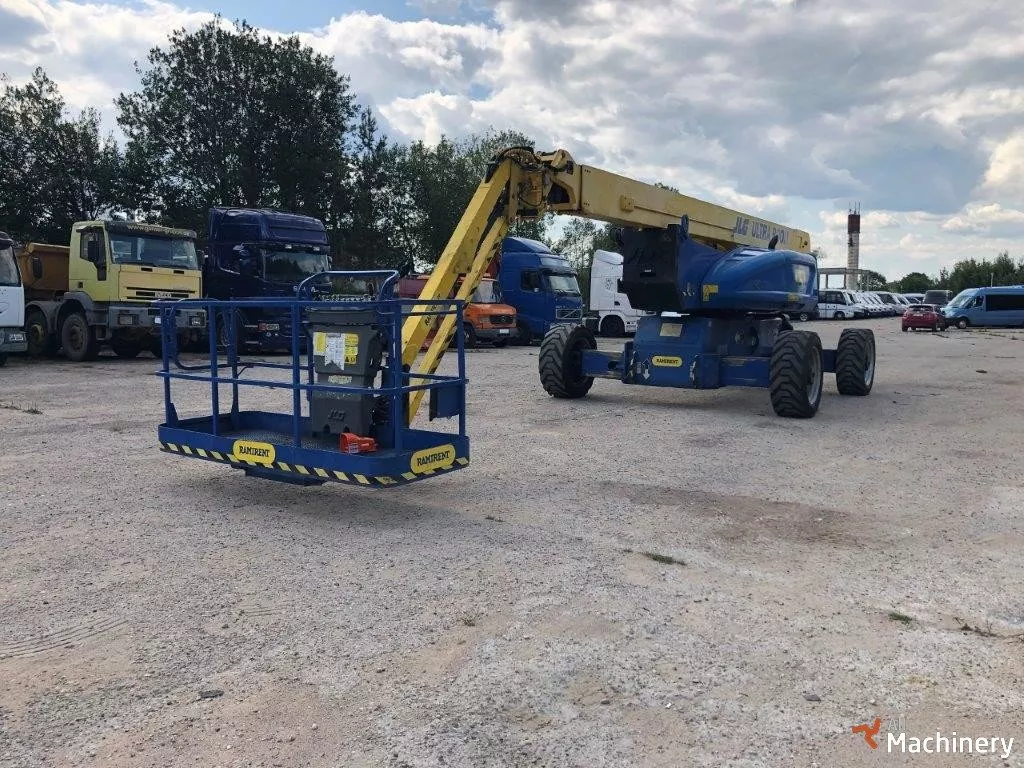

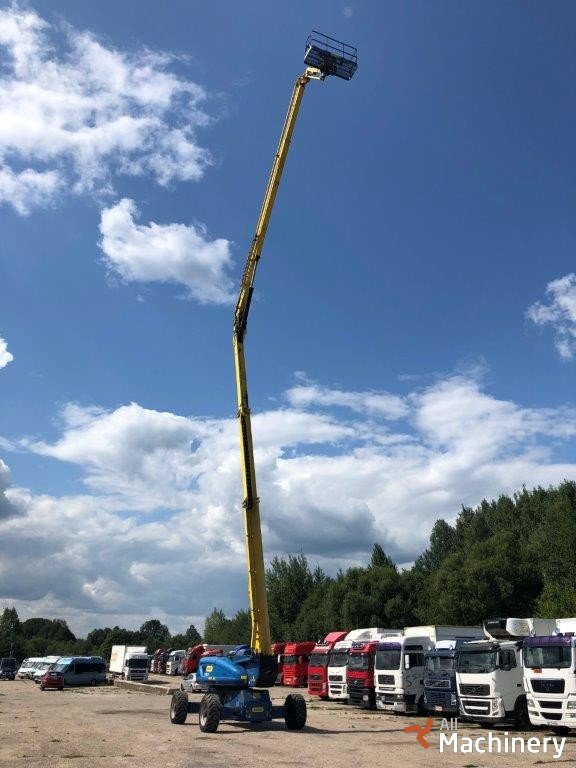

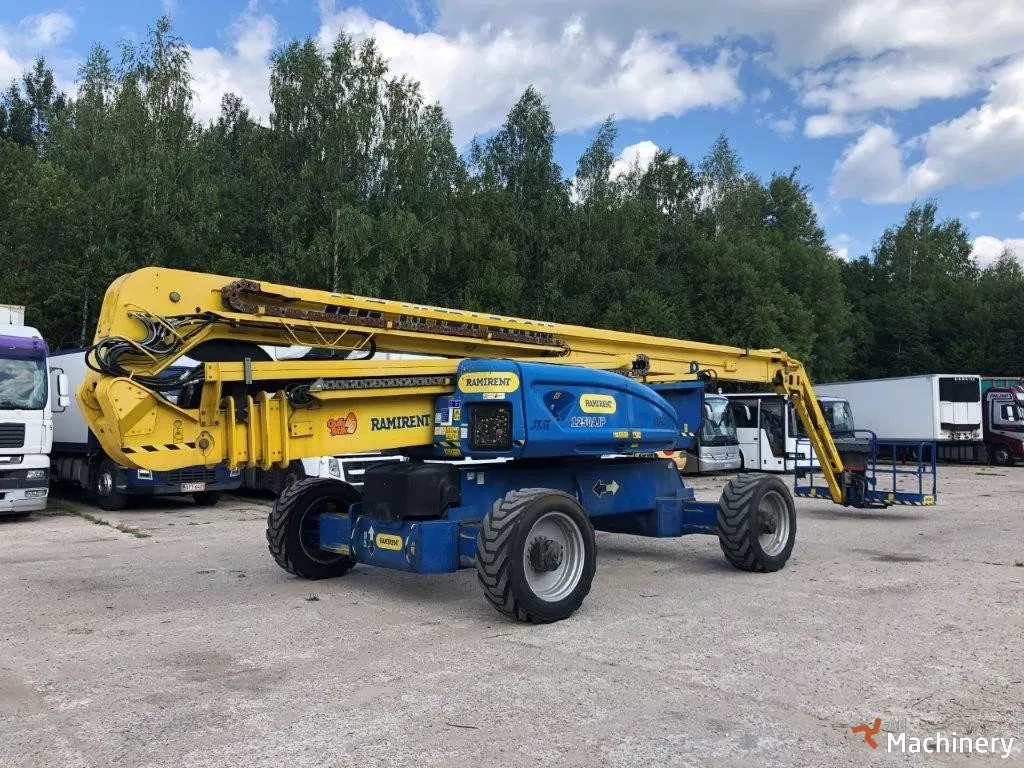

Articulated boom lift JLG 1250 AJP
Year 2008
• Working Height 40.30 m
• Platform Height 38.30 m
• Working Outreach 19.90 m
• Horizontal Outreach 19.25 m
• Up and Over Height 18.44 m
• Swing (Continuous) 360°
• Platform Capacity – Restricted 450 kg
• Platform Capacity – Unrestricted 230 kg
• Platform Rotator (Hydraulic) 180°
• Jib – Overall Length 2.44 m
• Jib - Range of articulation 130° Vertical (+75°/-55°)
• JibPLUS®
- Range of Articulation 125° Horizontal
A. Platform Size 0.91 m x 2.44 m
B. Overall Width (Axles Retracted) 2.49 m
Overall Width (Axles Extended) 3.81 m
C. Tailswing (working condition) 0.91 m
D. Stowed Height 3.05 m
E. Stowed Length (transport position) 11.46 m
F. Wheelbase 3.81 m
G. Ground Clearance 0.30 m
• Machine weight 1/2 21,000 kg
• Maximum Ground Bearing Pressure 7.03 kg/cm2
• Drive Speed 5.2 km/h
• Gradeability 45%
