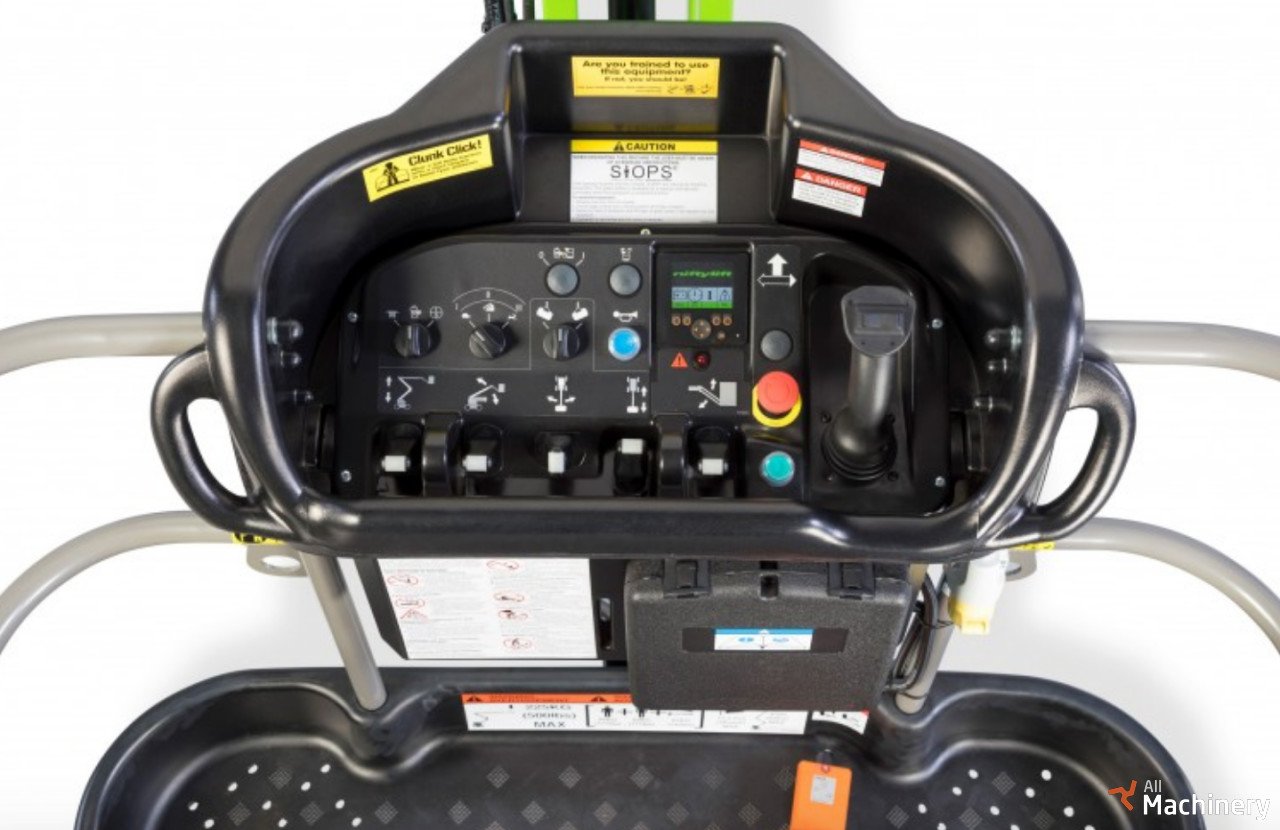

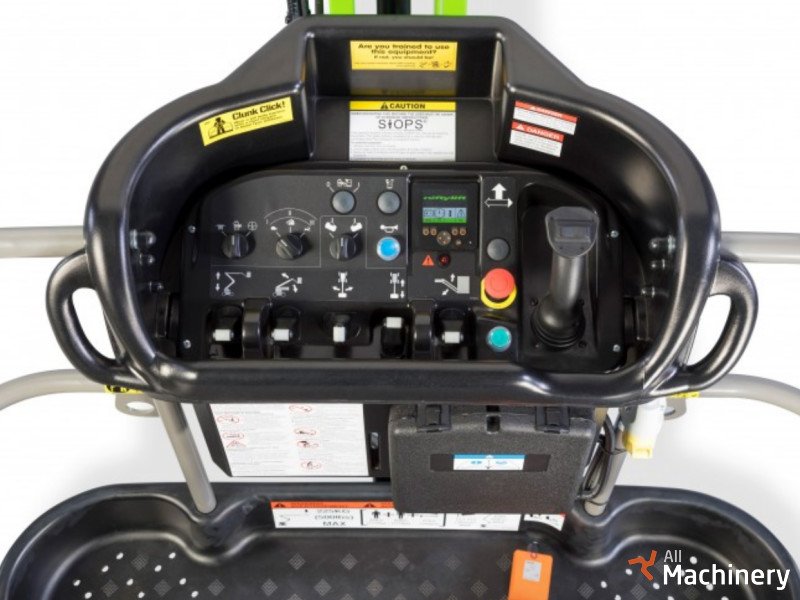

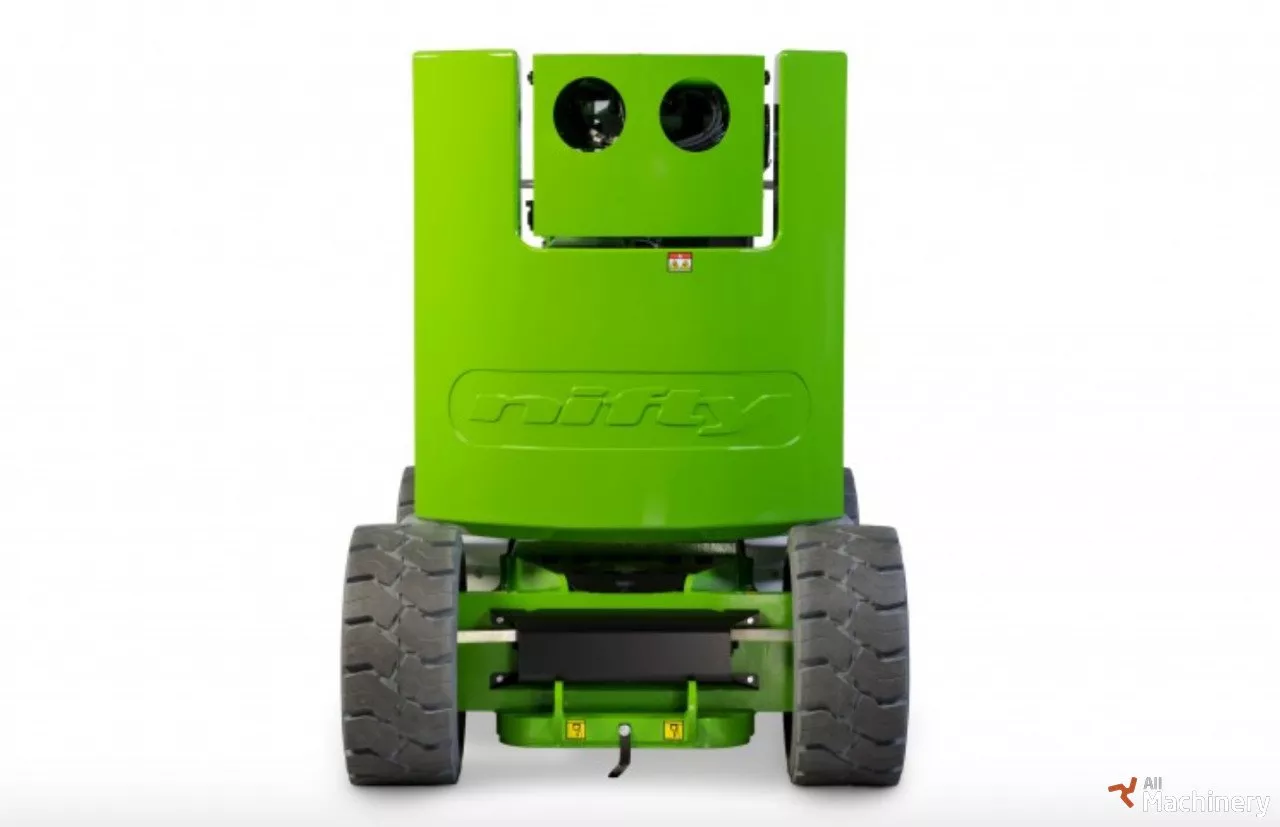

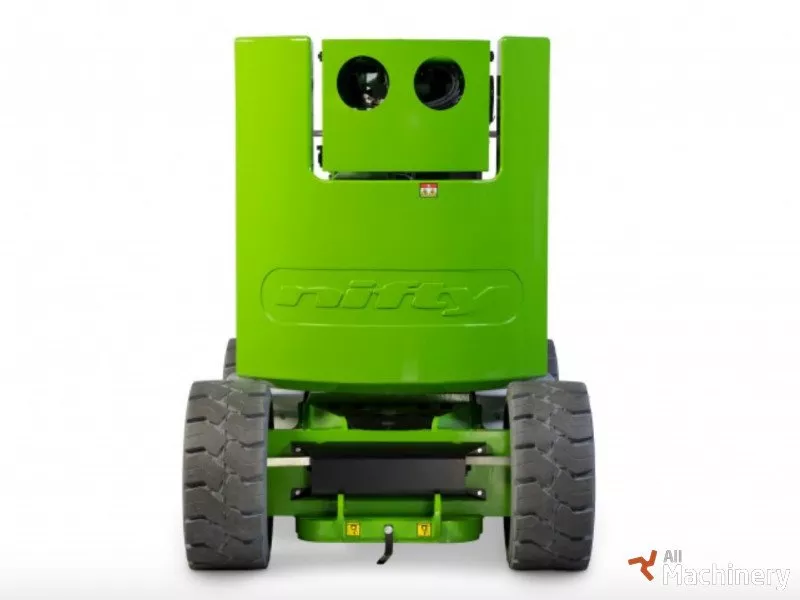

The HeightRider 17 Narrow (HR17N) will lift 2 men and their tools to a working height of 17m or a working outreach of 9.7m. A 180° rotating cage and fly-boom coupled with fully proportional multi-function controls deliver exceptional precision when positioning, making tasks easier and quicker to complete.
Working Height 17m
Working Outreach 9.7m
Platform Height 15m
Machine Width 1.5m
Machine Height 1.99m
Machine Length 6.4m
Transport Length 4.93m
Travel Speed 3.5km/h
Gradeability 25%
Gradeability 14°
Turning Radius 3.5m
Minimum Weight 7650kg
Safe Working Load 225kg
Fly Boom Arc 150°
Cage Rotation 180°
Cage Width1.5m
Cage Depth 0.8m
Power Options

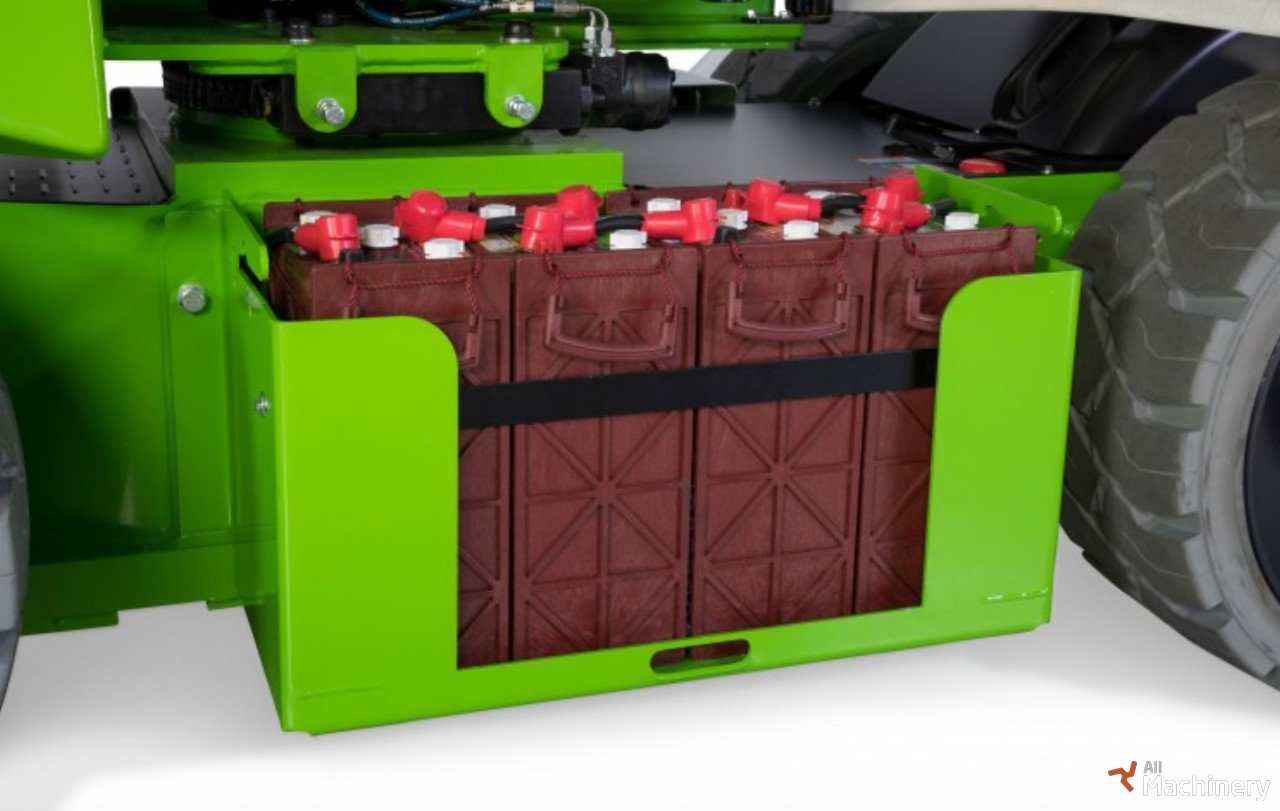

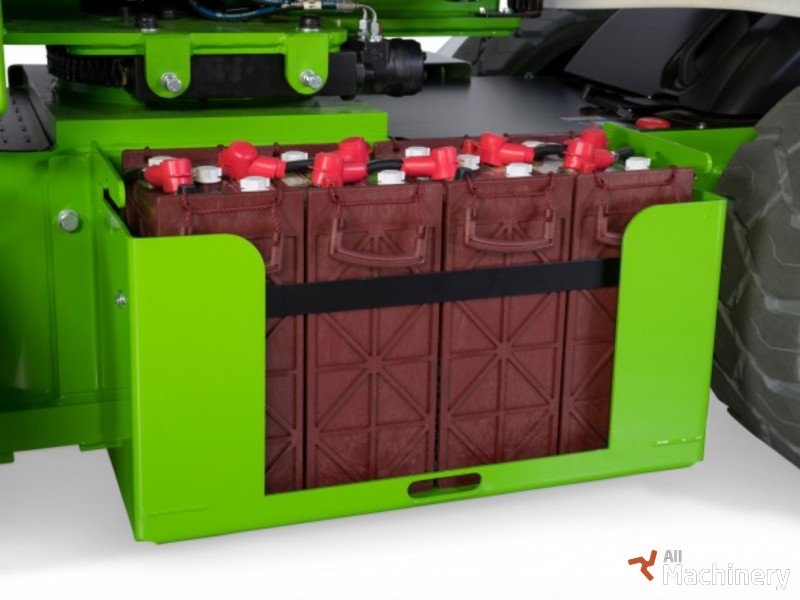

Battery only

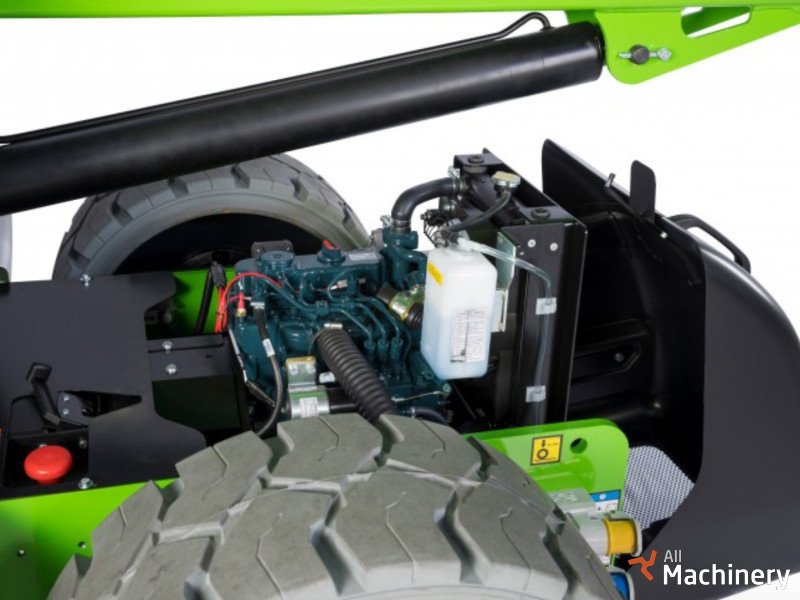

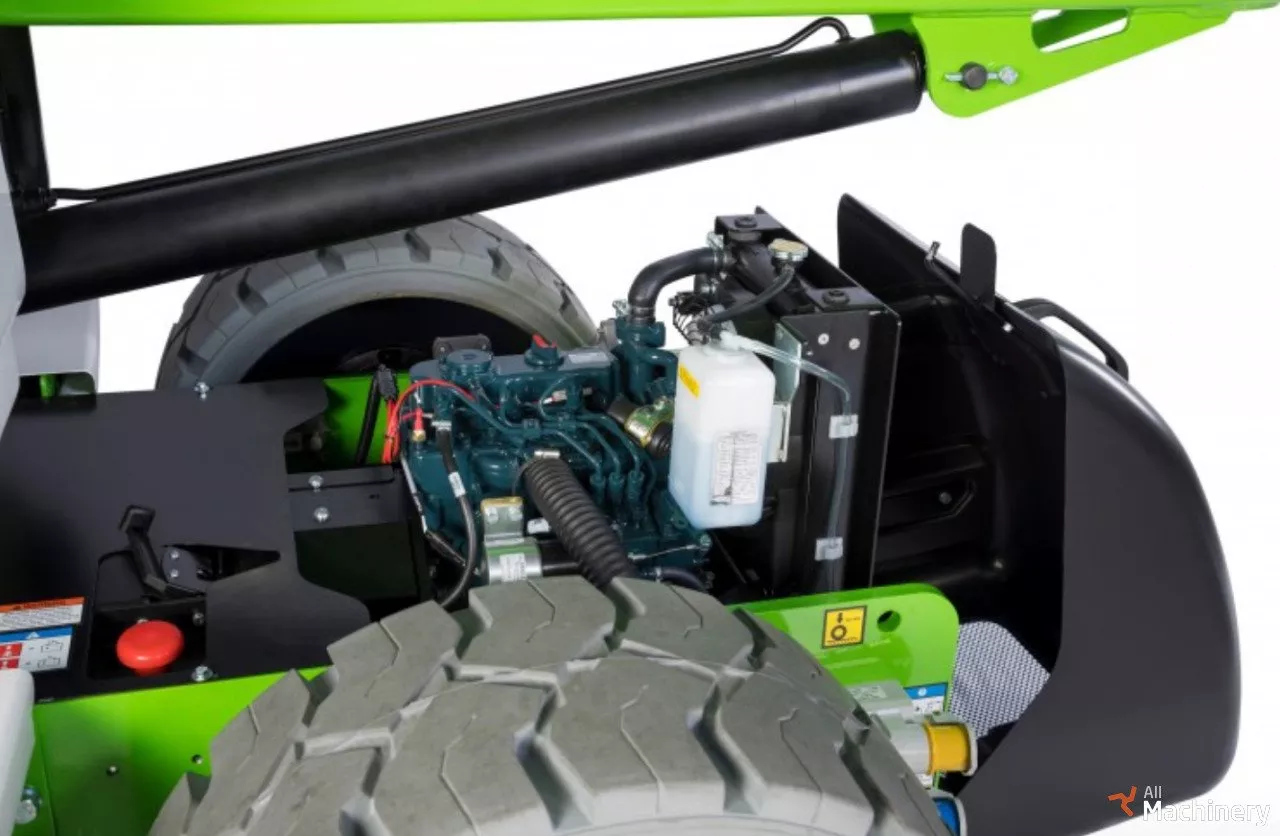

Hybrid (Battery & Diesel
