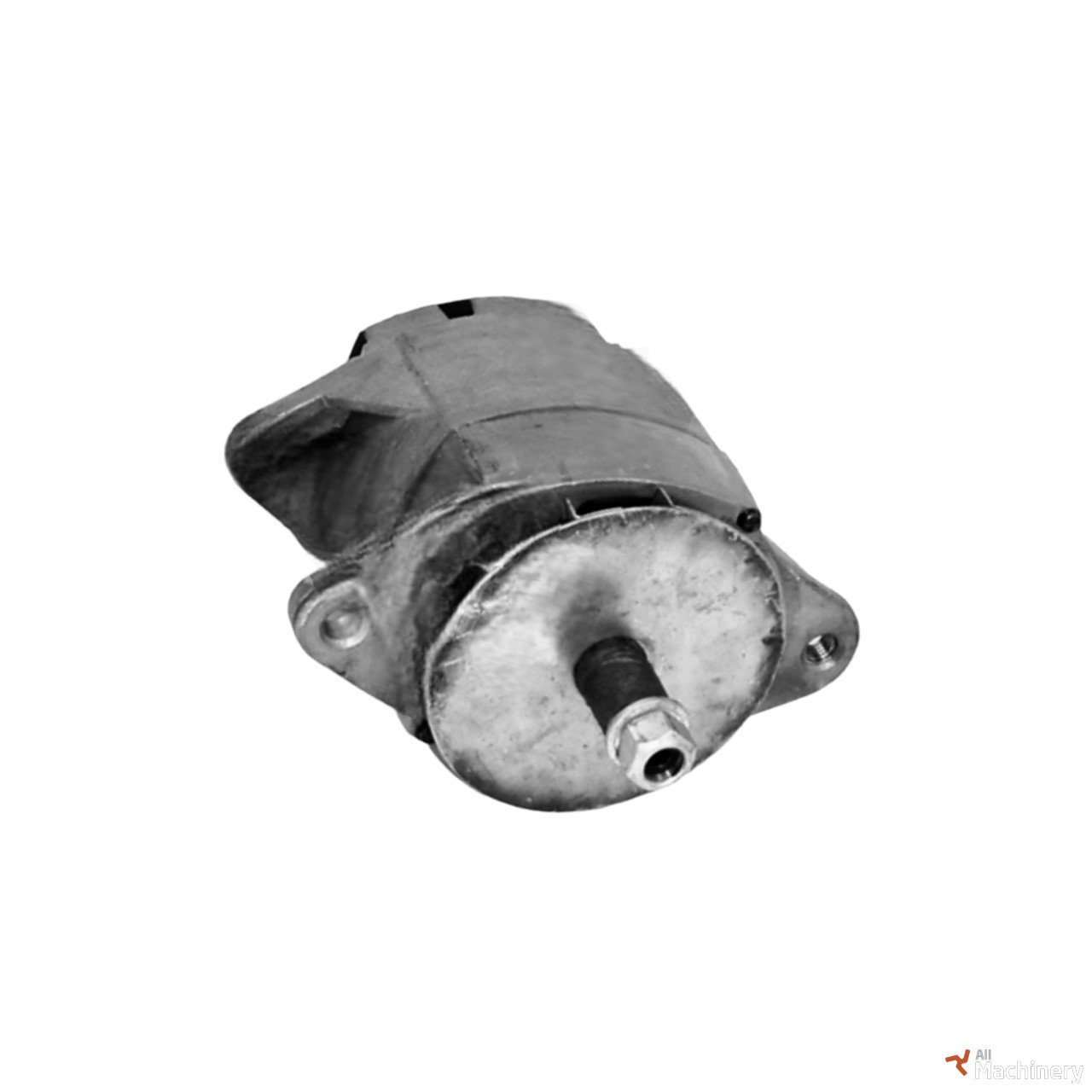

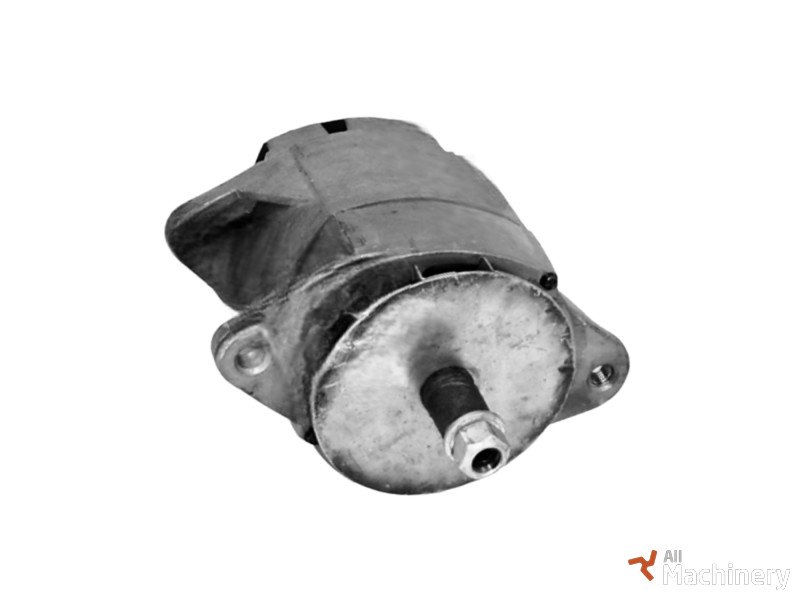

ALTERNATOR CATERPILLAR 5N5692
Type of mounting:type A - 3 fixing feet - 2 in line
Voltage U (V):24
Current I (A):45
Bracket width L1 (mm):14.5
Bracket width L2 (mm):13.5
Support width L3 (mm):14
Mounting bracket distance X (mm):101.5
Mounting hole diameter D1 (mm):13.5
Thread type:1/2 UNC
Position of the legs:30-60
Center distance C (mm):199
Integrated regulator:YES
Cooling fan:external cooling
Equipped with vacuum pump:NO
Plug type:42
