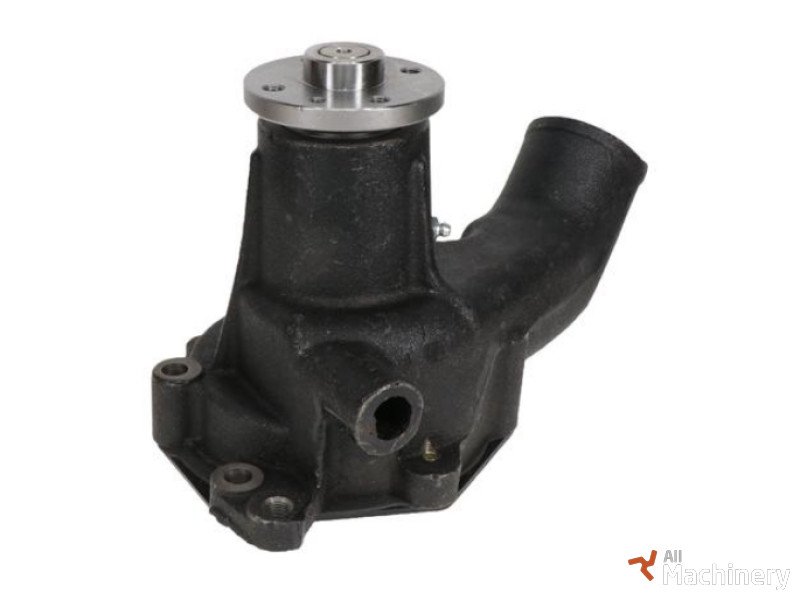

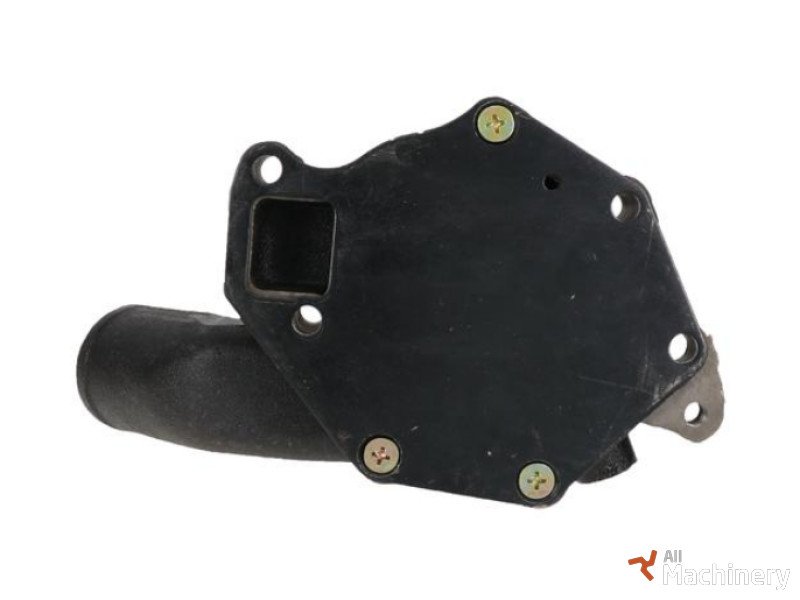

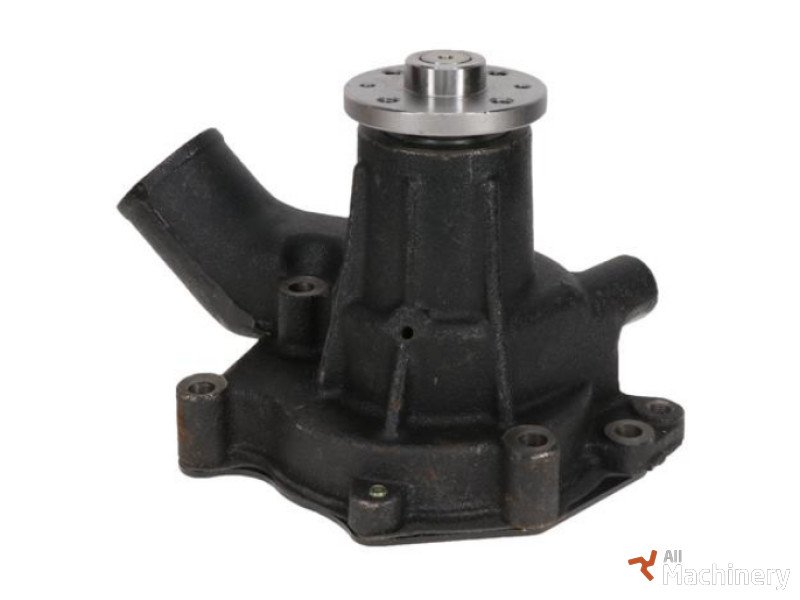

Water pump JCB 02/800990 for Perkins 6.354 engines. Fits JS175W-T2, JS200W-T2, JS190, SJ210, JS210 HD, JS220. JS220 HD, JS235 HD, JS240 LC, JS240 AUTO, JS260 XD, JS260 AUTO. Sort waterpump flange Type waterpump A1 Total height H1 (mm) 167 Maximum length L1 (mm) 274 Shaft diameter D1 (mm) 20 Neck diameter D2 (mm) 32 Flange/gear or pully diameter D3 (mm) 77 Total number of mounting holes for v-pulley (holes + thread) 6 Number of threads 6 Biggest thread TA1 M8 Metric pitch Pm1 (mm) 1.25 Smallest thread TA2 M6 Metric pitch Pm2 (mm) 1 Smallest centre distance of nearest mounting holes C1 (mm) 23 Biggest centre distance of nearest mounting holes C2 (mm) 43 Thread of mounting cooling fan present NO Gasket included YES
Water pump JCB 02/800990 for Perkins 6.354 engines. Fits JS175W-T2, JS200W-T2, JS190, SJ210, JS210 HD, JS220. JS220 HD, JS235 HD, JS240 LC, JS240 AUTO, JS260 XD, JS260 AUTO.
Sort waterpump flange
Type waterpump A1
Total height H1 (mm) 167
Maximum length L1 (mm) 274
Shaft diameter D1 (mm) 20
Neck diameter D2 (mm) 32
Flange/gear or pully diameter D3 (mm) 77
Total number of mounting holes for v-pulley (holes + thread) 6
Number of threads 6
Biggest thread TA1 M8
Metric pitch Pm1 (mm) 1.25
Smallest thread TA2 M6
Metric pitch Pm2 (mm) 1
Smallest centre distance of nearest mounting holes C1 (mm) 23
Biggest centre distance of nearest mounting holes C2 (mm) 43
Thread of mounting cooling fan present NO

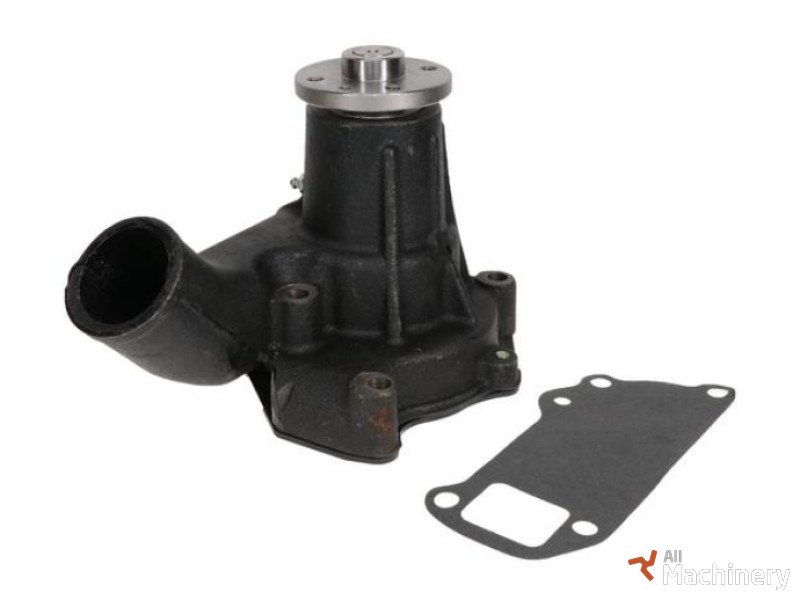

Gasket included YES
