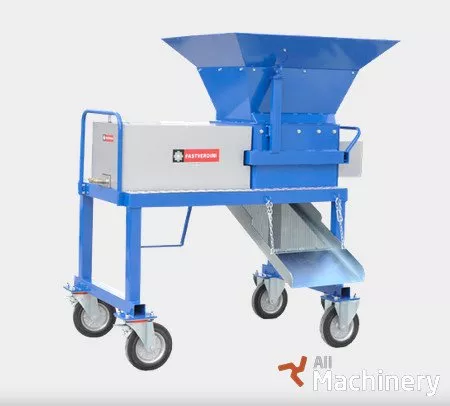

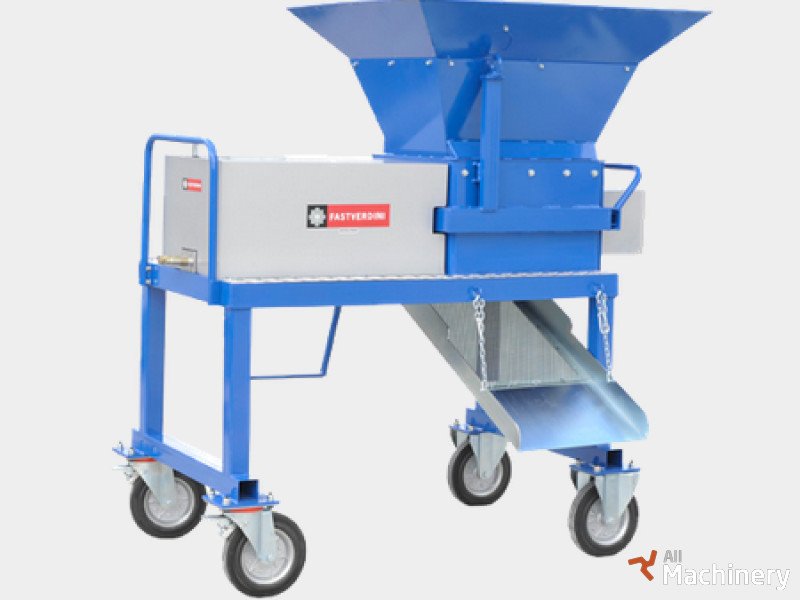

Double shaft crusher with special, high resistance steel blades, for crushing all types of building material including slabs of asphalt, very hard rock, concrete blocks including reinforced, granite rocks, obtaining material grain size between approximately 0 and 5 cm. The machine is completely automatic with anti-locking system with change of direction of blade rotation
ModelMTH 500 - Three phase electric
Model Code PFRANIDE
Operating weight Kg800
Crushing inlet mm490 x 390
Loading hopper mm1000 x 1140
Blade rotation speed rpm 11
Motor power kw (Hp)7,4 (10)
Voltage V frequency Hz400 - 50
Productivity m3/h min-max0,5 - 4
Material grain size at outfeed mm
0 - 50
MTH 500 _ Three phase electric
Double shaft crusher with special, high resistance steel blades, for crushing all types of building material including slabs of asphalt, very hard rock, concrete blocks including reinforced, granite rocks, obtaining material grain size between approximately 0 and 5 cm. The machine is completely automatic with anti-locking system with change of direction of blade rotation
ModelMTH 500 - Three phase electric
Model Code PFRANIDE
Operating weight Kg800
Crushing inlet mm490 x 390
Loading hopper mm1000 x 1140
Blade rotation speed rpm 11
Motor power kw (Hp)7,4 (10)
Voltage V frequency Hz400 - 50
Productivity m3/h min-max0,5 - 4
Material grain size at outfeed mm
0 - 50
