MECHANICAL CONTROLS and PATENTED HYDRAULIC adjustable blade inclination WITH SIMULTANEOUS INCLINATION OF BOTH ROTORS.
Two work lights. Protective frame that can be opened from both sides - All parts are galvanised - 10 lt water tank with button-operated pump and continuous flow sprayers - Special galvanised steel battery case - Wheels and handles for transport - Equipped with device to float finish wall edges

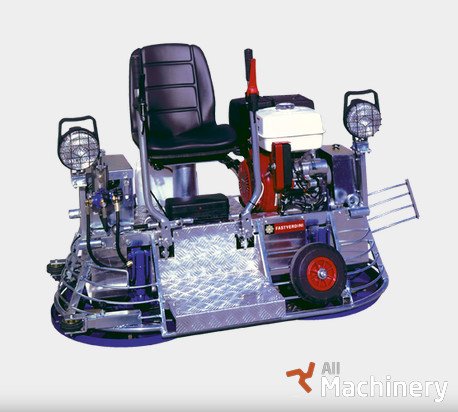

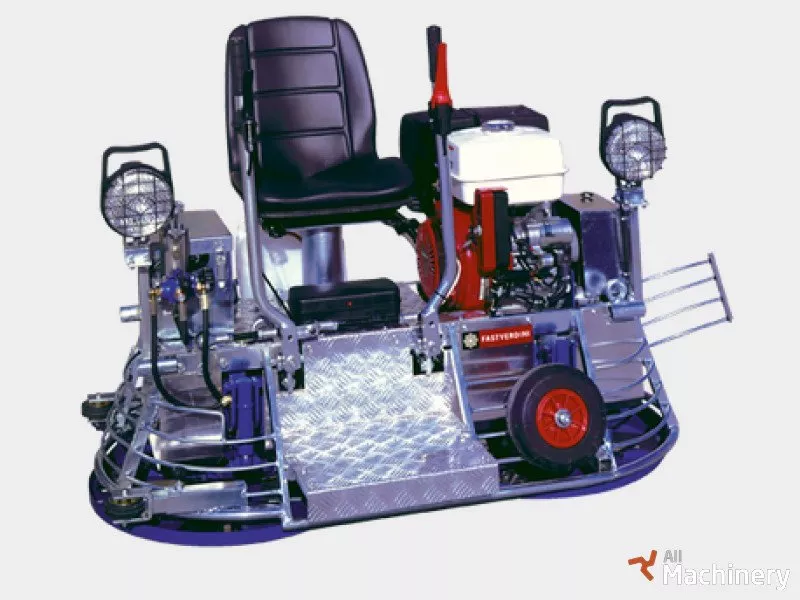

Model BABY DUPLEX 630 - Honda
Model Code PFDUPL65
Rotor diameter mm610
Number of blades8
Finishing blades mm220 x 100
Roughing blades mm-
Trowel disk diameter mm640
Blade rev rotation 1/min 106
Motor Honda petrol engine GX390
Motor Power kw (Hp)9.6 (13)
Starting Electric
Fuel consumption l/h3.5
Tank capacity l6.1
Dimensions
Leng x Wid x H mm1380 x 680 x 1020
Weight kg210
