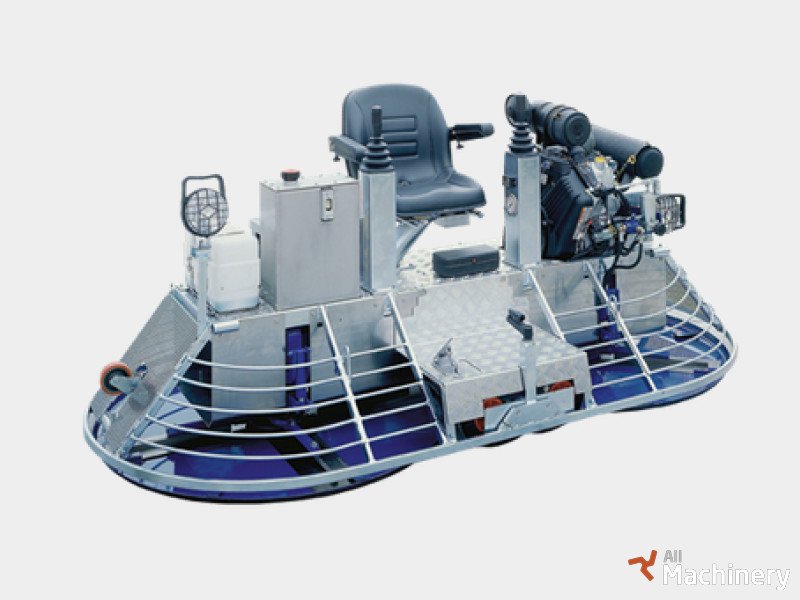

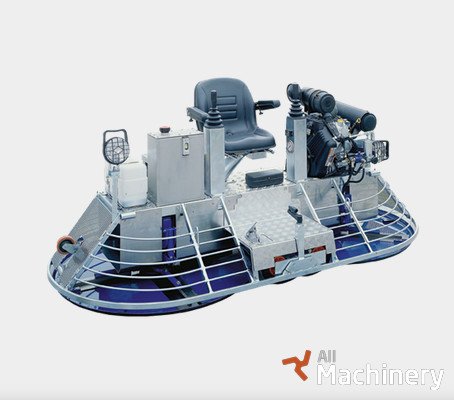

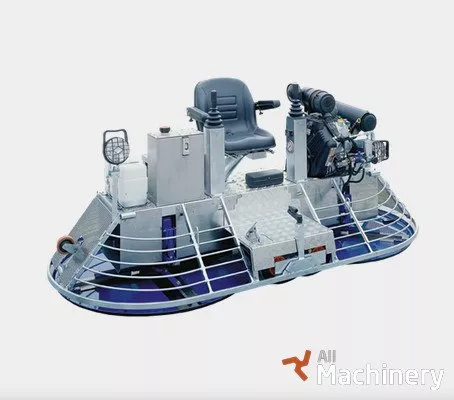

HYDRAULIC CONTROLS with two joysticks. PATENTED HYDRAULIC adjustable blade inclination WITH SIMULTANEOUS INCLINATION OF BOTH ROTORS. Two work lights. Protective frame that can be opened from both sides - All parts are galvanised - 10 lt water tank with button-operated electric pump and continuous flow sprayers - Special galvanised steel battery case - Anti-corrosion 11 lt fuel tank - Stainless steel oil tank - Over-sized gears in steel box - Working hours display and RPM display
ModelDUPLEX 1200/H - Honda
Model CodePFDUPLH2
Rotor diameter mm1200
Number of blades 8
Finishing blades mm452 x 155
Roughing blades mm480 x 245
Trowel disk diameter mm-
Blade rev rotation 1/min 134
Motor Honda petrol engine GX690
Motor Power kw (Hp)16.5 (22.5)
Starting Electric
Fuel consumption l/h6.3
Tank capacity l11
Dimensions
Leng x Wid x H mm2320 x 1240 x 980
Weight kg326
DUPLEX 1200/H _ Honda _ OVERLAP
HYDRAULIC CONTROLS with two joysticks. PATENTED HYDRAULIC adjustable blade inclination WITH SIMULTANEOUS INCLINATION OF BOTH ROTORS. Two work lights. Protective frame that can be opened from both sides - All parts are galvanised - 10 lt water tank with button-operated electric pump and continuous flow sprayers - Special galvanised steel battery case - Anti-corrosion 11 lt fuel tank - Stainless steel oil tank - Over-sized gears in steel box - Working hours display and RPM display
ModelDUPLEX 1200/H - Honda
Model CodePFDUPLH2
Rotor diameter mm1200
Number of blades 8
Finishing blades mm452 x 155
Roughing blades mm480 x 245
Trowel disk diameter mm-
Blade rev rotation 1/min 134
Motor Honda petrol engine GX690
Motor Power kw (Hp)16.5 (22.5)
Starting Electric
Fuel consumption l/h6.3
Tank capacity l11
Dimensions
Leng x Wid x H mm2320 x 1240 x 980
Weight kg326
