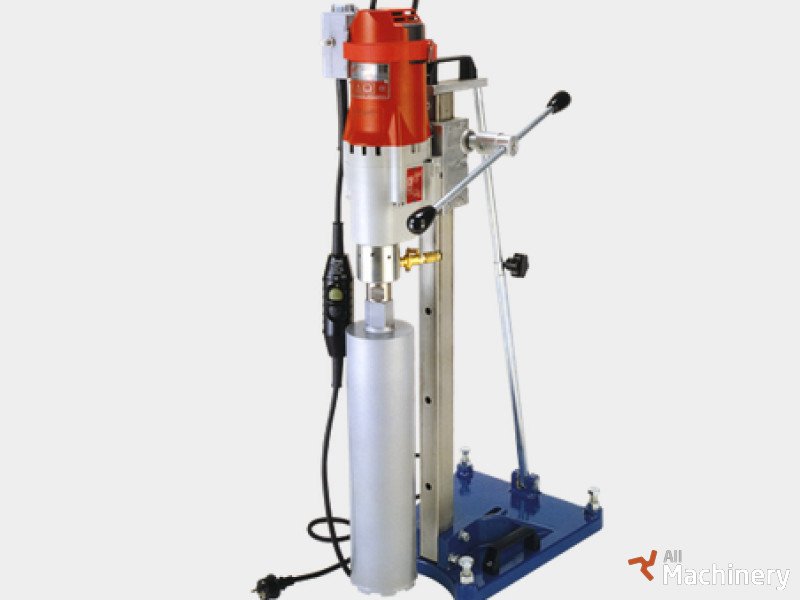

Machine on aluminium frame, sturdy and light (frame weight 13 kg, gearmotor weight 12 kg), with telescopic reinforcement and tilting pillar with fixed position for drilling at 45 degrees, on demand option of fixing with vacuum pump. Equipped with PRCD 30 mA switch, and clutch. ACCESSORIES: conveyor for water collection during core drilling - device for applying core drill to scaffolding.
ModelCL95 - 3-speed single-phase
Model Code PFCCL095W
Drilling diameter mm20 - 200
250 (on demand)
Motor Power Watt 2600
Voltage Volts230
Rotation speed rpm320/630/980
Bit coupling1'1/4
Weight kg25
CL95 _ 3-speed single-phase
Machine on aluminium frame, sturdy and light (frame weight 13 kg, gearmotor weight 12 kg), with telescopic reinforcement and tilting pillar with fixed position for drilling at 45 degrees, on demand option of fixing with vacuum pump. Equipped with PRCD 30 mA switch, and clutch. ACCESSORIES: conveyor for water collection during core drilling - device for applying core drill to scaffolding.
ModelCL95 - 3-speed single-phase
Model Code PFCCL095W
Drilling diameter mm20 - 200
250 (on demand)
Motor Power Watt 2600
Voltage Volts230
Rotation speed rpm320/630/980
Bit coupling1'1/4
Weight kg25
