Used on Yanmar engines: 3T84, 3T90L, 3T95, 3TN82, 4T95, 4T95T, 4TN98
Starter type:eccentric
Type of head:P
Voltage (V):12
Power (kW):2.5
Neck diameter D1 (mm):95
Pinion diameter D2 (mm):44
Number of teeth:15
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):240
Distance between pinion and flange L2 (mm):21
Distance drive cover L4 (mm):27
Number of holes:2
Position of fixation holes:40-10-00
Distances between fixation holes:120
Diameter mounting holes D3 (mm):13.5
Oil sealed:NO

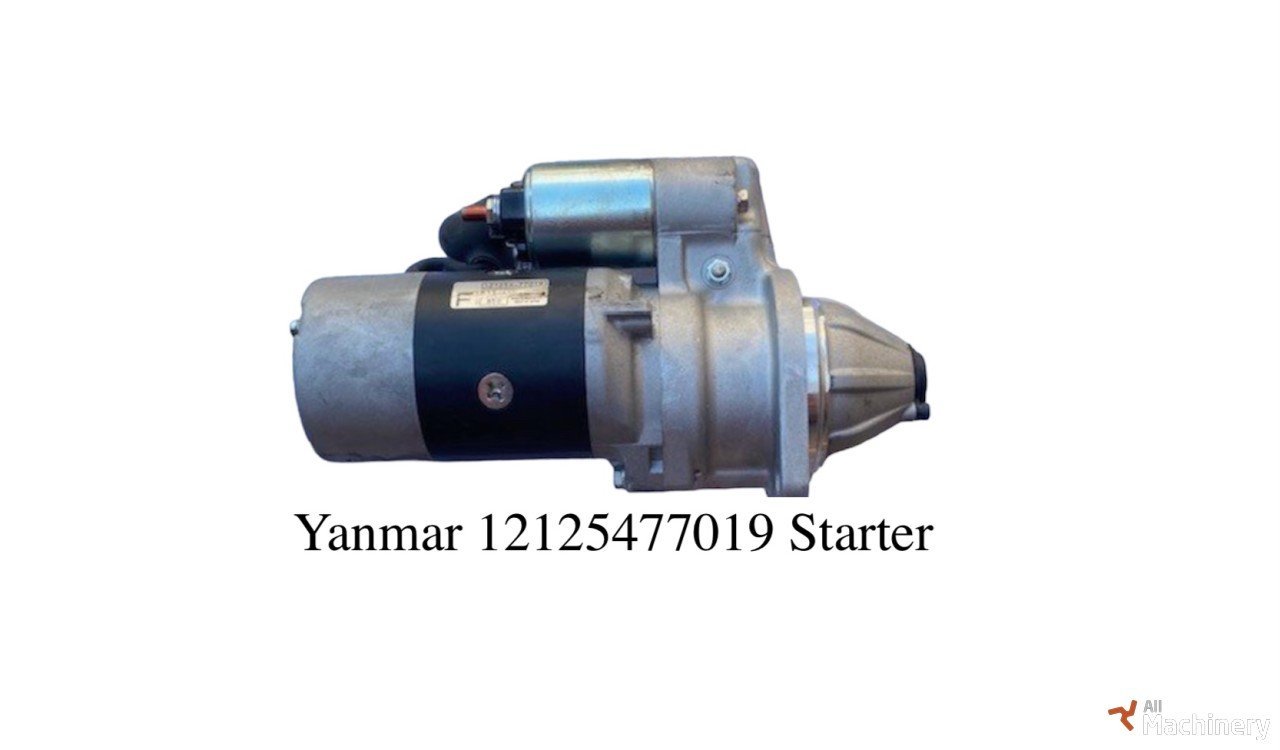

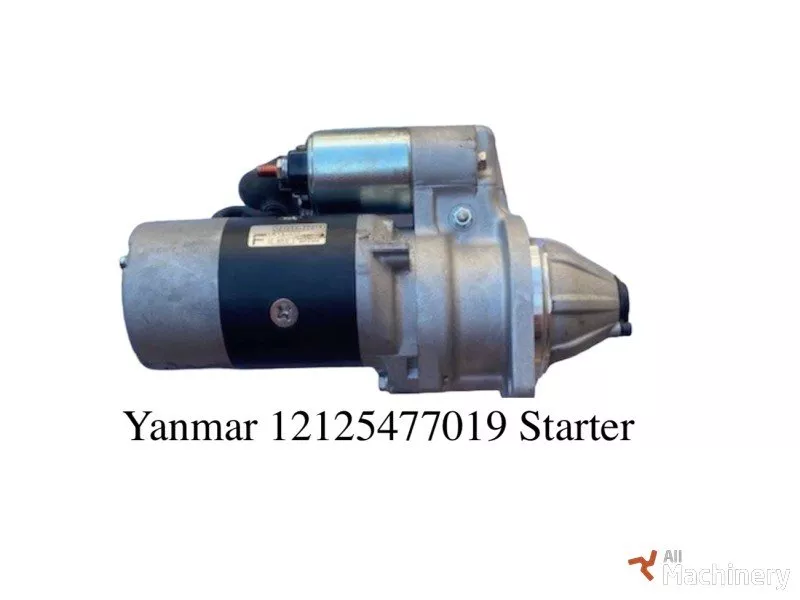

Yanmar 12125477019 Starter 12V, 2.5kW, 15 teeth
Hitachi S13-41D
John Deere AM875415
Mando MG120558
