Max. working height 18 m
Max. platform height 16 m
Max. outreach 11 m
Max. cage capacity 265 kg
Rotation lower boom ± 70°
Rotation jib ± 160°
Rotation 360°
Cage dimensions l x w x h 1.40 x 0.96 x 1.20 m
Transport height 3.70 m*
Total weight 9.5 - 10 tonne
Wheel-base 3.90 m
Standard Features:
•Synthetic cage
•Subframe is covered with anti-slip aluminium sheet material
•Lowered step covered with aluminium sheet material underneath the cage
•Drive away-signalisation
•1000 Volt insulation
•Buzzer in cabin
•Emergency control
•Painted in one colour
•According CE
• Start / Stop from the cage

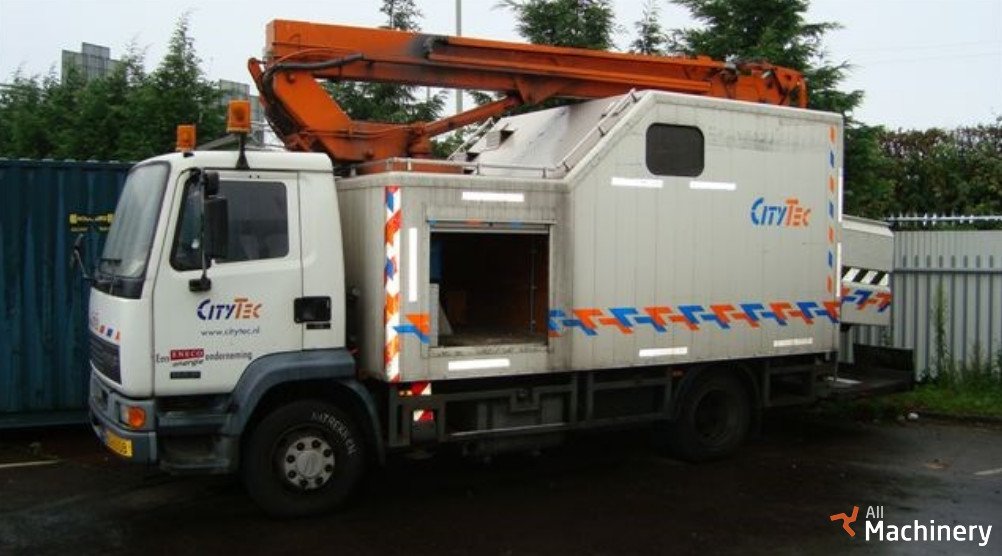

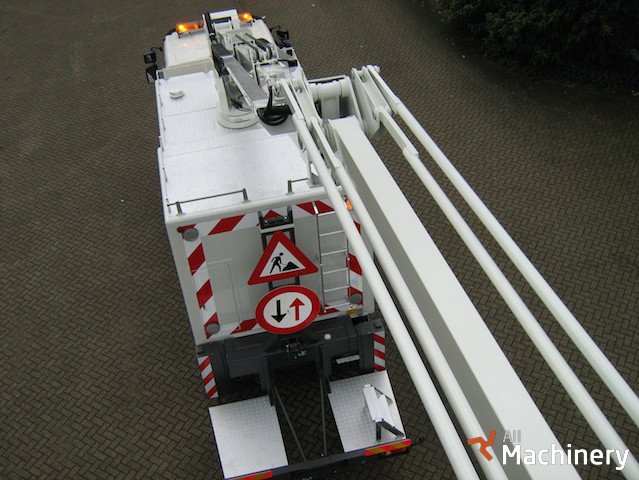

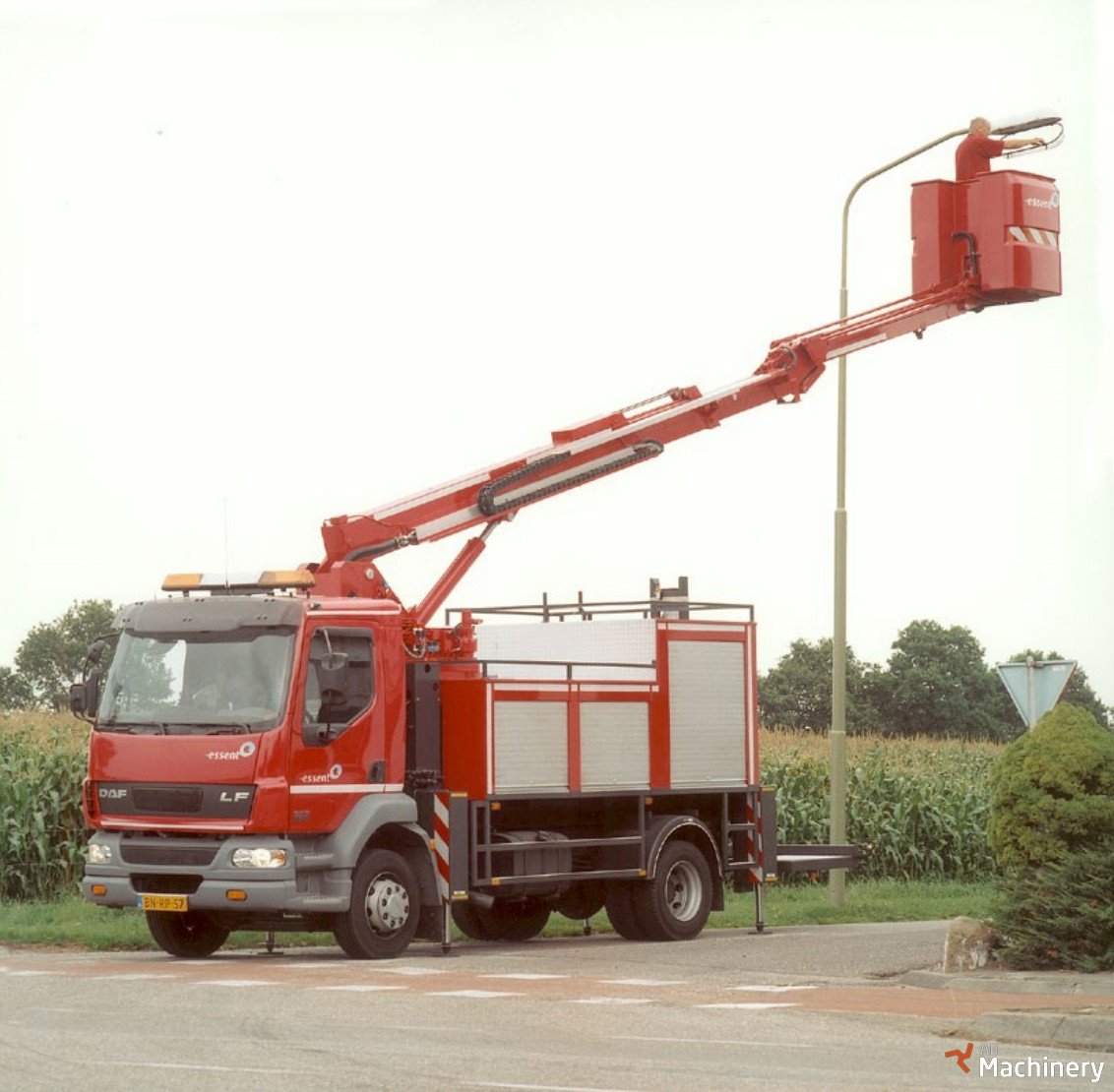

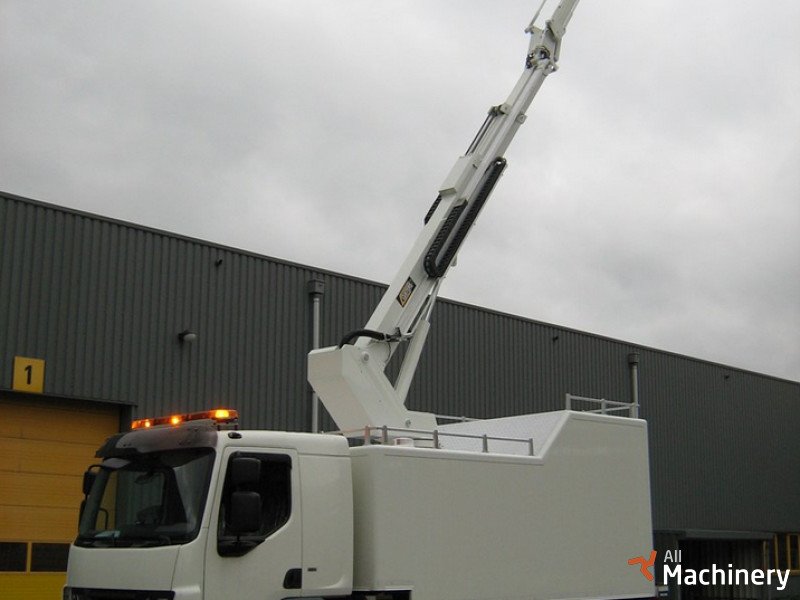

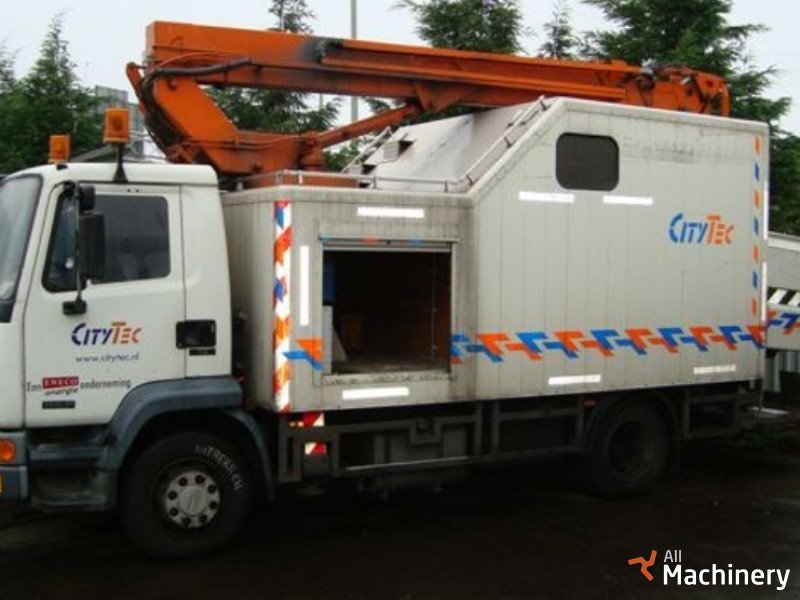

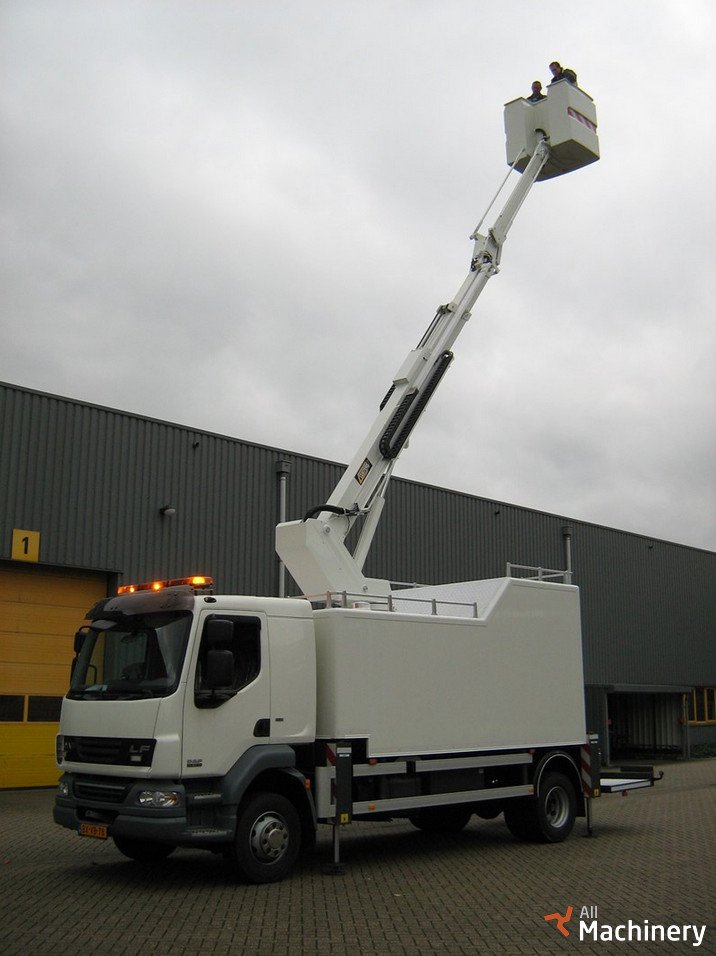

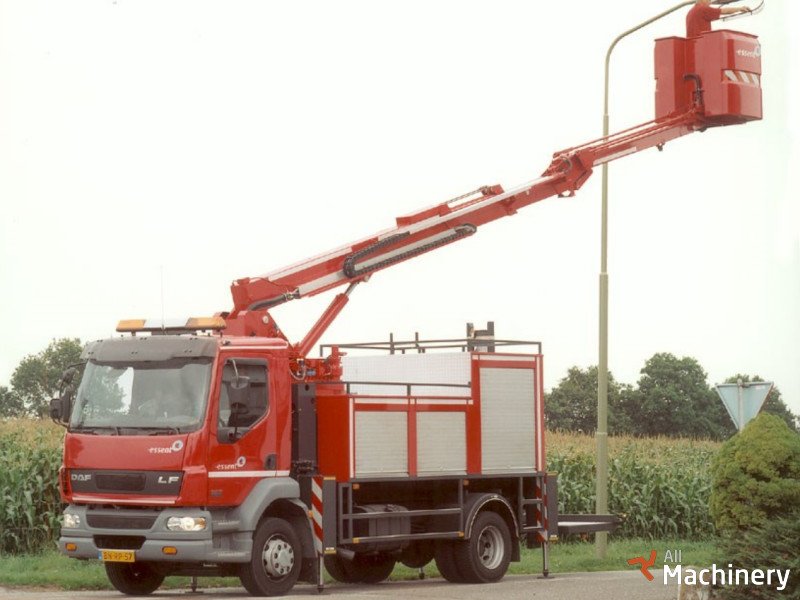

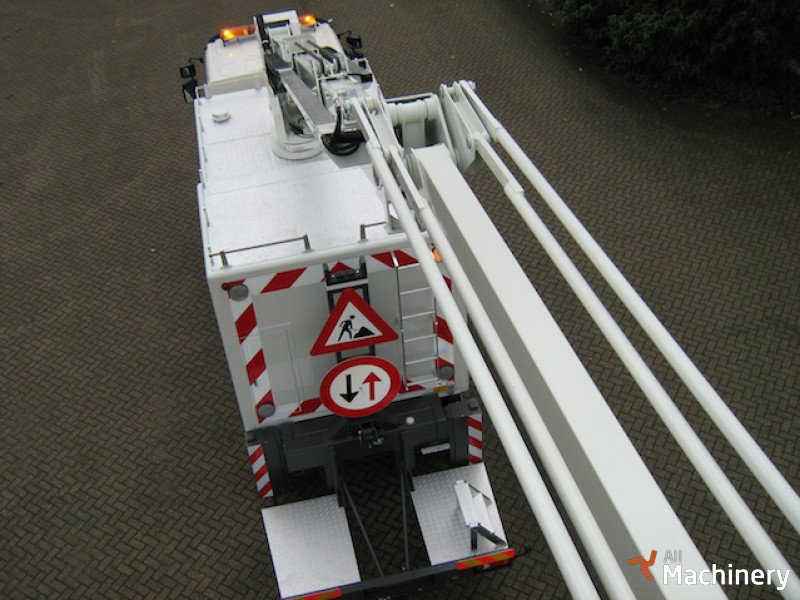

The truck-mounted aerial platform Taurus 265-18 has a maximum working height of 18.5m and a maximum load capacity of 265kg. Equipped with two telescopic booms and a jib, the Custers® truck-mounted articulated aerial platform 265-18 is highly suitable for municipal organisations and for energy, installation, painting, cleaning, rental, assembly, telecom and forestry companies.
This truck-mounted elevator is well-known for optimum stability and it is compact, manoeuvrable, fast and efficient in use.
