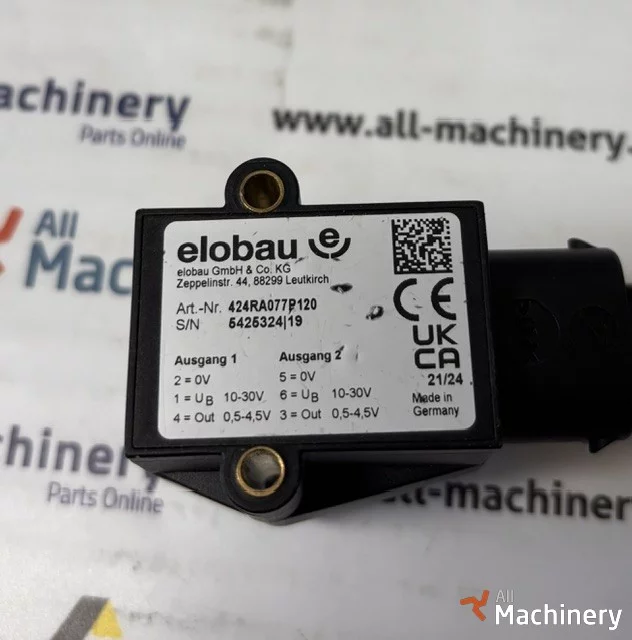

Elobau 424RA77P120 Angle Sensor – Contactless Hall-Effect Rotary Position Sensor
The Elobau 424RA77P120 is a genuine OEM contactless angle sensor designed for precise angular position measurement in mobile and industrial equipment. Part of the Elobau 424R Series, this sensor features redundant analog outputs, a 120° measuring range, and a contactless Hall-effect measuring principle, ensuring exceptional reliability and a long maintenance-free service life. It is commonly used on telehandlers, aerial work platforms, cranes, agricultural machinery, and construction equipment.
Product Details:
Part Number: 424RA77P120
Description: Absolute Angle Sensor
Manufacturer: Elobau
Series: 424R
Sensor Type: Contactless Hall-Effect Rotary Position Sensor
Measuring Range: 120°
Output Type: Dual Analog Voltage (0.5–4.5 V)
Supply Voltage: 10–30 V DC
Function: Measures the absolute angular position of rotating components and provides redundant analog output signals for machine control systems.
Technical Specifications:
Supply Voltage: 10–30 V DC
Output Signal: 0.5–4.5 V (dual redundant outputs)
Resolution: 0.1°
Technology: Contactless Hall-effect
Signal Update Rate: 2000 Hz
Protection Rating: IP67
Operating Temperature: -40°C to +85°C
Maximum Axial Shaft Load: 50 N
Maximum Radial Shaft Load: 100 N
Connector: Deutsch DT04-6P
Typical Linearity Error: ±0.2° to ±5° (depending on measurement angle)
Typical Applications:
The Elobau 424RA77P120 is commonly installed on:
Telehandlers
Scissor lifts
Boom lifts
Mobile cranes
Wheel loaders
Excavators
Agricultural machinery
Steering systems
Boom position monitoring
Hydraulic control systems
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
