Type of fuse Fuse strip/stud mounted fuse
Position of the fixing holes Under-Side
Diameter fixation hole 1 D2 (mm) 8.5
Diameter fixation hole 2 D3 (mm) 8.5
Total length L1 (mm) 81
Total width B1 (mm) 23
Total height H1 (mm) 10.5
Center distance between fixing holes C (mm) 62
Length of the housing L2 (mm) 38.5
Width of the housing B2 (mm) 23
Height of the housing H2 (mm) 10.5
Width of the connection B5 (mm) 19
Current I (A) 300
Self-extinguishing No
DIN norm CNN/ANN

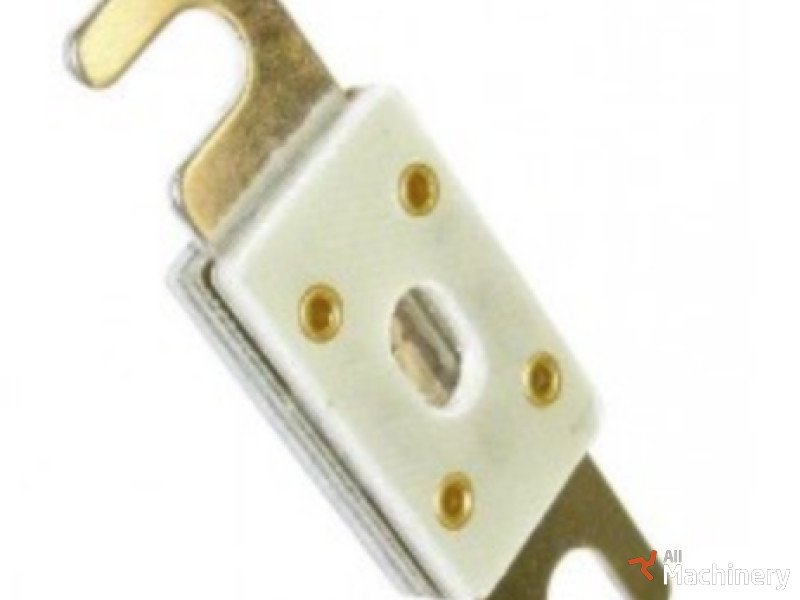

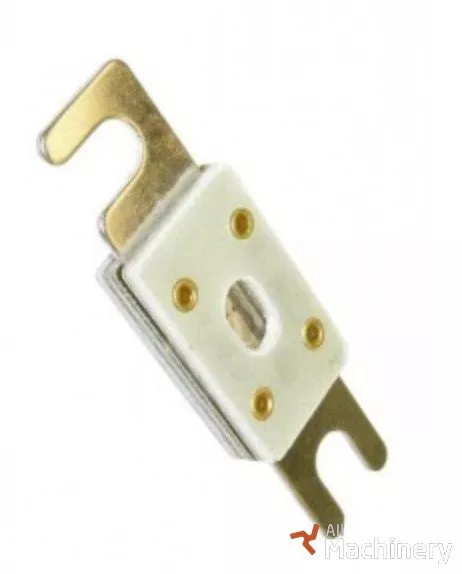

Fuse Genie 13104
Type of fuse Fuse strip/stud mounted fuse
Position of the fixing holes Under-Side
Diameter fixation hole 1 D2 (mm) 8.5
Diameter fixation hole 2 D3 (mm) 8.5
Total length L1 (mm) 81
Total width B1 (mm) 23
Total height H1 (mm) 10.5
Center distance between fixing holes C (mm) 62
Length of the housing L2 (mm) 38.5
Width of the housing B2 (mm) 23
Height of the housing H2 (mm) 10.5
Width of the connection B5 (mm) 19
Current I (A) 300
Self-extinguishing No
DIN norm CNN/ANN
