Shape of the contactor round shape 3
Maximum length of the contactor L1 (mm) 88
Maximum width of the contactor W1 (mm) 76
Maximum height of the contactor H1 (mm) 93
Maximum diameter of the contactor D1 (mm) 57
Number of solenoids 1
Voltage of the solenoid (V) 24
Type of current direct current
Current (A) 200
Resistance of the solenoid (Ohm) 85.2
Number of connections on the solenoid 2
Type of connection on the solenoid stud
Number of contact connections 2
Type of contact connection outer thread
Outer thread size M8
Pitch metric of outer thread (mm) 1.25
Right or left handed outer thread right hand outer thread
Fuse present NO
External diode present NO
External resistor present NO
Number of normal open contacts (NO) 1
Auxiliary contact present NO
Magnetic blow outs present NO
Top cover closed
Shortest center distance between mounting holes C1 (mm) 60
Shape mounting surface flat
Support present YES
Number of bends in the support 5
Should you require any further information, feel free to give a shout and we will be glad to assist you:

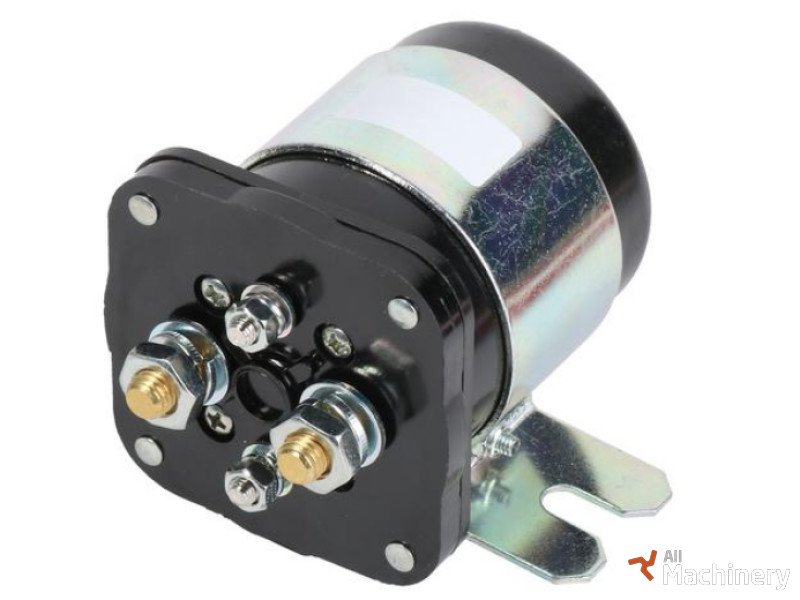

Contactor JLG 3740068 fits JLG Electric Scissor Lift Models CM1732, CM1432PLUS, CM1432, CM2033, CM2046, CM2546, CM2558
