Shape of the contactor square shape 1
Maximum length of the contactor L1 (mm) 61
Maximum width of the contactor W1 (mm) 52
Maximum height of the contactor H1 (mm) 122
Number of solenoids 1
Voltage of the solenoid (V) 48
Type of current direct current
Current (A) 150
Resistance of the solenoid (Ohm) 100.8
Number of connections on the solenoid 4
Type of connection on the solenoid blade 6,3mm
Number of contact connections 2
Type of contact connection outer thread
Outer thread size M8
Pitch metric of outer thread (mm) 1.25
Right or left handed outer thread right hand outer thread
Fuse present NO
External diode present NO
External resistor present NO
Number of normal open contacts (NO) 1
Auxiliary contact present NO
Magnetic blow outs present YES
Top cover closed
Shortest center distance between mounting holes C1 (mm) 16
Longest center distance between mounting holes C2 (mm) 25.4
Number of closed holes 10
Shape mounting surface flat
Support present NO
Weight (kg) 0.68

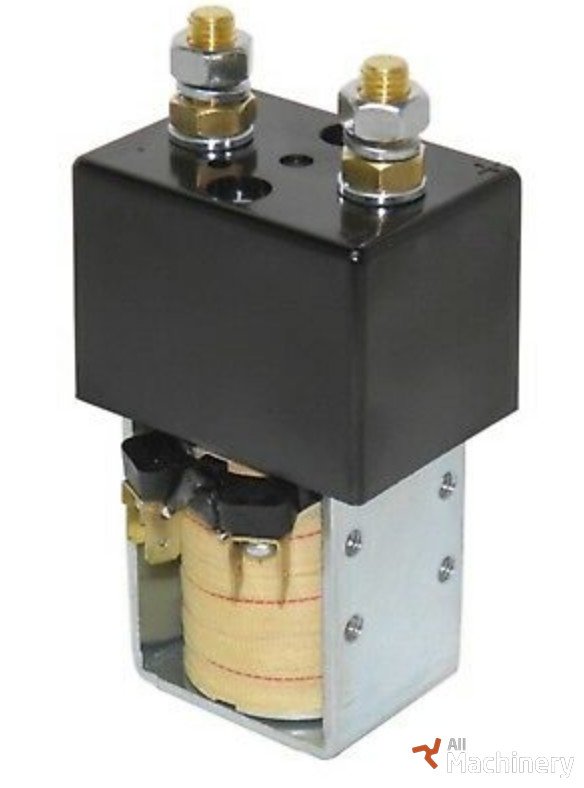

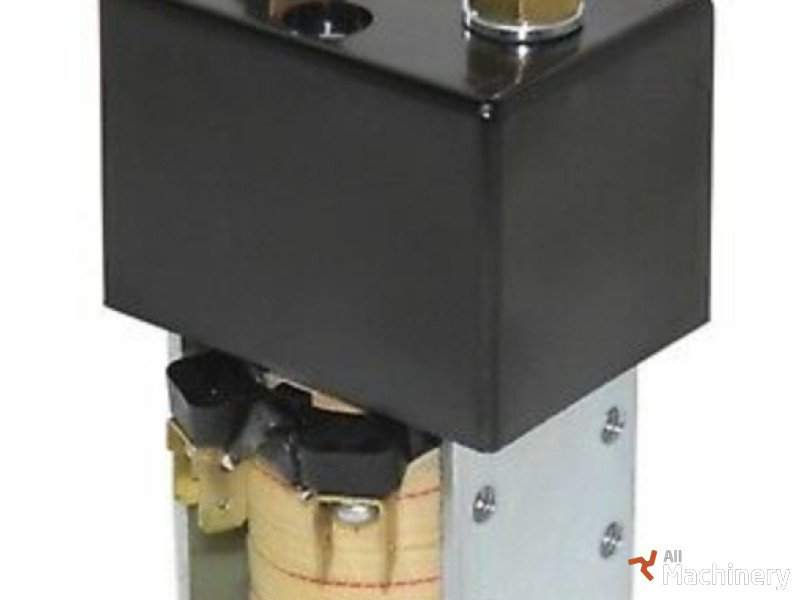

Contactor 48V JLG 7013303 fits JLG 3369E, JLG 3969E, JLG 45E and others.
Shape of the contactor square shape 1
Maximum length of the contactor L1 (mm) 61
Maximum width of the contactor W1 (mm) 52
Maximum height of the contactor H1 (mm) 122
Number of solenoids 1
Voltage of the solenoid (V) 48
Type of current direct current
Current (A) 150
Resistance of the solenoid (Ohm) 100.8
Number of connections on the solenoid 4
Type of connection on the solenoid blade 6,3mm
Number of contact connections 2
Type of contact connection outer thread
Outer thread size M8
Pitch metric of outer thread (mm) 1.25
Right or left handed outer thread right hand outer thread
Fuse present NO
External diode present NO
External resistor present NO
Number of normal open contacts (NO) 1
Auxiliary contact present NO
Magnetic blow outs present YES
Top cover closed
Shortest center distance between mounting holes C1 (mm) 16
Longest center distance between mounting holes C2 (mm) 25.4
Number of closed holes 10
Shape mounting surface flat
Support present NO
Weight (kg) 0.68
