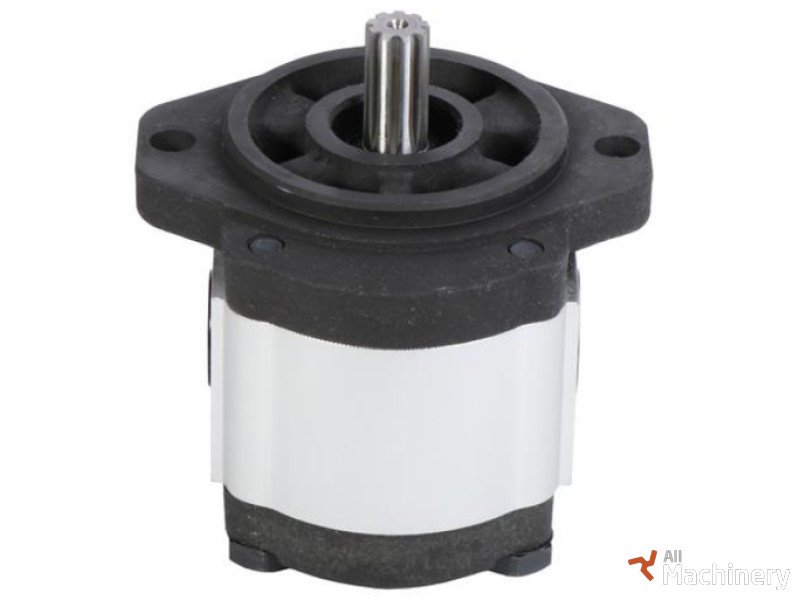

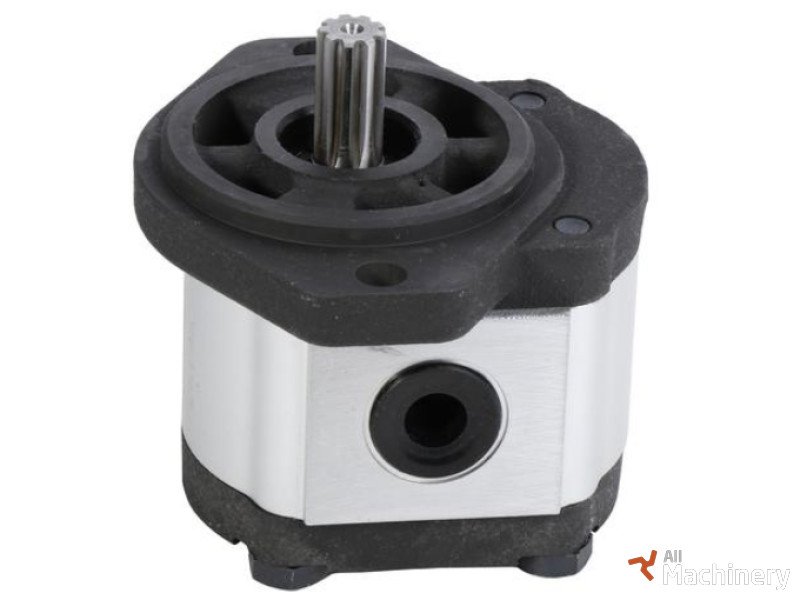

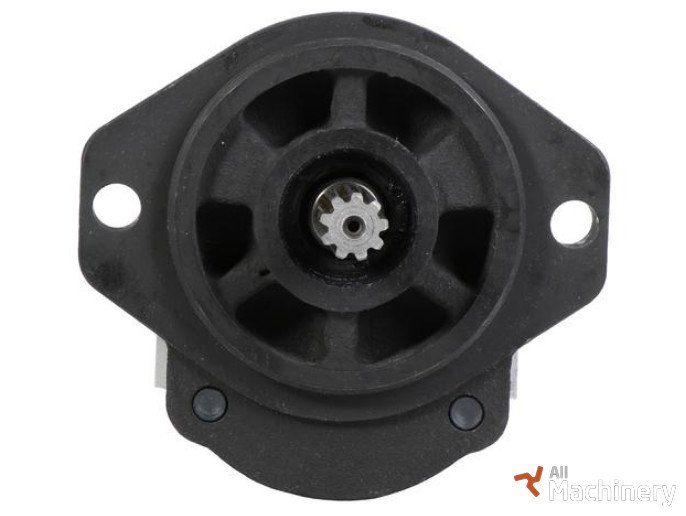

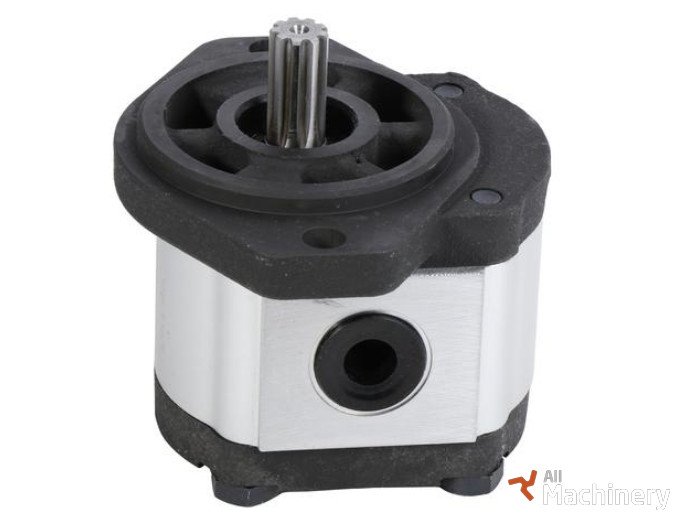

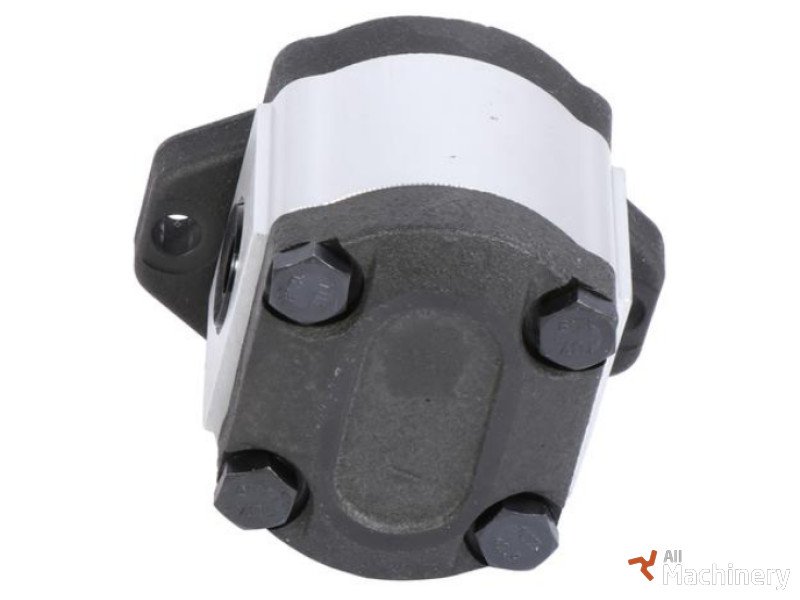

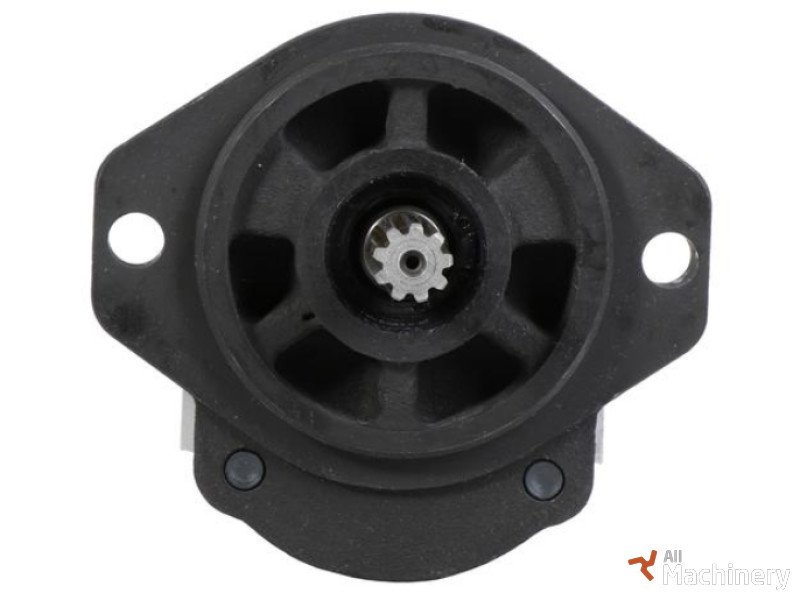

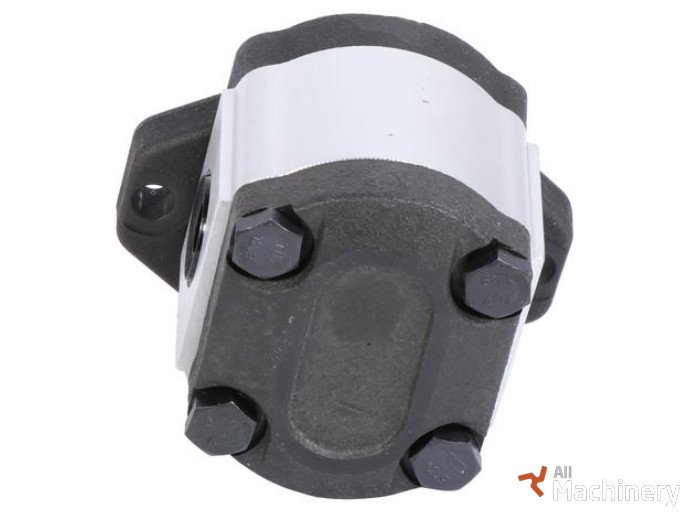

GENIE 96193GT Working platform electric parts (2019 year)

Fits GENIE Vertical Mast Lift Models GR-08, GR-12, GR-15, GR-20, GRC-12, WS-12R, QS-12W, QS-15R, QS-15W, QS-20R and QS-20W. Fits GENIE Scissor Lift Models GS-1530, GS-1532, GS-1930, GS-1932, GS-2032, GS-2046, GS-2632, GS-2646, GS-2646 AV, GS-2646 AV35, GS-3232 and GS-3246. Fits GENIE Towed Articulating Boom Lift Models TMZ-50/30 and TZ-50/30. Fits Articulating Boom Lift Models Z-33/18, Z-40/23N and Z-40/23N RJ.

Type of pump gearpump
Number of elements 1
Type of flange A
Diameter of flange mounting holes D1 (mm) 11
Center distance of mounting holes C1 (mm) 106
Total length of pump L1 (mm) 123
Neck diameter D2 (mm) 82.4
Type of shaft D
Distance from flange to end L2 (mm) 30
Diameter of shaft D3 (mm) 15.3
Number of splines 9
Direction of rotation COUNTERCLOCKWISE
Position of suction port 1st element, only for pump type T POS-CO1 SIDE
Type of connections suction port1st element, only for pump type T TY-COa TYPE E
Thread type suction side of 1st element TA-Pa 7/8 UNF
Position of pressure 1st element, only for pump type T POS-CO2 SIDE
Type of connections pressure 1st element, only for pump type T TY-COb E
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Flow control valve present NO
Material of the housing aluminium
