Number of connections 3
Type of the connection screw step
Current (A) 10
Minimum voltage U1 (V) 125
Maximum voltage U2 (V) 250
Actuator present YES
Type of the actuator round
Length of the actuator L1 (mm) 17
Built-in diameter D1 (mm) 12
Length thread panelmount L3 (mm) 12
Type of thread 15/32
Pitch (inch) 32
Right or left handed thread right handed thread
Total length of the toggle switch L4 (mm) 28.7
Total width of the toggle switch W2 (mm) 15.6
Total height of the toggle switch H1 (mm) 58.5
Sort of switch single pole
Type of the switch (on)-off-(on)
Material of the housing plastic
Material of the actuator metal
IP value/protection 67
Cap present NO
Symbol present no
Light present no

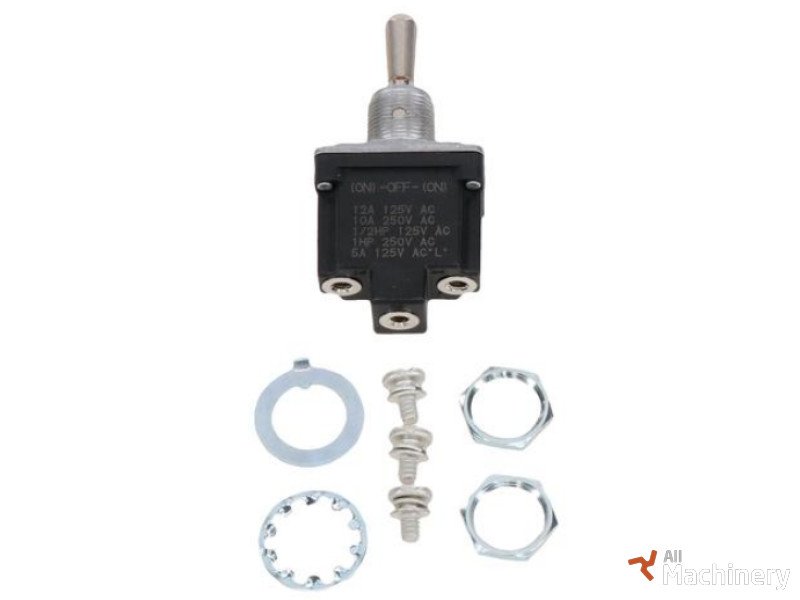

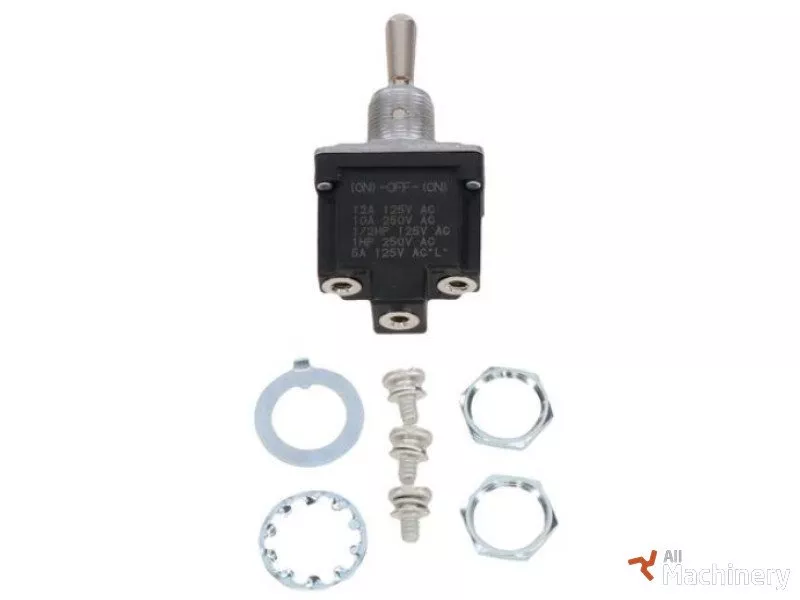

Toggle switch Haulotte 21531
Number of connections 3
Type of the connection screw step
Current (A) 10
Minimum voltage U1 (V) 125
Maximum voltage U2 (V) 250
Actuator present YES
Type of the actuator round
Length of the actuator L1 (mm) 17
Built-in diameter D1 (mm) 12
Length thread panelmount L3 (mm) 12
Type of thread 15/32
Pitch (inch) 32
Right or left handed thread right handed thread
Total length of the toggle switch L4 (mm) 28.7
Total width of the toggle switch W2 (mm) 15.6
Total height of the toggle switch H1 (mm) 58.5
Sort of switch single pole
Type of the switch (on)-off-(on)
Material of the housing plastic
Material of the actuator metal
IP value/protection 67
Cap present NO
Symbol present no
Light present no
