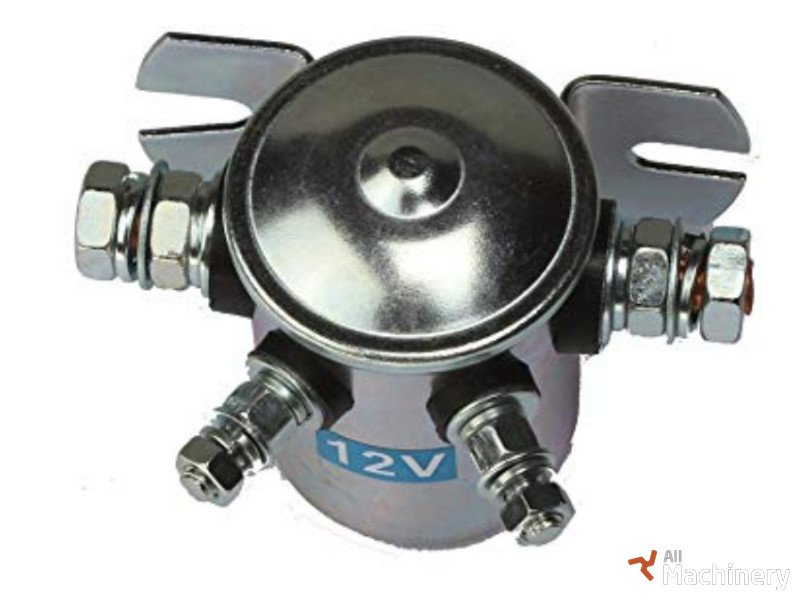

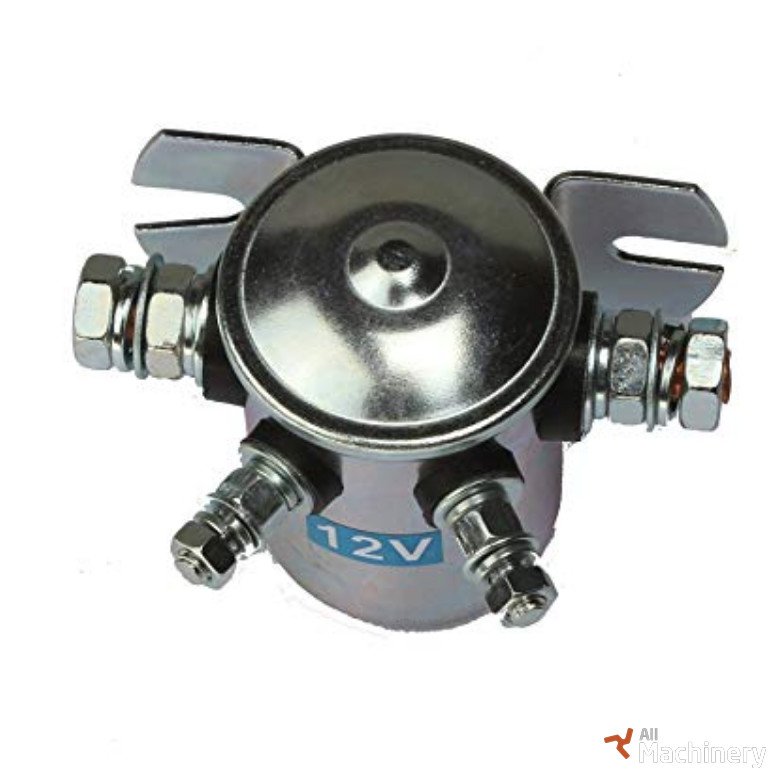

JLG 3740013 fits to aerial work platforms 80HX, 110HX, and etc.
Shape of the contactor round shape 5
Maximum length of the contactor L1 (mm) 88
Maximum width of the contactor W1 (mm) 56
Maximum height of the contactor H1 (mm) 67
Maximum diameter of the contactor D1 (mm) 46
Number of solenoids 1
Voltage of the solenoid (V) 12
Type of current direct current
Resistance of the solenoid (Ohm) 15.3
Number of connections on the solenoid 2
Type of connection on the solenoid stud
Number of contact connections 2
Type of contact connection outer thread
Outer thread size 5/16
Type of outer thread UNF
Pitch inch of outer thread 24
Right or left handed outer thread right hand outer thread
Fuse present NO
External diode present NO
External resistor present NO
Number of normal open contacts (NO) 1
Auxiliary contact present NO
Magnetic blow outs present NO
Top cover closed
Shortest center distance between mounting holes C1 (mm) 54
Shape mounting surface flat
Support present NO
