Type of automatic fuse fuse with push button
Total length L1 (mm) 35
Total width B1 (mm) 14.5
Total height H1 (mm) 58
Length of the housing L2 (mm) 35
Width of the housing B2 (mm) 14.5
Height of the housing H2 (mm) 34
Diameter of the push button D3 (mm) 7.4
Number of connections AT-CO 2
Type of connection TY-CO A
Width connection tip B3 (mm) 6.3
Height connection tip H3 (mm) 11.6
Bracket NO
Current 1 I1 (A) 20
Voltage DC (V) 32
Voltage AC (V) 250
Built-in thread type TA1 M11
Type of fuse SO-ZE thermal
Cover KAP NO
Should you require any further information, feel free to give a shout and we will be glad to assist you +370 699 82996

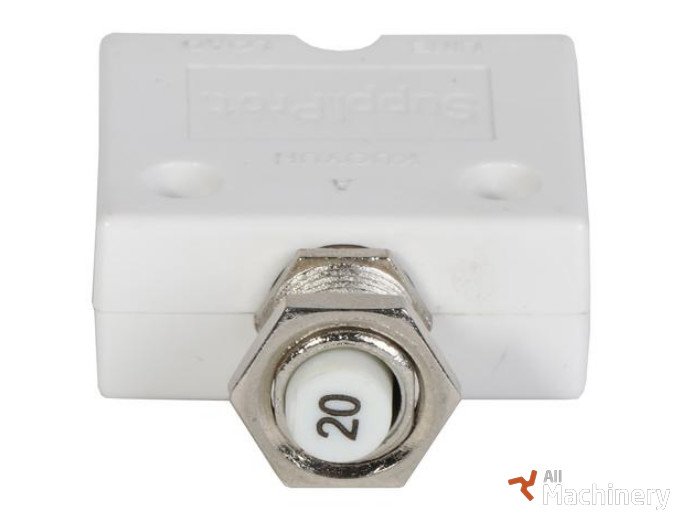

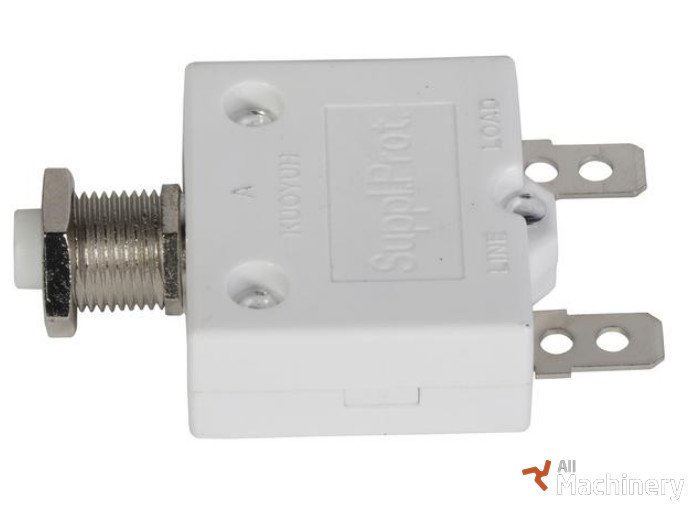

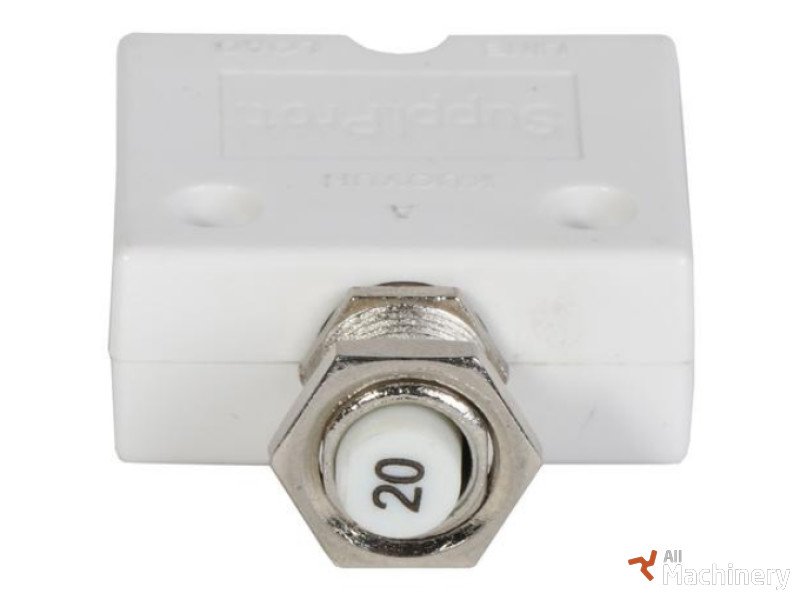

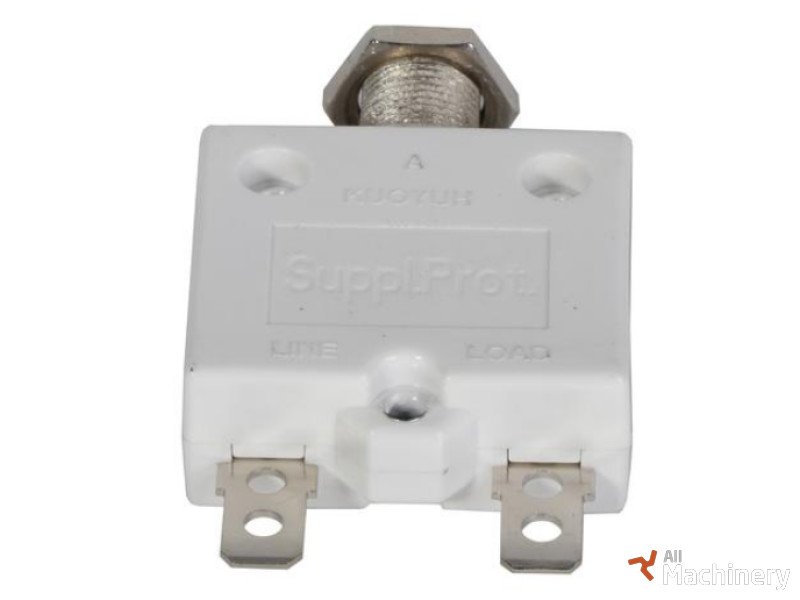

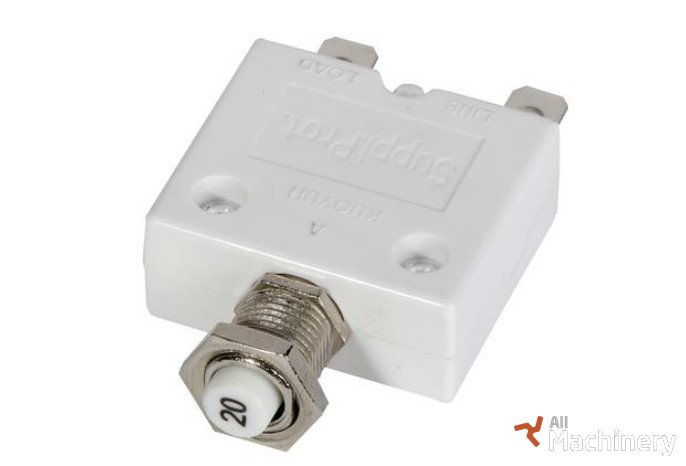

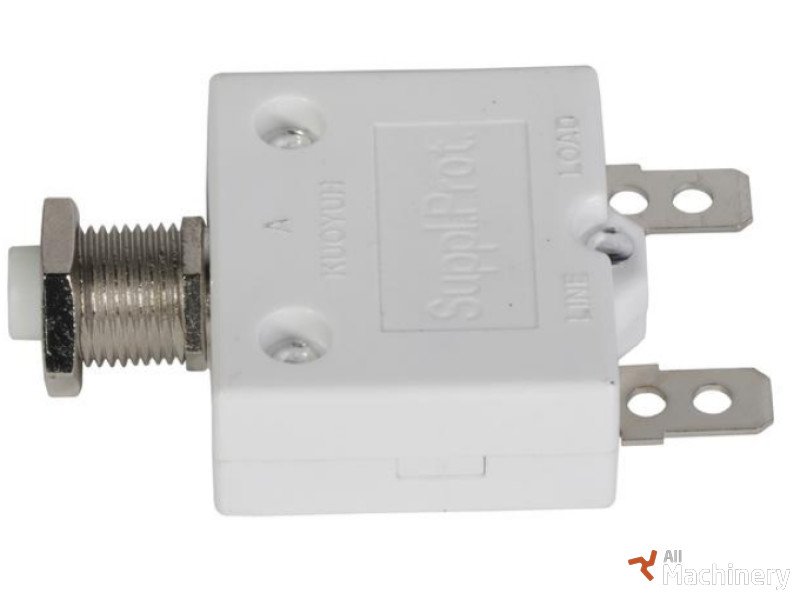

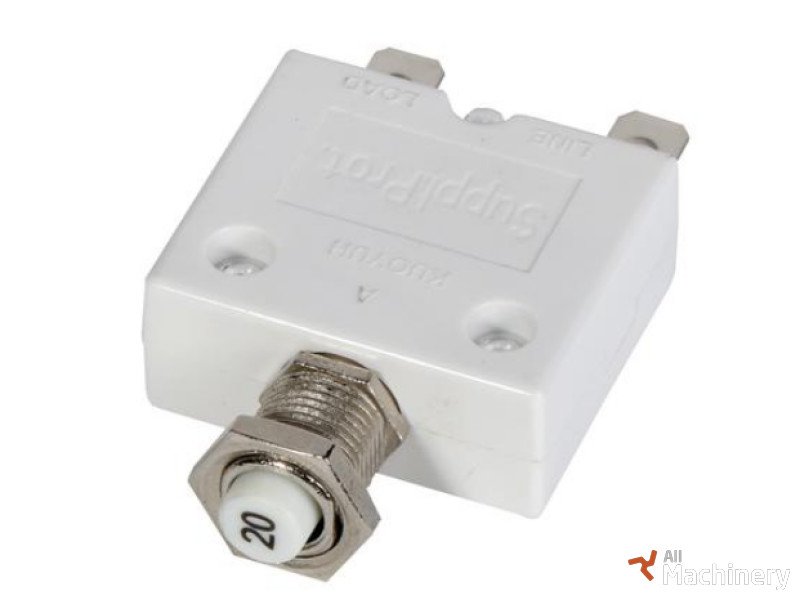

Automatic fuse Snorkel 3040068
Type of automatic fuse fuse with push button
Total length L1 (mm) 35
Total width B1 (mm) 14.5
Total height H1 (mm) 58
Length of the housing L2 (mm) 35
Width of the housing B2 (mm) 14.5
Height of the housing H2 (mm) 34
Diameter of the push button D3 (mm) 7.4
Number of connections AT-CO 2
Type of connection TY-CO A
Width connection tip B3 (mm) 6.3
Height connection tip H3 (mm) 11.6
Bracket NO
Current 1 I1 (A) 20
Voltage DC (V) 32
Voltage AC (V) 250
Built-in thread type TA1 M11
Type of fuse SO-ZE thermal
Cover KAP NO
