Type of pump gearpump
Number of elements 1
Type of flange type B
Center distance of mounting holes C1 (mm) 106.4
Total length of pump L1 (mm) 152
Neck diameter D2 (mm) 82.55
Type of shaft type D
Distance from flange to end L2 (mm) 31.8
Diameter of shaft D3 (mm) 15.2
Number of splines 9
Direction of rotation clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type J
Thread type suction side of 1st element TA-Pa 1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type J
Thread type pressure side of 1st element TA-Pb 1 1/16 UNF
Flow control valve present NO
Material of the housing aluminium
www.machinerypartsonlin.eu
www.machinerypartsonline.com.au

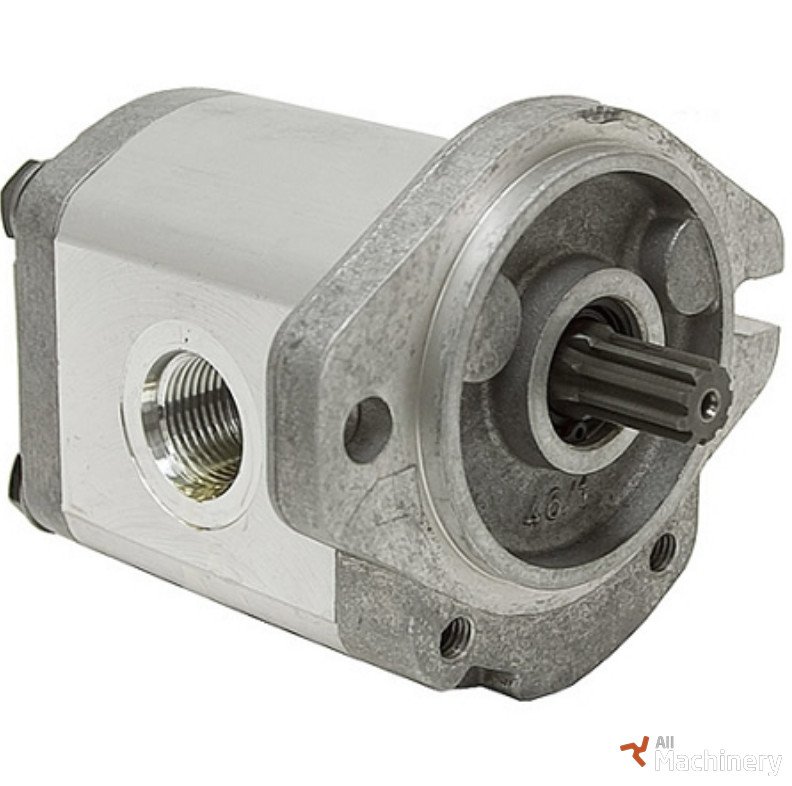

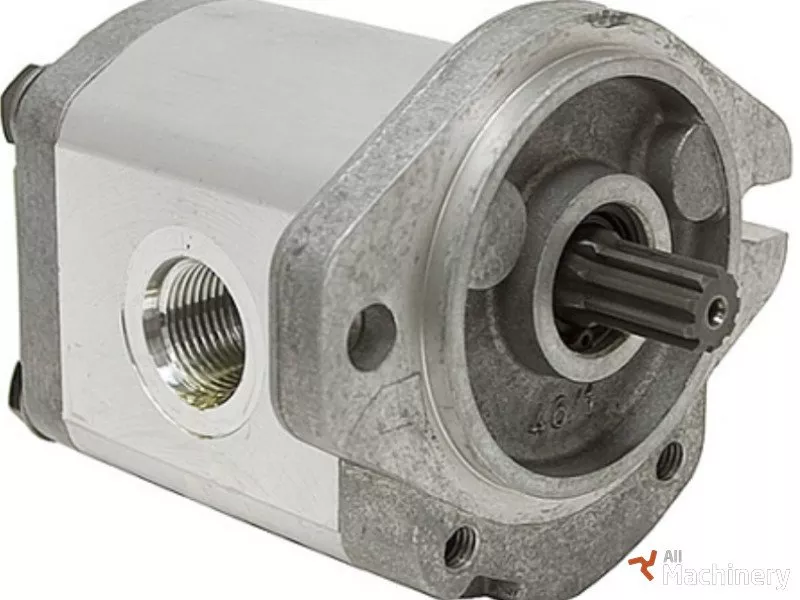

Hydraulic pump Genie 53959
Type of pump gearpump
Number of elements 1
Type of flange type B
Center distance of mounting holes C1 (mm) 106.4
Total length of pump L1 (mm) 152
Neck diameter D2 (mm) 82.55
Type of shaft type D
Distance from flange to end L2 (mm) 31.8
Diameter of shaft D3 (mm) 15.2
Number of splines 9
Direction of rotation clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type J
Thread type suction side of 1st element TA-Pa 1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type J
Thread type pressure side of 1st element TA-Pb 1 1/16 UNF
Flow control valve present NO
Material of the housing aluminium
