Type of pump gearpump
Number of elements 1
Type of flange type B
Center distance of mounting holes C1 (mm) 106.4
Total length of pump L1 (mm) 142
Neck diameter D2 (mm) 82.5
Type of shaft type D
Distance from flange to end L2 (mm) 32
Diameter of shaft D3 (mm) 15.3
Number of splines 9
Direction of rotation clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type E
Thread type suction side of 1st element TA-Pa 1 1/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type E
Thread type pressure side of 1st element TA-Pb 7/8 UNF
Flow control valve present NO
Material of the housing aluminium
www.machinerypartsonline,eu
www.machinerypartsonline.com.au

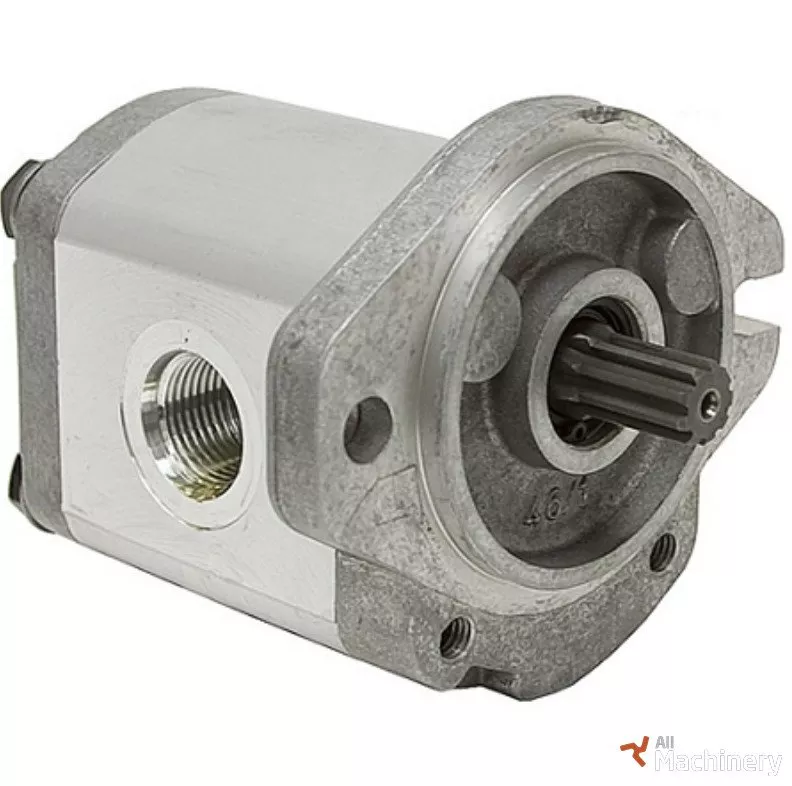

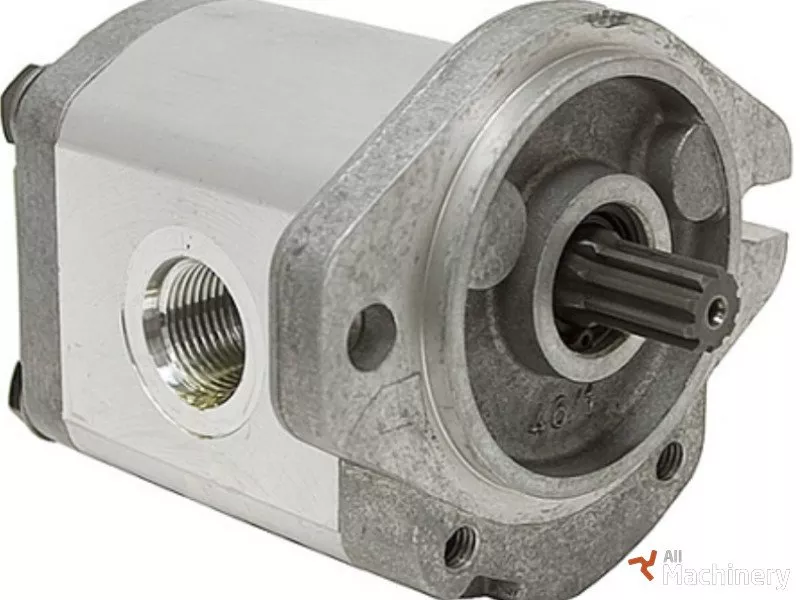

Hydraulic pump Genie 53961
Type of pump gearpump
Number of elements 1
Type of flange type B
Center distance of mounting holes C1 (mm) 106.4
Total length of pump L1 (mm) 142
Neck diameter D2 (mm) 82.5
Type of shaft type D
Distance from flange to end L2 (mm) 32
Diameter of shaft D3 (mm) 15.3
Number of splines 9
Direction of rotation clockwise
Position of suction port 1st element, only for pump type T POS-CO1 side
Type of connections suction port1st element, only for pump type T TY-COa type E
Thread type suction side of 1st element TA-Pa 1 1/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2 side
Type of connections pressure 1st element, only for pump type T TY-COb type E
Thread type pressure side of 1st element TA-Pb 7/8 UNF
Flow control valve present NO
Material of the housing aluminium
