Type of pump gearpump
Number of elements 1
Type of flange C
Diameter of flange mounting holes D1 (mm) 8.5
Total length of pump L1 (mm) 113.5
Neck diameter D2 (mm) 32
Type of shaft D
Distance from flange to end L2 (mm) 27
Diameter of shaft D3 (mm) 12.2
Number of splines 9
Direction of rotation COUNTERCLOCKWISE
Position of suction port 1st element, only for pump type T POS-CO1 SIDE
Type of connections suction port1st element, only for pump type T TY-COa TYPE E
Thread type suction side of 1st element TA-Pa 7/8 UNF
Position of pressure 1st element, only for pump type T POS-CO2 SIDE
Type of connections pressure 1st element, only for pump type T TY-COb E
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Flow control valve present NO
Material of the housing aluminium
Should you require any further information, feel free to give a shout and we will be glad to assist you:

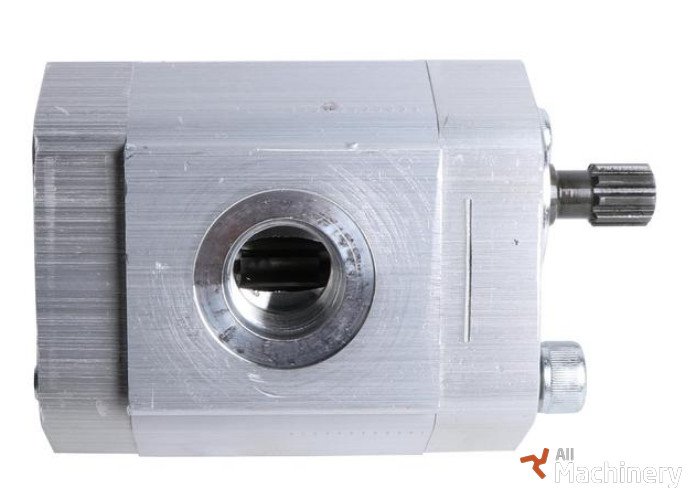

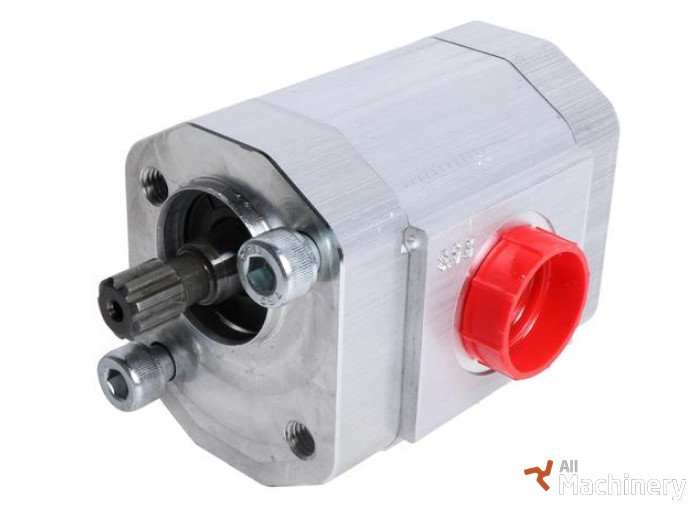

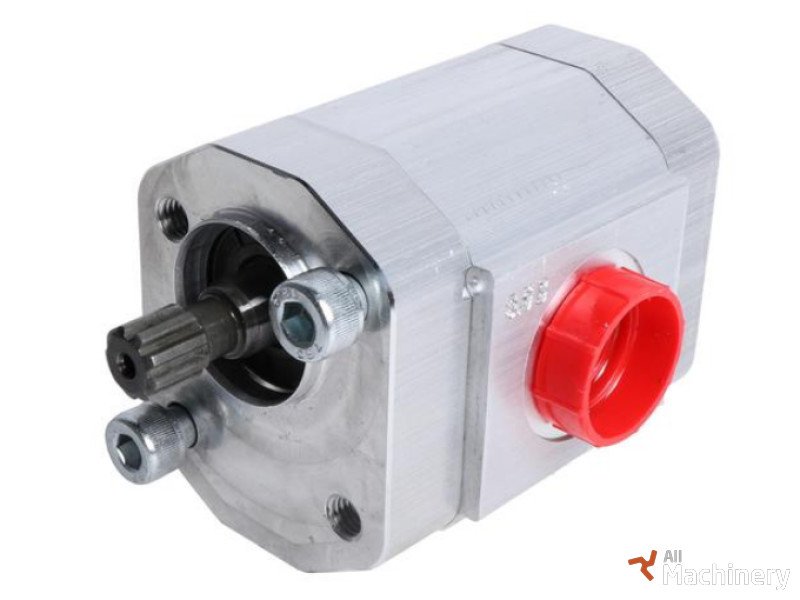

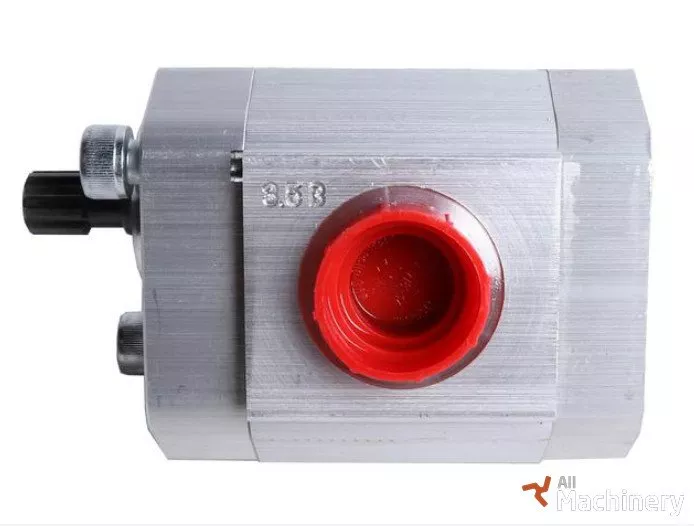

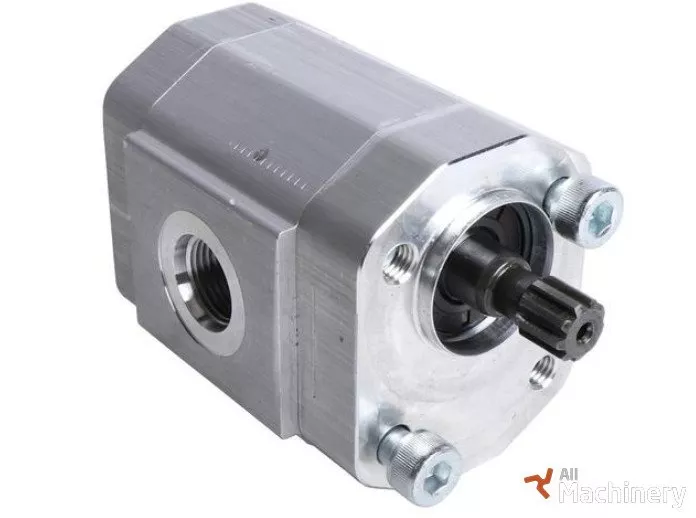

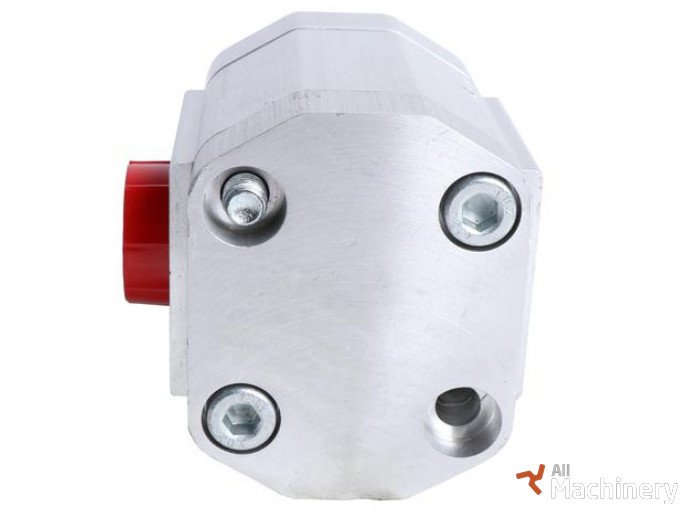

Hydraulic pump Skyjack 169261 fits SJIII3215, SJIII3219, SJIII3220, SJIII3226, SJIII4620, SJIII4626, SJIII4632
Type of pump gearpump
Number of elements 1
Type of flange C
Diameter of flange mounting holes D1 (mm) 8.5
Total length of pump L1 (mm) 113.5
Neck diameter D2 (mm) 32
Type of shaft D
Distance from flange to end L2 (mm) 27
Diameter of shaft D3 (mm) 12.2
Number of splines 9
Direction of rotation COUNTERCLOCKWISE
Position of suction port 1st element, only for pump type T POS-CO1 SIDE
Type of connections suction port1st element, only for pump type T TY-COa TYPE E
Thread type suction side of 1st element TA-Pa 7/8 UNF
Position of pressure 1st element, only for pump type T POS-CO2 SIDE
Type of connections pressure 1st element, only for pump type T TY-COb E
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Flow control valve present NO
Material of the housing aluminium
