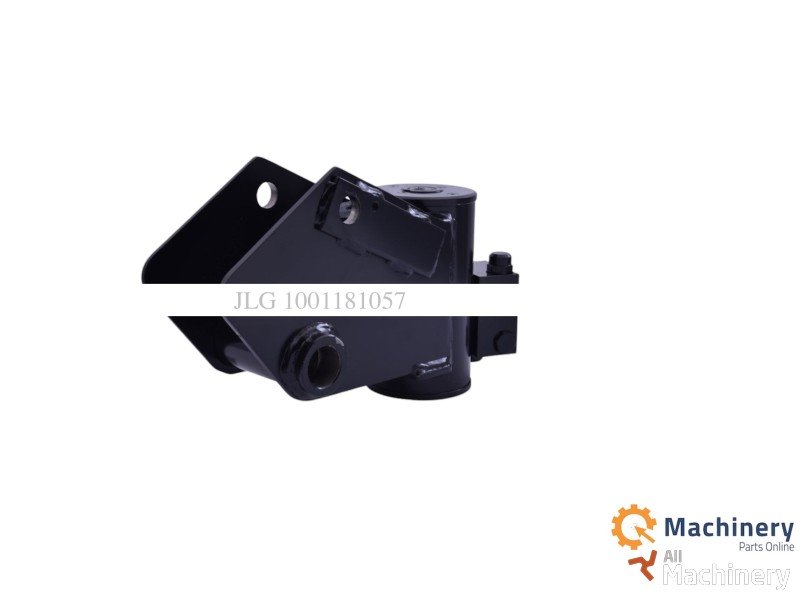

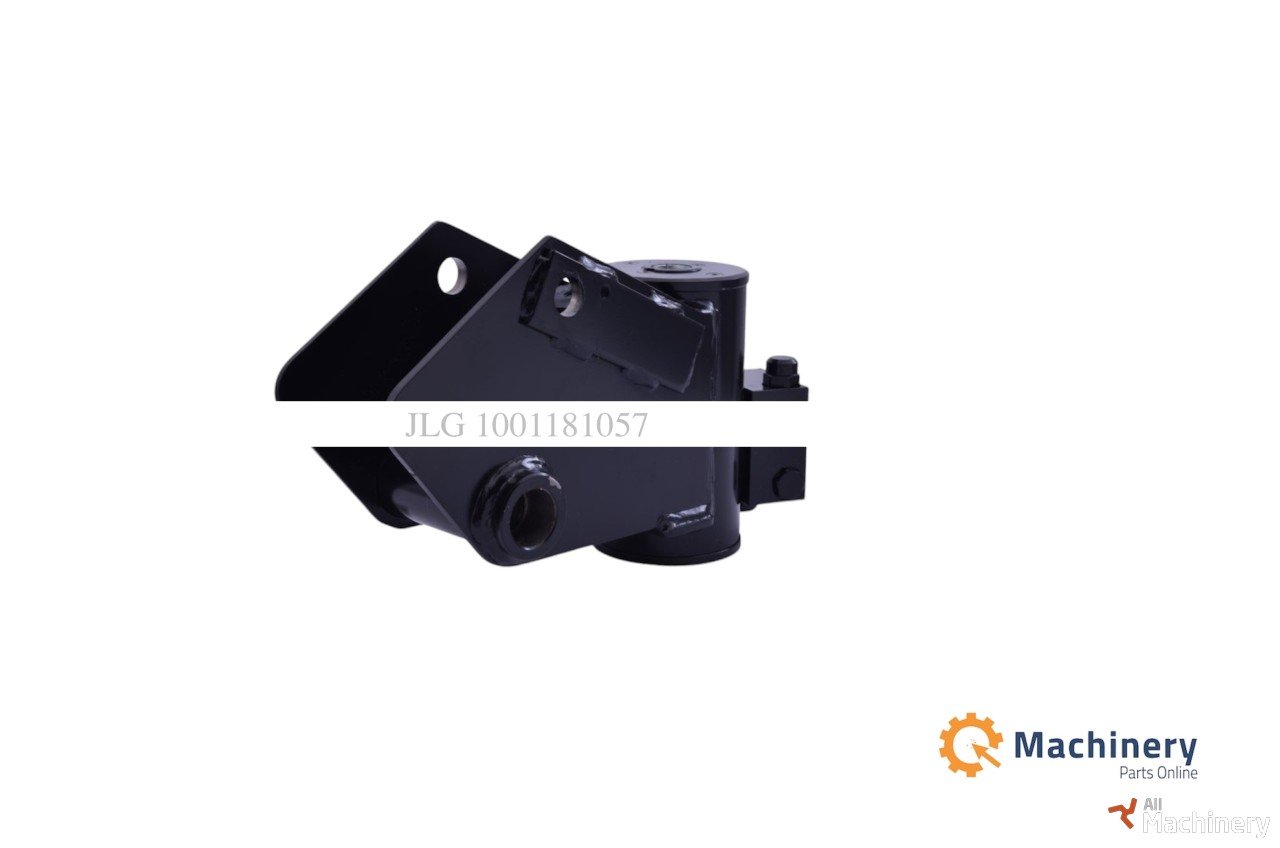

JLG 600 SERIES PLATFORM ROTATION ACTUATOR JLG 1001181057
Type:support with mounting in the width
Total length L1 (mm):423
Total width W1 (mm):156
Total height H1 (mm):256
Length without valve L2 (mm):363.5
Height actuator H2 (mm):215
Diameter actuator D1 (mm):107.4
Inner diameter D2 (mm):25
Number of holes in the top flange:8
Thread size top flange TA1:3/8
Type of thread top flange TA1:UNC
Pitch inch TA1:16
Right or left handed thread TA1:right-handed
Unit of thread TA1:imperial
Pitch circle diameter mounting top flange D7 (mm):66.68
Effective pressure (Bar):207
Largest diameter mounting hole D3 (mm):38.1
Smallest diameter mounting hole D4 (mm):25.4
Largest thickness mounting hole TH1 (mm):156
Smallest thickness mounting hole TH2 (mm):134
Longest centerdistance mountingholes C1 (mm):142.75
