Type of pump:gearpump
Number of elements:1
Type of flange:type A
Diameter of flange mounting holes D1 (mm):11.2
Center distance of mounting holes flange C1 (mm):106.5
Total length of pump L1 (mm):125
Neck diameter D2 (mm):82.5
Type of shaft:type D
Distance from flange to end L2 (mm):31.7
Diameter of shaft D3 (mm):15.2
Number of splines:9
Direction of rotation:counterclockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type E
Thread type suction side of 1st element TA-Pa:1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type E
Thread type pressure side of 1st element TA-Pb:7/8 UNF
Flow control valve present:NO
Material of the housing:aluminium
Weight (kg):3.608
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

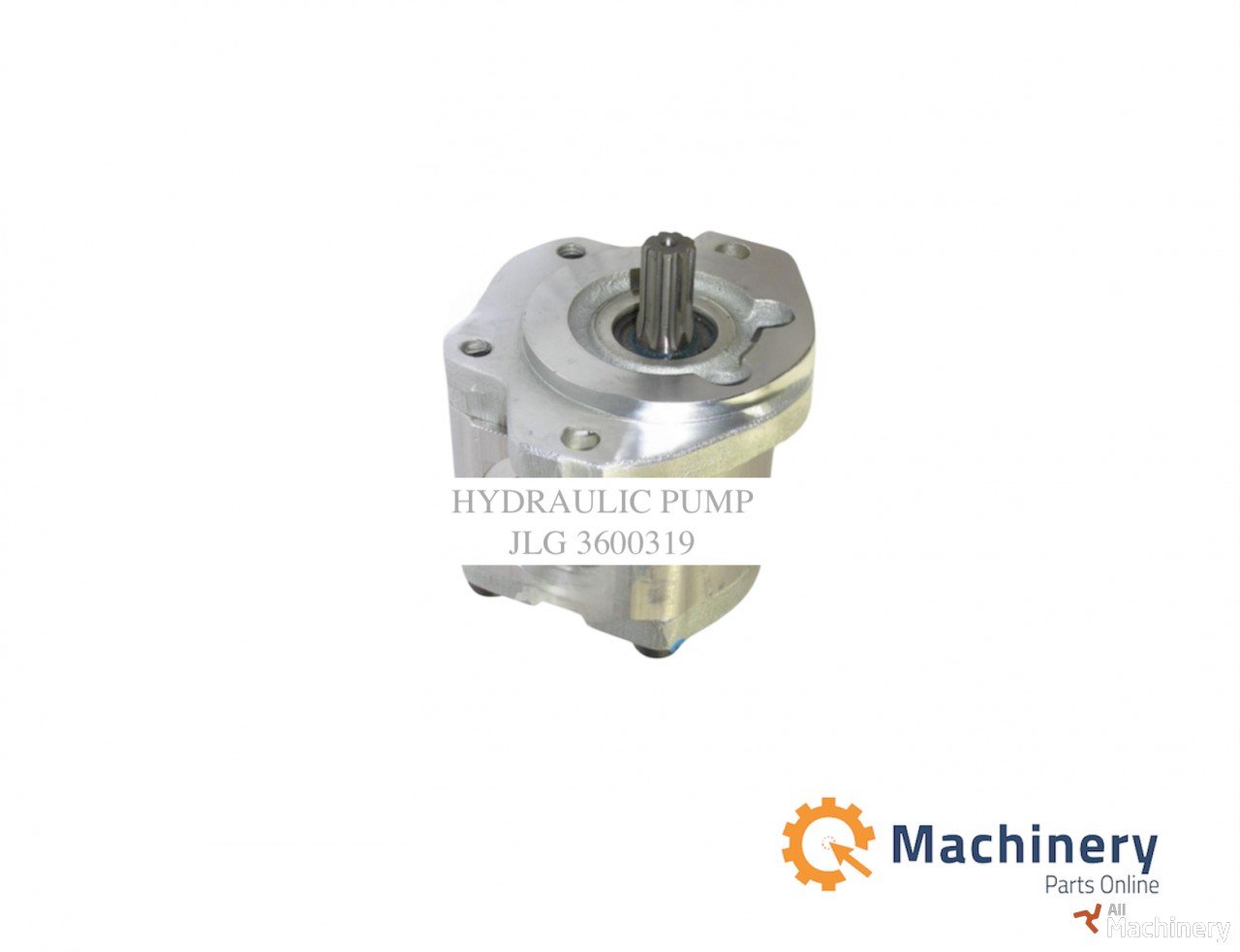

HYDRAULIC PUMP JLG 3600319
Type of pump:gearpump
Number of elements:1
Type of flange:type A
Diameter of flange mounting holes D1 (mm):11.2
Center distance of mounting holes flange C1 (mm):106.5
Total length of pump L1 (mm):125
Neck diameter D2 (mm):82.5
Type of shaft:type D
Distance from flange to end L2 (mm):31.7
Diameter of shaft D3 (mm):15.2
Number of splines:9
Direction of rotation:counterclockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type E
Thread type suction side of 1st element TA-Pa:1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type E
Thread type pressure side of 1st element TA-Pb:7/8 UNF
Flow control valve present:NO
Material of the housing:aluminium
Weight (kg):3.608
