Type of pump:gearpump
Number of elements:2
Type of flange:type A
Diameter of flange mounting holes D1 (mm):11
Center distance of mounting holes flange C1 (mm):106.4
Total length of pump L1 (mm):190.5
Neck diameter D2 (mm):82.5
Type of shaft:type C
Distance from flange to end L2 (mm):32
Diameter of shaft D3 (mm):19
Key (way) width W (mm):4.8
Direction of rotation:clockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type E
Thread type suction side of 1st element TA-Pa:1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type E
Thread type pressure side of 1st element TA-Pb:7/8 UNF
Position of suction port 2nd element, only for pump type T POS-CO3:side
Type of connections suction port 2nd element, only for pump type T TY-COc:type E
Thread type suction side of 2nd element TA-Pc:1 5/16 UNF
Position of pressure port 2nd element, only for pump type T POS-CO4:side
Type of connections pressure port 2nd element, only for pump type T TY-COd:type E
Thread type pressure side of 2nd element TA-Pd:7/8 UNF
Flow control valve present:NO
Material of the housing:aluminium
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

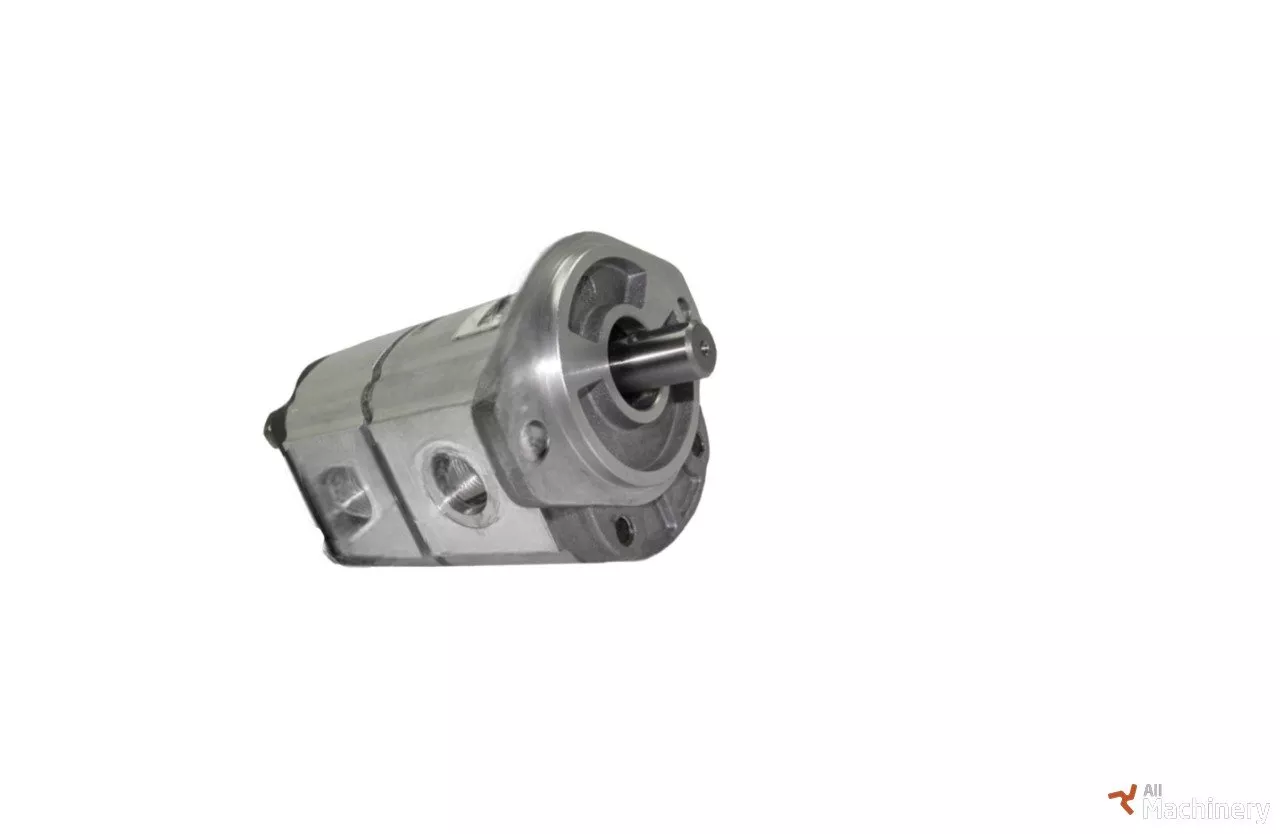

HYDRAULIC PUMP SKYJACK 110460
Type of pump:gearpump
Number of elements:2
Type of flange:type A
Diameter of flange mounting holes D1 (mm):11
Center distance of mounting holes flange C1 (mm):106.4
Total length of pump L1 (mm):190.5
Neck diameter D2 (mm):82.5
Type of shaft:type C
Distance from flange to end L2 (mm):32
Diameter of shaft D3 (mm):19
Key (way) width W (mm):4.8
Direction of rotation:clockwise
Position of suction port 1st element, only for pump type T POS-CO1:side
Type of connections suction port1st element, only for pump type T TY-COa:type E
Thread type suction side of 1st element TA-Pa:1 5/16 UNF
Position of pressure 1st element, only for pump type T POS-CO2:side
Type of connections pressure 1st element, only for pump type T TY-COb:type E
Thread type pressure side of 1st element TA-Pb:7/8 UNF
Position of suction port 2nd element, only for pump type T POS-CO3:side
Type of connections suction port 2nd element, only for pump type T TY-COc:type E
Thread type suction side of 2nd element TA-Pc:1 5/16 UNF
Position of pressure port 2nd element, only for pump type T POS-CO4:side
Type of connections pressure port 2nd element, only for pump type T TY-COd:type E
Thread type pressure side of 2nd element TA-Pd:7/8 UNF
Flow control valve present:NO
Material of the housing:aluminium
