Type of pump group TY-PG motor-pump
Length L1 (mm) 350
Width B1 (mm) 186
Height H1 (mm) 180
Function lifting
AC / DC direct current motor
Minimum voltage U1 (V) 24
Revolutions per minute (tr/min) 3600
Power (kW) 3.09
Cooling fan present YES
Direction of rotation motor counter clockwise
Brief operation (min) 13
Intermittent operation (%) 28
Starter relay present NO
Type of flange type G
Number of pump elements 1
Direction of rotation hydraulic pump clockwise
Thread type TA1 3/4 UNF
Diameter pressure side D2 (mm) 20.8
Decompression without

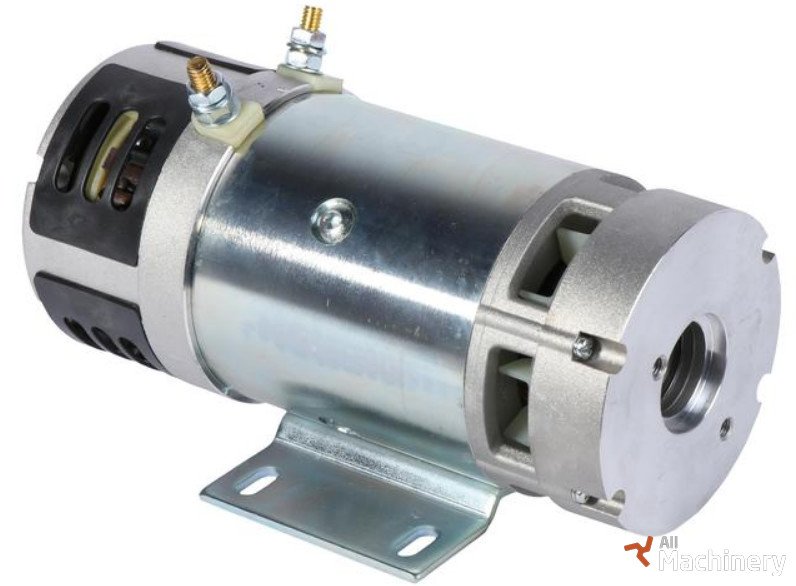

Hydraulic pump Skyjack 134573 fits electric scissor lift(s) Skyjack SJIII3015, SJIII3215, SJIII3219.
Type of pump group TY-PG motor-pump
Length L1 (mm) 350
Width B1 (mm) 186
Height H1 (mm) 180
Function lifting
AC / DC direct current motor
Minimum voltage U1 (V) 24
Revolutions per minute (tr/min) 3600
Power (kW) 3.09
Cooling fan present YES
Direction of rotation motor counter clockwise
Brief operation (min) 13
Intermittent operation (%) 28
Starter relay present NO
Type of flange type G
Number of pump elements 1
Direction of rotation hydraulic pump clockwise
Thread type TA1 3/4 UNF
Diameter pressure side D2 (mm) 20.8
Decompression without
