Type of pump gearpump
Number of elements 1
Type of flange C
Diameter of flange mounting holes D1 (mm) 8.8
Total length of pump L1 (mm) 90.5
Neck diameter D2 (mm) 45
Type of shaft B
Distance from flange to end L2 (mm) 10
Diameter of shaft D3 (mm) 10.9
Key (way) width W (mm) 4.3
Direction of rotation COUNTERCLOCKWISE
Position of suction port 1st element, only for pump type T POS-CO1 SIDE
Thread type suction side of 1st element TA-Pa 7/8 UNF
Position of pressure 1st element, only for pump type T POS-CO2 SIDE
Thread type pressure side of 1st element TA-Pb 3/4 UNF
Flow control valve present NO
Material of the housing aluminium
Should you require any further information, feel free to give a shout and we will be glad to assist you +370 699 82996

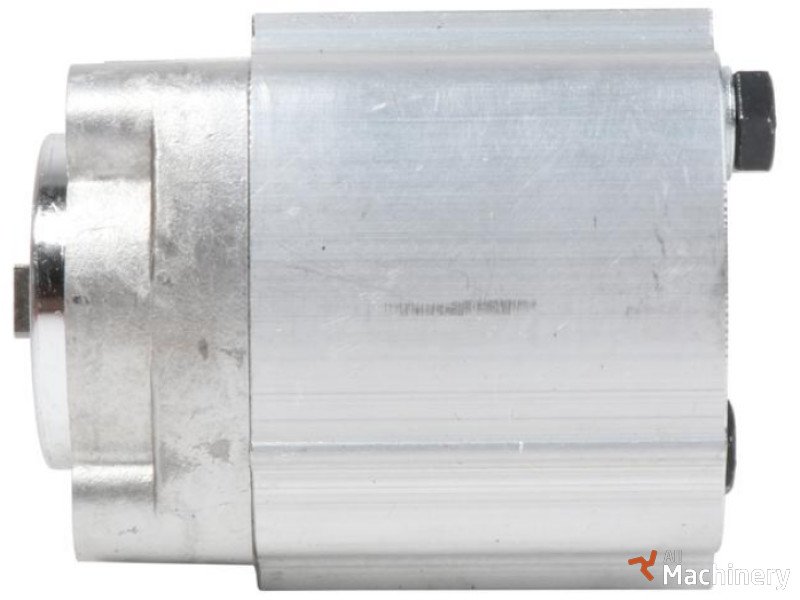

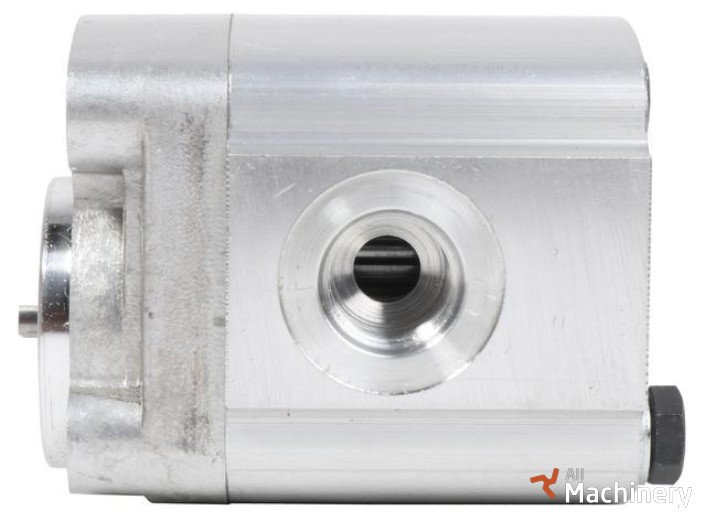

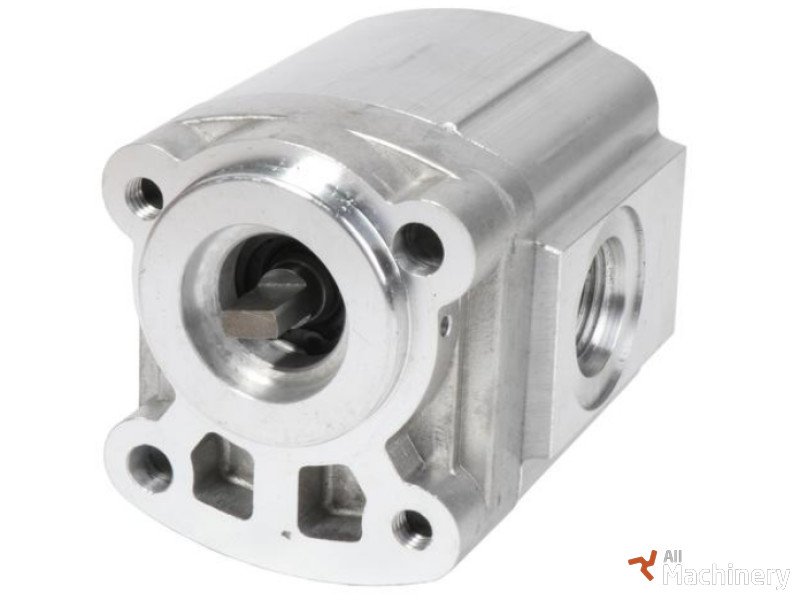

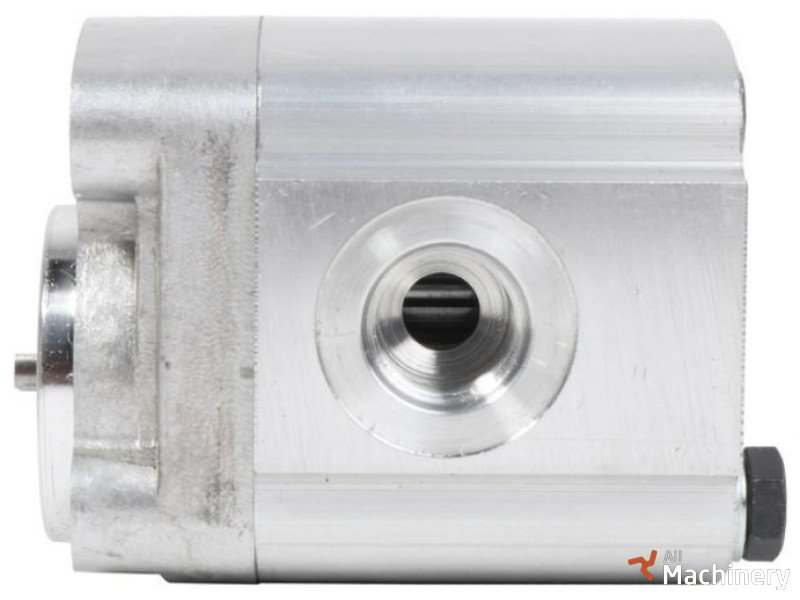

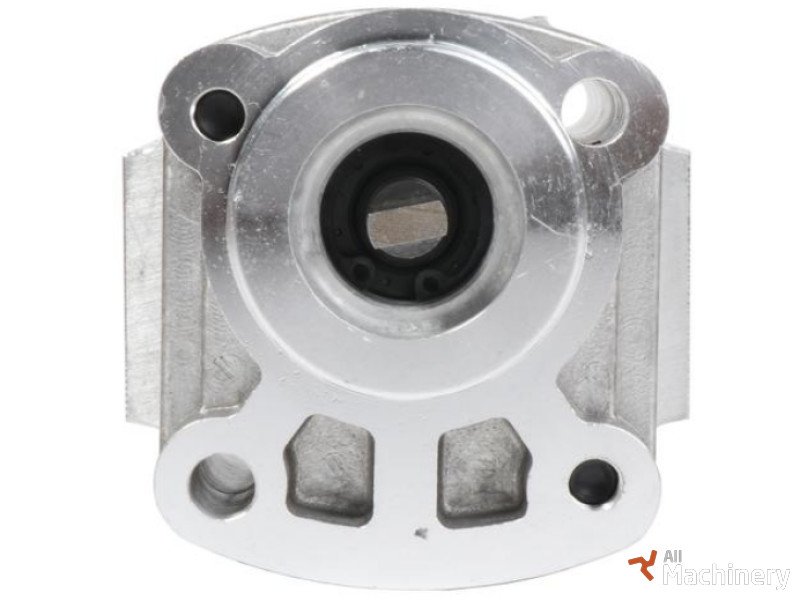

Hydraulic Pump Skyjack 147661. Fits SkyjackSJIII3220, SJIII3226 , SJIII4620, SJIII4626, and SJIII4632.
