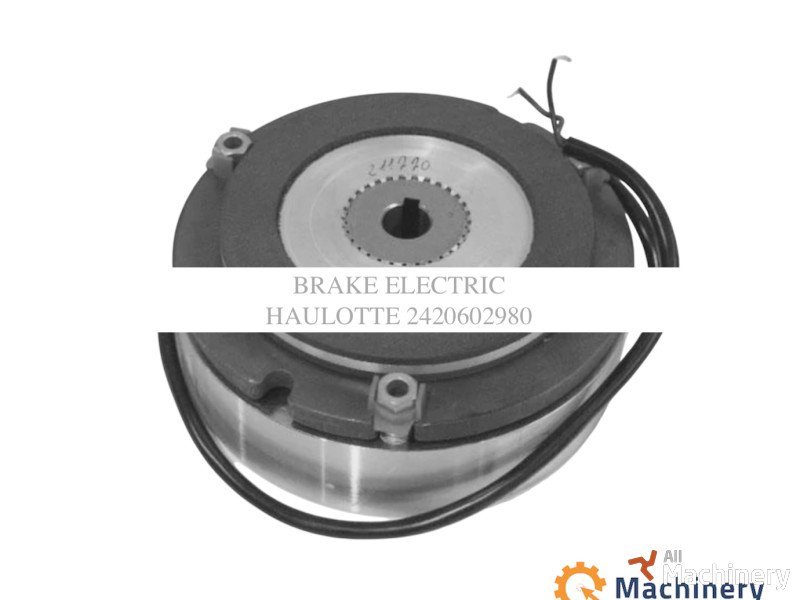

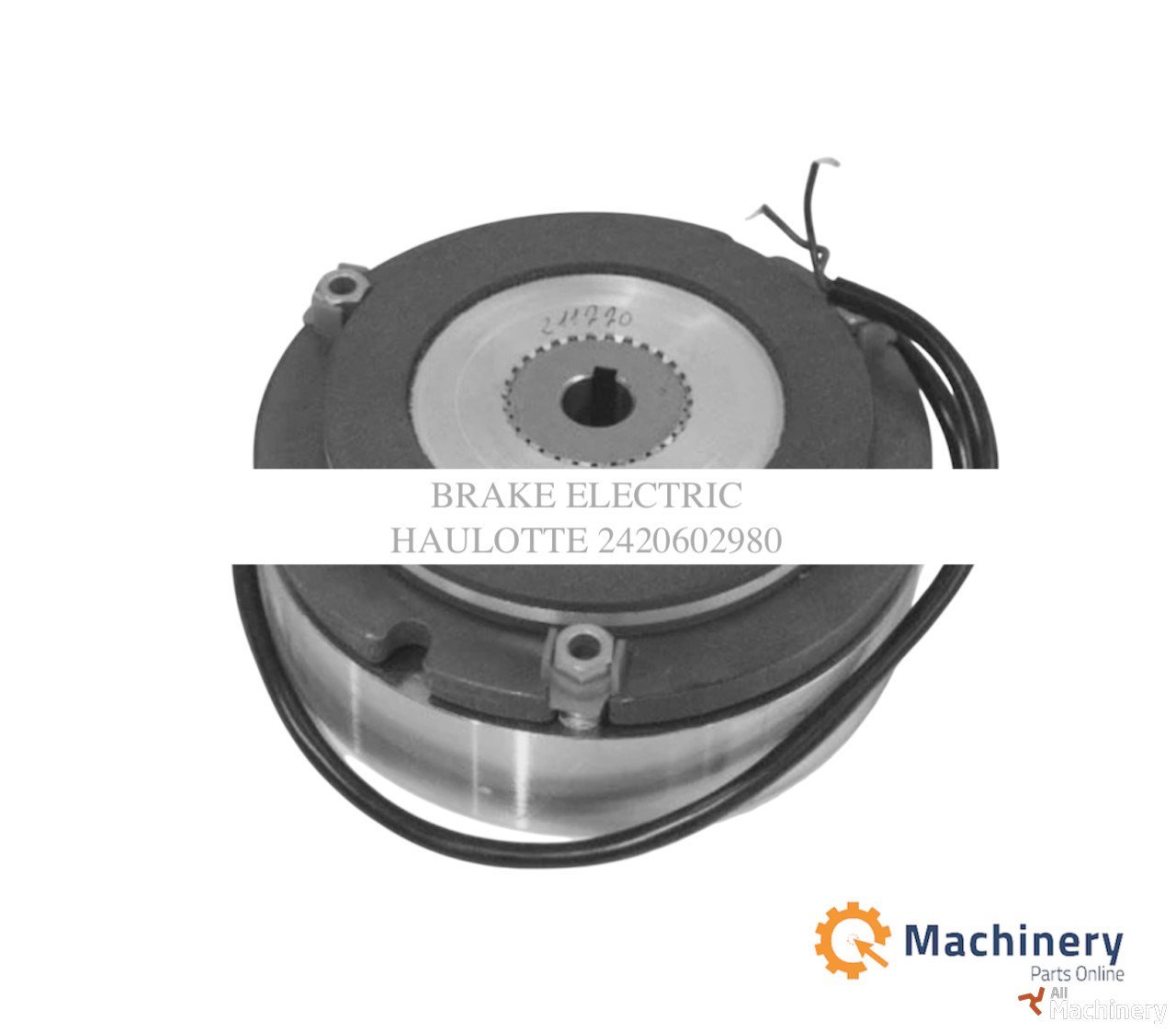

BRAKE ELECTRIC HAULOTTE 2420602980
External Ø coil D1 (mm):147
Internal Ø coil D3 (mm):48
Center distance C (mm):114
Voltage coil 1 U1 (V):24
Capacity coil 1 P1 (W):40
Torque coil 1 M1 (N.m):55
Lever YES/NO LEV:NO
Number of wires AT-DR:2
Plug YES/NO FIC:NO
Regulation ring couple RING:NO
Micro switch YES/NO MCR:NO
Adjustable air gap YES/NO LU-SP:YES
Fixation bolts YES/NO BV-BO:NO
Number of friction plates AT-PL:1
Dust cover YES/NO ST-AF:NO
Number of brake discs AT-RS:1
Material of brake disc MAT-RS:aluminium
Coupling YES/NON MNM:YES
Maximal internal Ø coupling D5 (mm):15
Weight (kg):4.76
