Sort of traction wheel SRT-WH:standard traction wheel
Diameter of the wheel D1 (mm):406
Width of the wheel W1 (mm):127
Diameter of the rim D2 (mm):305
Width of the rim W2 (mm):127
Shaft diameter D8 (mm):94
Inner offset of the flange OFF-IN (mm):58
Outer offset of the flange OFF-OUT (mm):58
Thickness of the flange TH-FL (mm):14.5
Material of the wheel (grouped) MAT-WH:rubber
Shape of the tread SH-TRED:crowned
Wheel profile PROF-WH:block
Material of the rim MAT-RIM:steel
Cam present CAM-PR:NO
Number of bolt holes QTY-BO:5
Type of bolt hole TY-BO:cylindrical
Diameter of the bolt holes D13 (mm):17
Pitch circle diameter D15 (mm):139
Centre distance of the bolt holes C1 (mm):81
Rim and tyre RIMTYR:NO
Suitable for coldstore use SUF:NO
One side is closed CL:NO
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

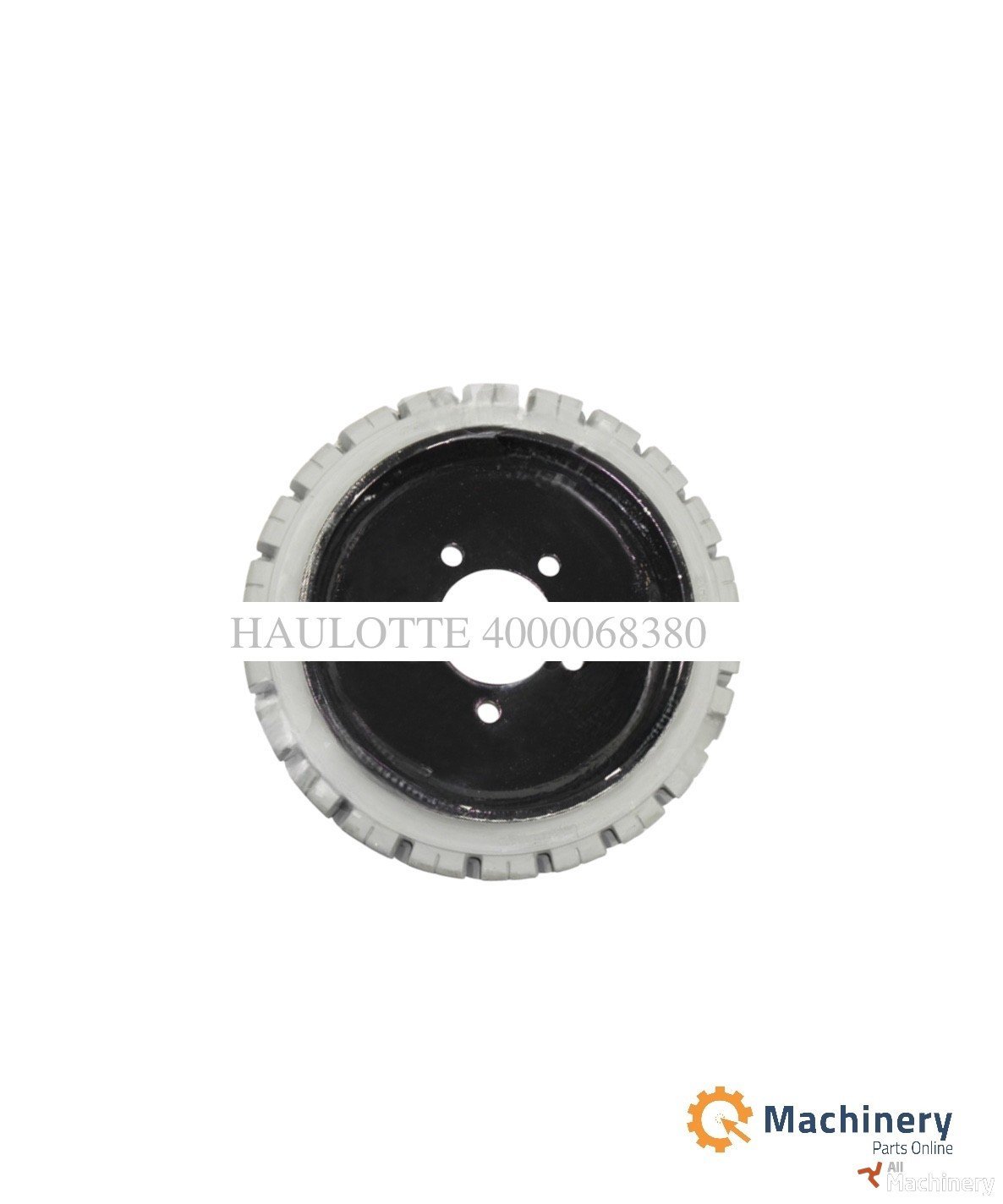

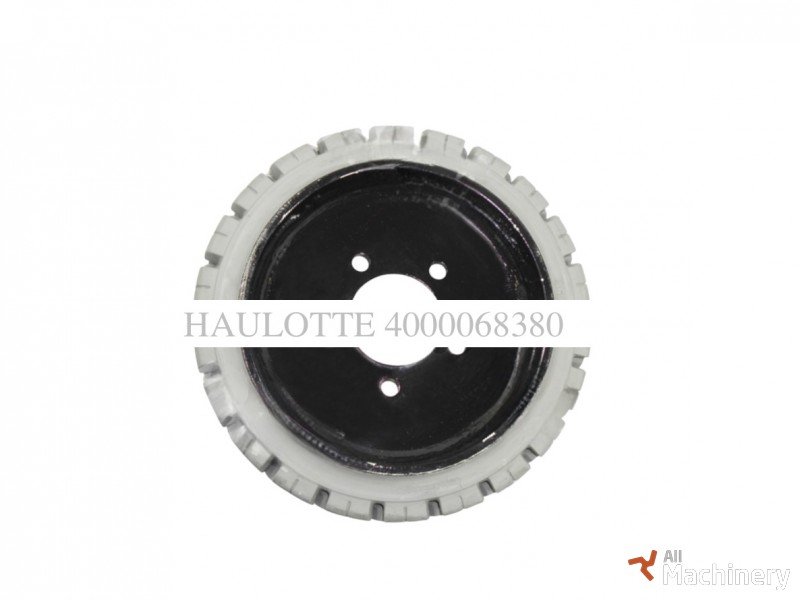

WHEEL HAULOTTE 4000068380
Sort of traction wheel SRT-WH:standard traction wheel
Diameter of the wheel D1 (mm):406
Width of the wheel W1 (mm):127
Diameter of the rim D2 (mm):305
Width of the rim W2 (mm):127
Shaft diameter D8 (mm):94
Inner offset of the flange OFF-IN (mm):58
Outer offset of the flange OFF-OUT (mm):58
Thickness of the flange TH-FL (mm):14.5
Material of the wheel (grouped) MAT-WH:rubber
Shape of the tread SH-TRED:crowned
Wheel profile PROF-WH:block
Material of the rim MAT-RIM:steel
Cam present CAM-PR:NO
Number of bolt holes QTY-BO:5
Type of bolt hole TY-BO:cylindrical
Diameter of the bolt holes D13 (mm):17
Pitch circle diameter D15 (mm):139
Centre distance of the bolt holes C1 (mm):81
Rim and tyre RIMTYR:NO
Suitable for coldstore use SUF:NO
One side is closed CL:NO
