Starter type:standard
Type of head:Z
Voltage (V):12
Power (kW):4
Neck diameter D1 (mm):89
Pinion diameter D2 (mm):39.4
Number of teeth:10
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):321
Distance between pinion and flange L2 (mm):29
Distance between pinion and nose L3 (mm):18.3
Distance drive cover L4 (mm):77.4
Number of holes:3
Position of fixation holes:55-10-25
Distances between fixation holes:90-90-127
Diameter mounting holes D3 (mm):11
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

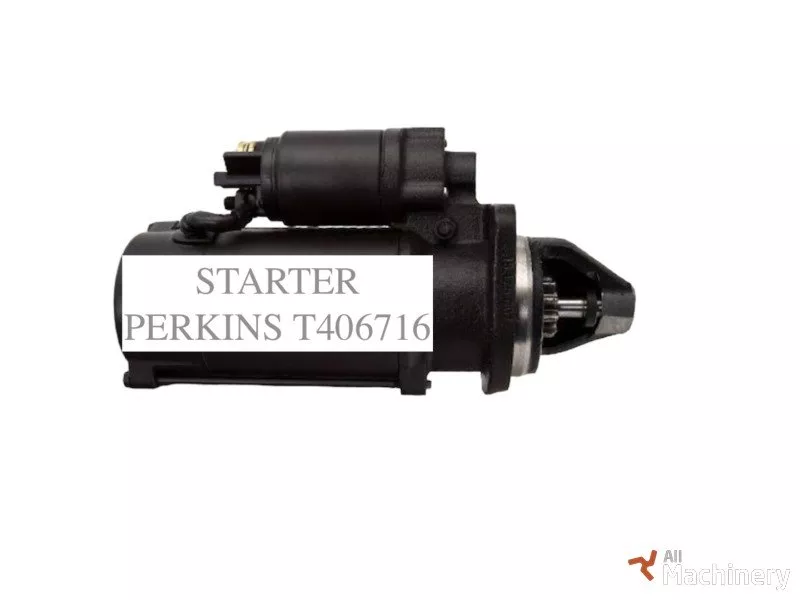

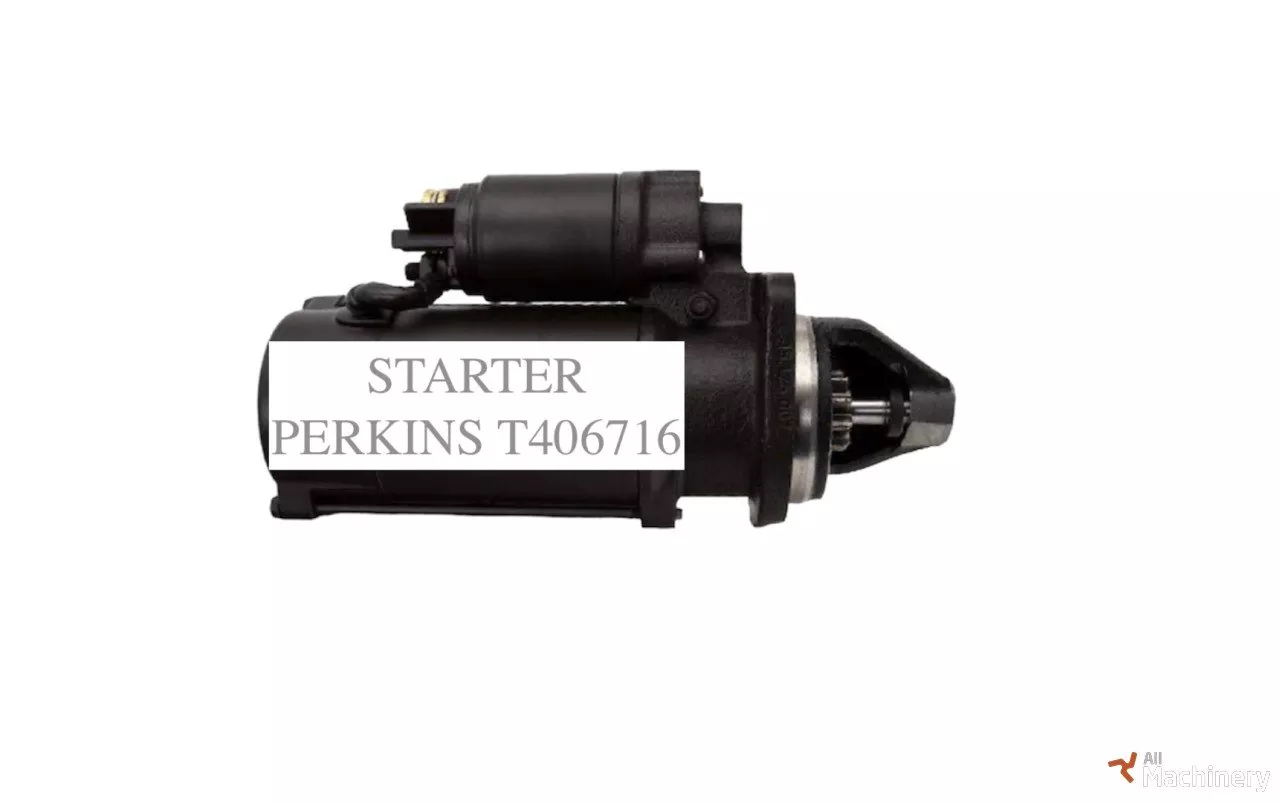

STARTER PERKINS T406716
Starter type:standard
Type of head:Z
Voltage (V):12
Power (kW):4
Neck diameter D1 (mm):89
Pinion diameter D2 (mm):39.4
Number of teeth:10
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):321
Distance between pinion and flange L2 (mm):29
Distance between pinion and nose L3 (mm):18.3
Distance drive cover L4 (mm):77.4
Number of holes:3
Position of fixation holes:55-10-25
Distances between fixation holes:90-90-127
Diameter mounting holes D3 (mm):11
