Starter type:standard
Type of head:T
Voltage (V):12
Neck diameter D1 (mm):89
Pinion diameter D2 (mm):39.5
Number of teeth:10
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):277
Distance between pinion and flange L2 (mm):28.5
Distance between pinion and nose L3 (mm):15.4
Distance drive cover L4 (mm):74
Number of holes:3
Position of fixation holes:40-55-10
Distances between fixation holes:90-90-127
Diameter mounting holes D3 (mm):11
Oil sealed:YES
www.machinerypartsonline.eu
www.machinerypartsonline.com.au

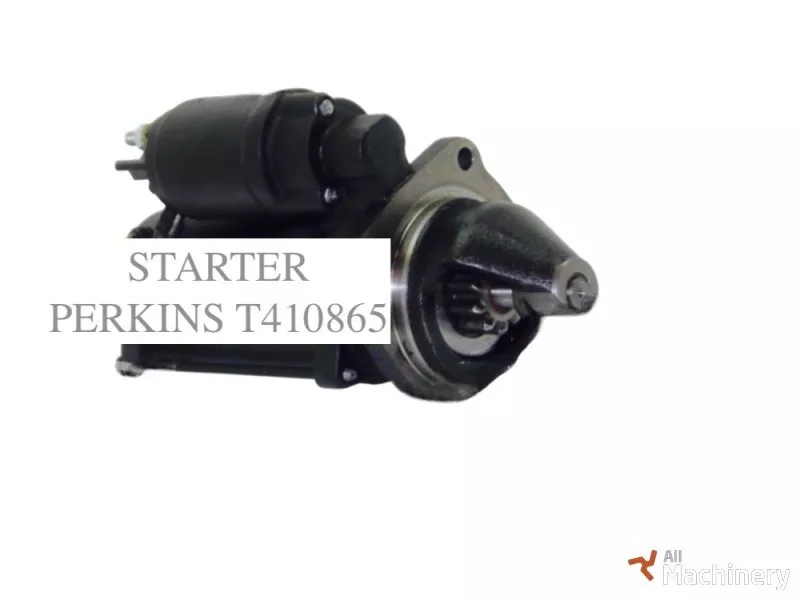

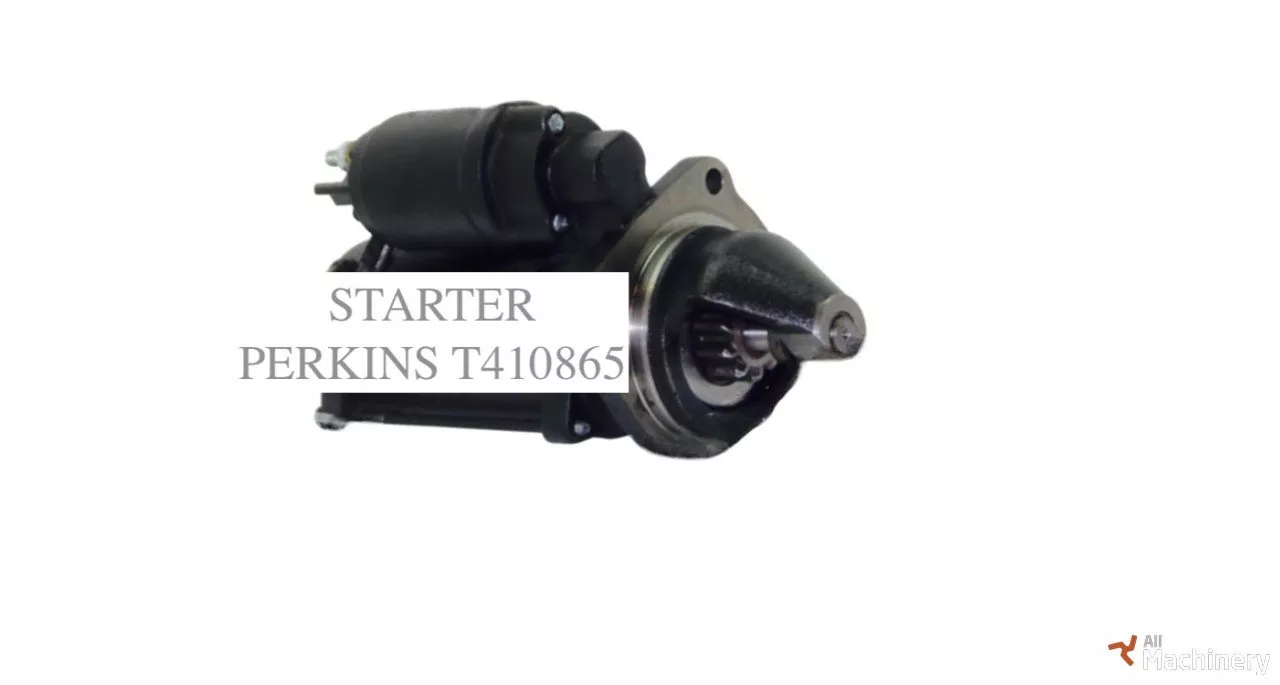

STARTER PERKINS T410865
Starter type:standard
Type of head:T
Voltage (V):12
Neck diameter D1 (mm):89
Pinion diameter D2 (mm):39.5
Number of teeth:10
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):277
Distance between pinion and flange L2 (mm):28.5
Distance between pinion and nose L3 (mm):15.4
Distance drive cover L4 (mm):74
Number of holes:3
Position of fixation holes:40-55-10
Distances between fixation holes:90-90-127
Diameter mounting holes D3 (mm):11
Oil sealed:YES
