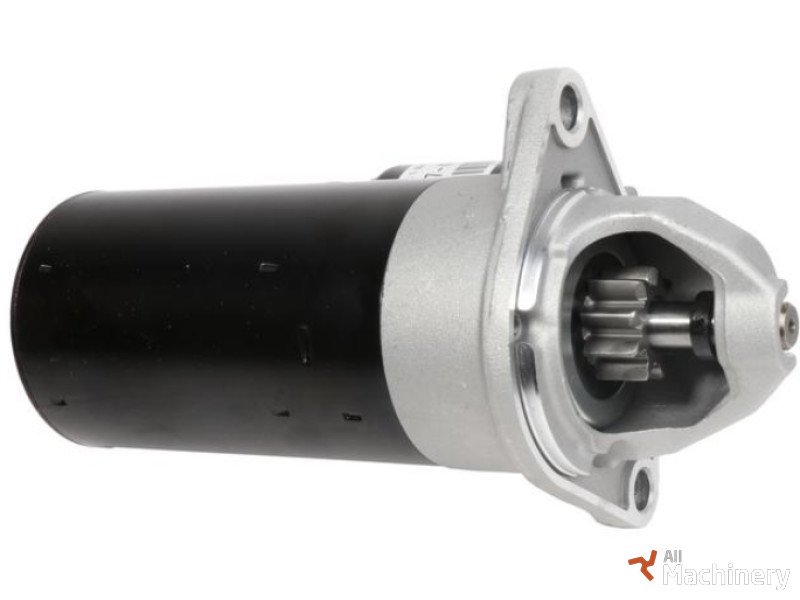

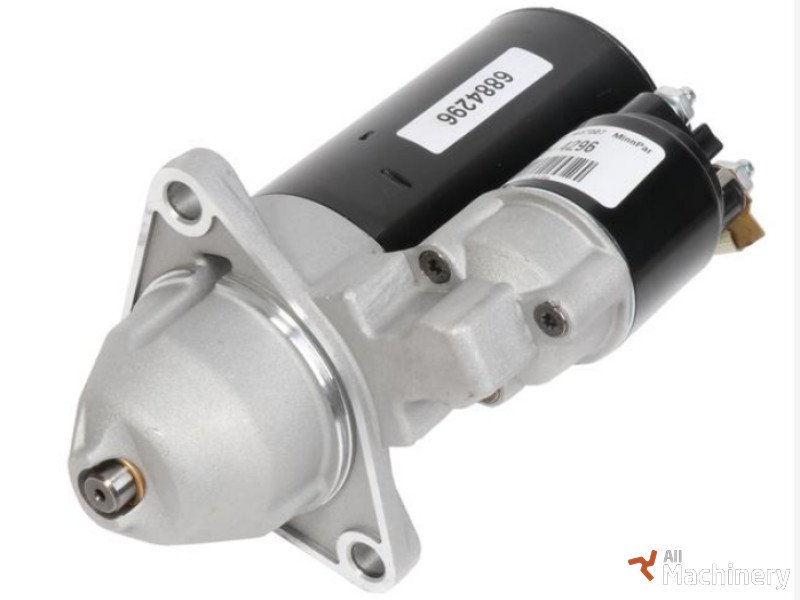

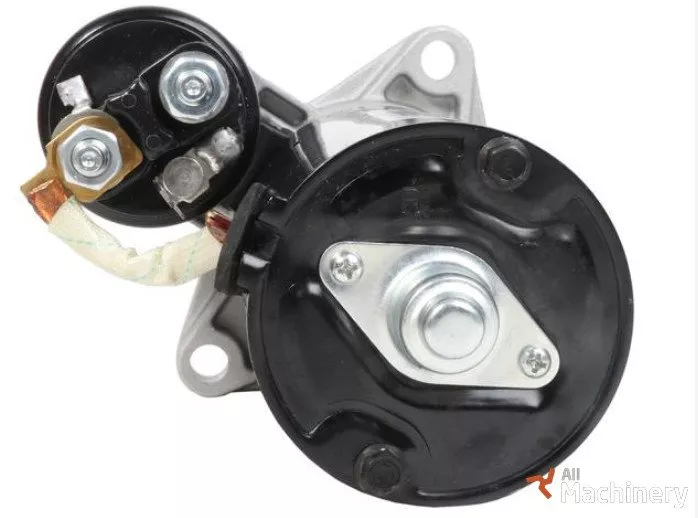

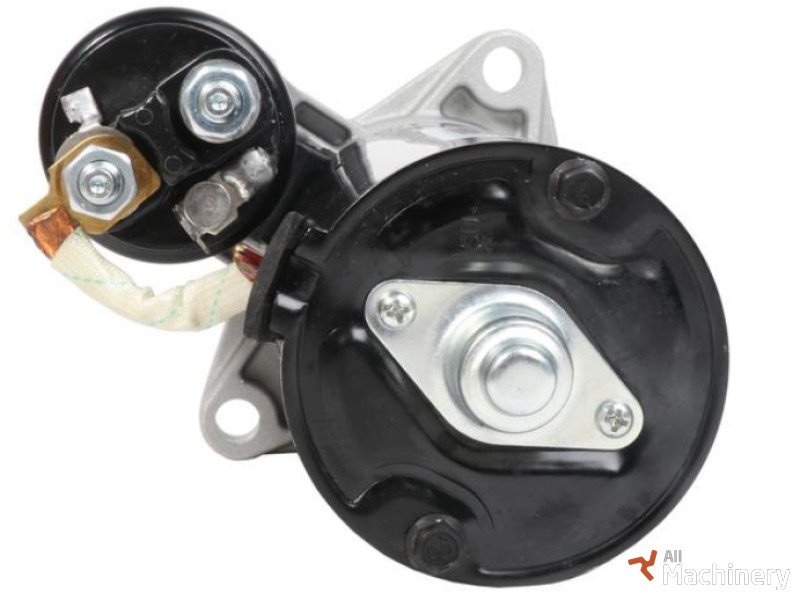

Starter type Direct drive
Type of head X
Voltage (V) 12
Power KW (kW) 2
Neck diameter D1 (mm) 74
Pinion Ø D2 (mm) 29
Number of teeth 9
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 213
Distance between pinion and flange L2 (mm) 20
Distance between pinion and nose L3 (mm) 14
Distance drive cover (mm) 53.5
Number of holes 2
Position of fixation 50-10-00
Position of centers 110
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO
Fits JCB 8008 CTS, 8010 CTS, 8014 CTS, 8016 CTS, 8018 CTS, 8020 CTS, 8025 ZTS, 8030 CTS/ZTS, 8035 ZTS, 8045 ZTS, 8050 ZTS, 524-50, 515-40, 520-40, 180 T/HF, 190 T/HF, 135E, 135I, 135R, 150, 150TR, 155, 155E, 155I, 160 HI Flow, 160, 165 HI Flow, 165, 170 HI Flow, 170, 175, 180 HI Flow, 180 Tracked HI Flow, 180 Tracked, 180, 190, 190T, 205, 205T.
Starter type Direct drive
Type of head X
Voltage (V) 12
Power KW (kW) 2
Neck diameter D1 (mm) 74
Pinion Ø D2 (mm) 29
Number of teeth 9
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 213
Distance between pinion and flange L2 (mm) 20
Distance between pinion and nose L3 (mm) 14
Distance drive cover (mm) 53.5
Number of holes 2
Position of fixation 50-10-00
Position of centers 110
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO
