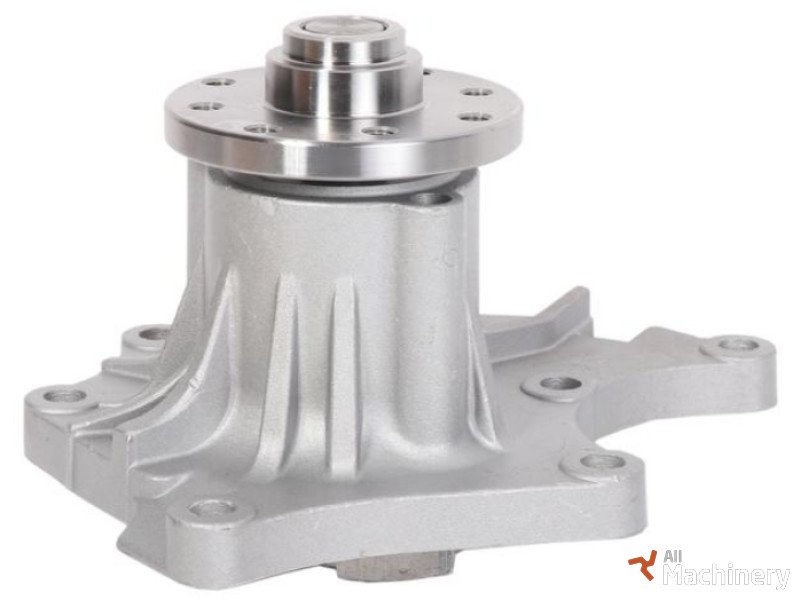

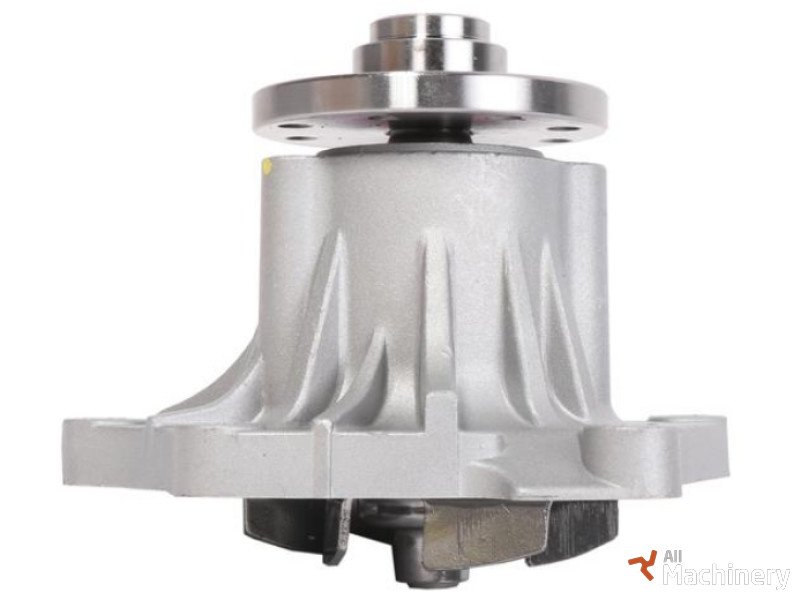

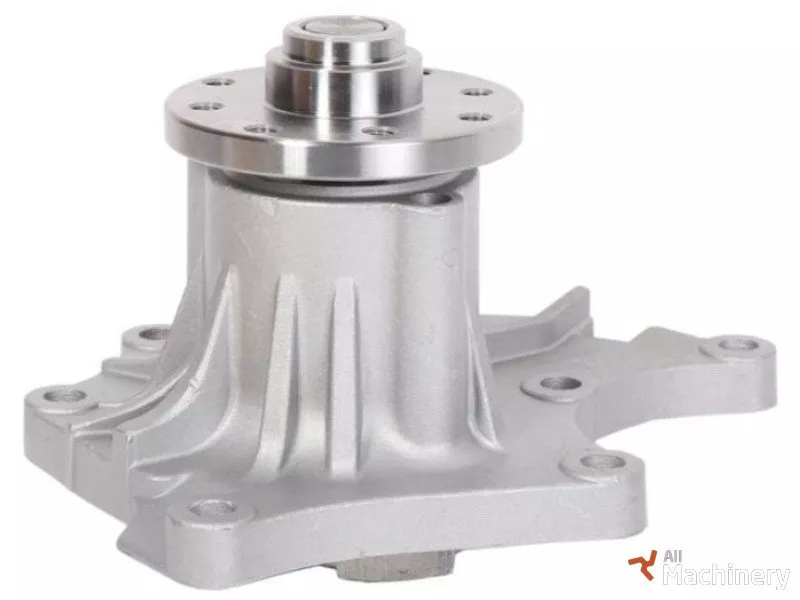

Sort waterpump flange
Type waterpump A1
Total height H1 (mm) 119
Maximum length L1 (mm) 171
Shaft diameter D1 (mm) 18
Neck diameter D2 (mm) 32
Flange/gear or pully diameter D3 (mm) 73
Total number of mounting holes for v-pulley (holes + thread) 8
Number of threads 8
Biggest thread TA1 M6
Metric pitch Pm1 (mm) 1
Smallest centre distance of nearest mounting holes C1 (mm) 22
Biggest centre distance of nearest mounting holes C2 (mm) 22
Thread of mounting cooling fan present NO
Gasket included YES
