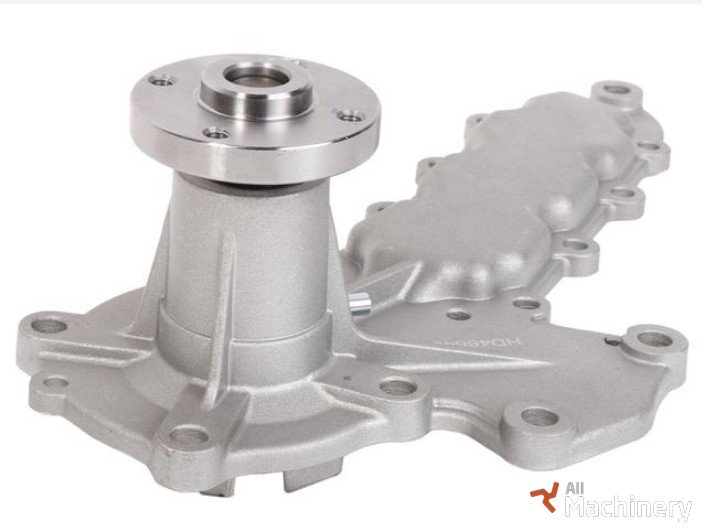

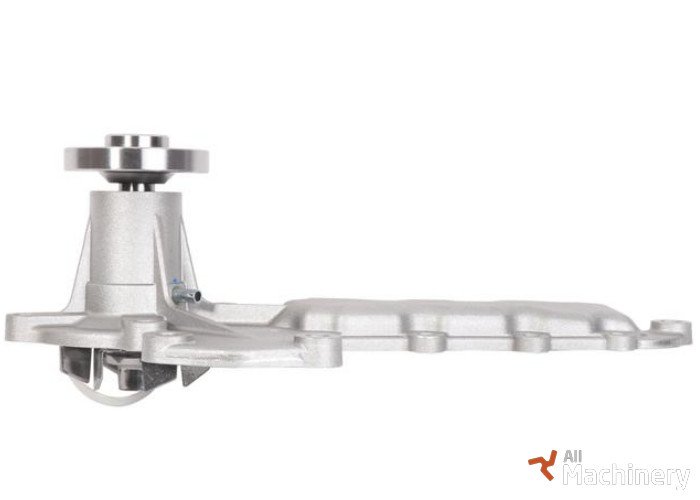

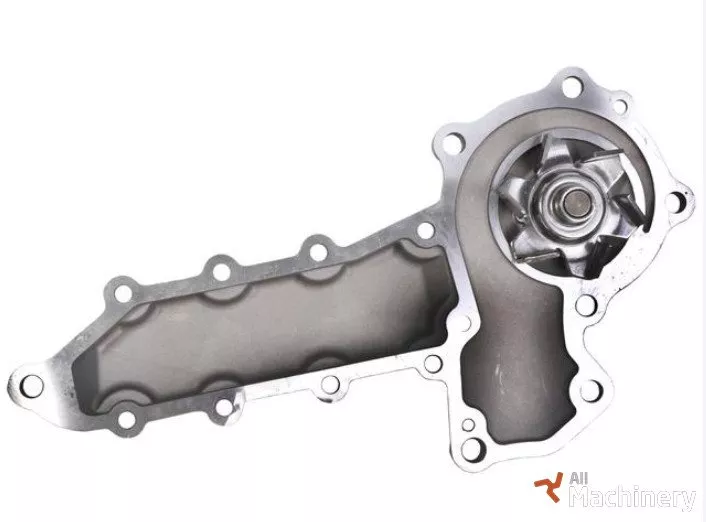

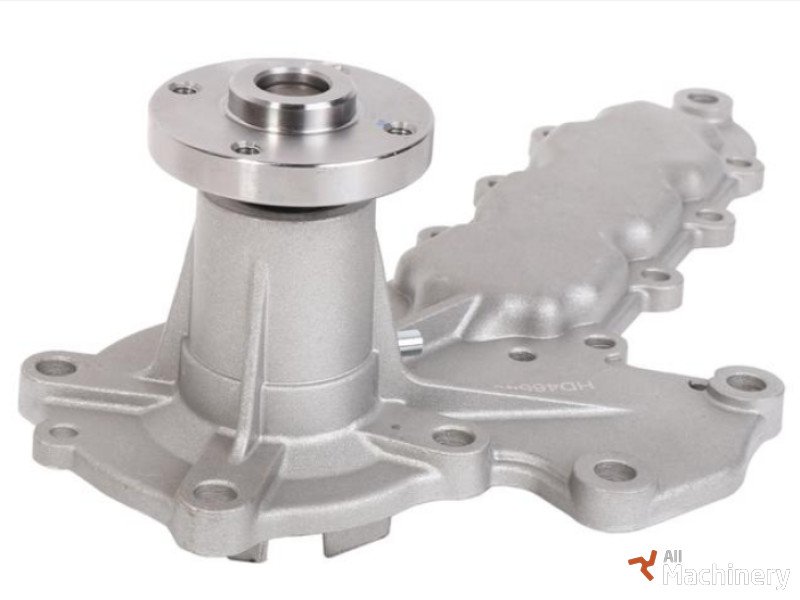

Sort waterpump flange
Type waterpump A1
Total height H1 (mm) 111.4
Maximum length L1 (mm) 303
Shaft diameter D1 (mm) 15.8
Neck diameter D2 (mm) 27.8
Flange/gear or pully diameter D3 (mm) 62.6
Total number of mounting holes for v-pulley (holes + thread) 4
Number of threads 4
Biggest thread TA1 M6
Metric pitch Pm1 (mm) 1
Smallest centre distance of nearest mounting holes C1 (mm) 35
Biggest centre distance of nearest mounting holes C2 (mm) 35
Thread of mounting cooling fan present NO
Gasket included YES
