Water pump Bobcat 6660992 Sort waterpump flange Type waterpump A1 Total height H1 (mm) 125 Maximum length L1 (mm) 250 Shaft diameter D1 (mm) 18 Neck diameter D2 (mm) 31.9 Flange/gear or pully diameter D3 (mm) 69.7 Total number of mounting holes for v-pulley (holes + thread) 8 Number of threads 8 Biggest thread TA1 M8 Metric pitch Pm1 (mm) 1.25 Smallest thread TA2 M6 Metric pitch Pm2 (mm) 1 Smallest centre distance of nearest mounting holes C1 (mm) 21 Biggest centre distance of nearest mounting holes C2 (mm) 21 Thread of mounting cooling fan present NO Gasket included YES

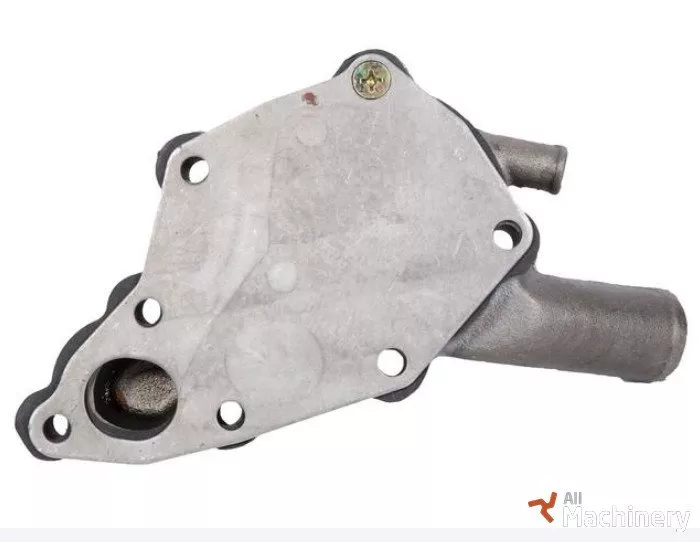

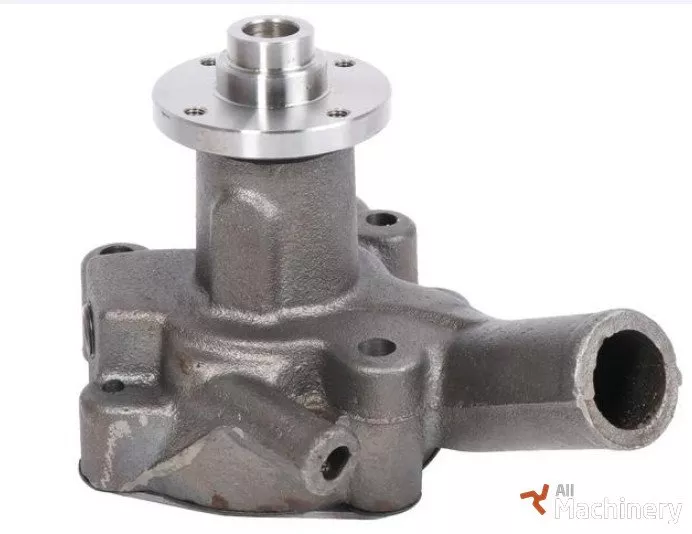

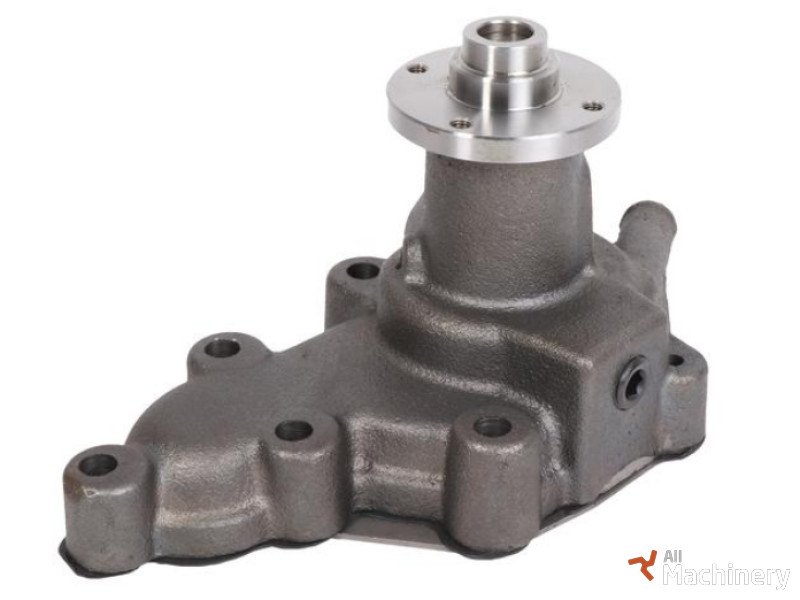

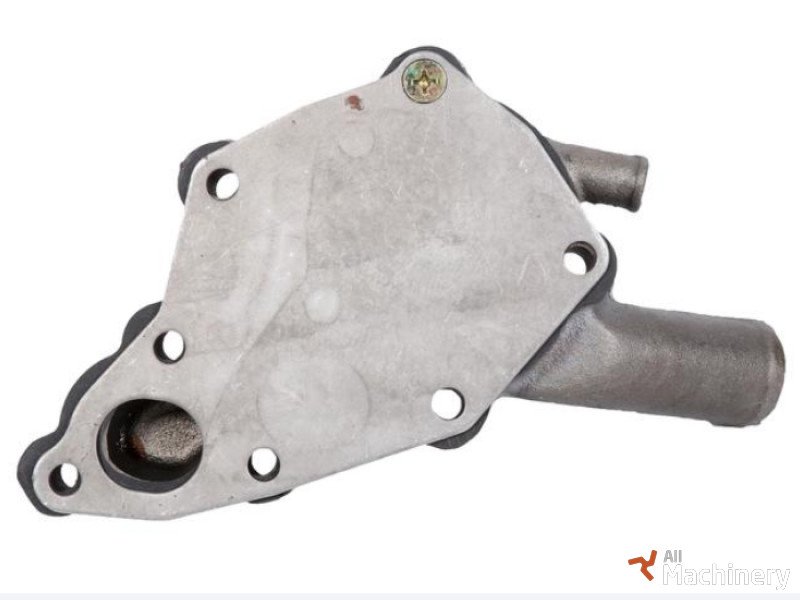

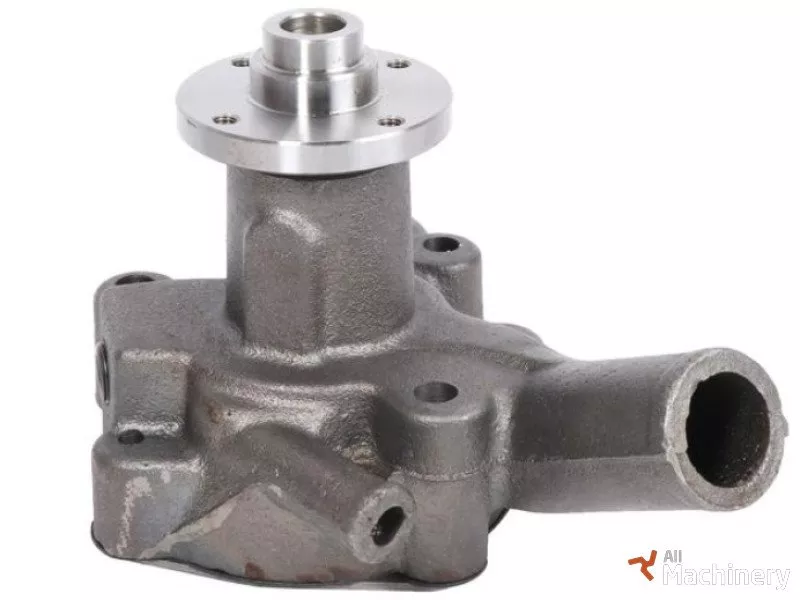

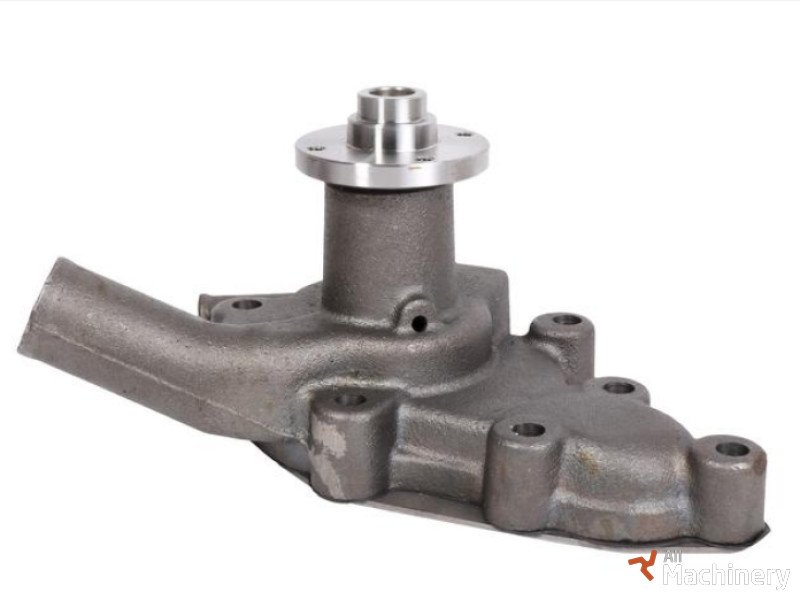

Water pump Bobcat 6660992
Sort waterpump flange
Type waterpump A1
Total height H1 (mm) 125
Maximum length L1 (mm) 250
Shaft diameter D1 (mm) 18
Neck diameter D2 (mm) 31.9
Flange/gear or pully diameter D3 (mm) 69.7
Total number of mounting holes for v-pulley (holes + thread) 8
Number of threads 8
Biggest thread TA1 M8
Metric pitch Pm1 (mm) 1.25
Smallest thread TA2 M6
Metric pitch Pm2 (mm) 1
Smallest centre distance of nearest mounting holes C1 (mm) 21
Biggest centre distance of nearest mounting holes C2 (mm) 21
Thread of mounting cooling fan present NO
Gasket included YES
