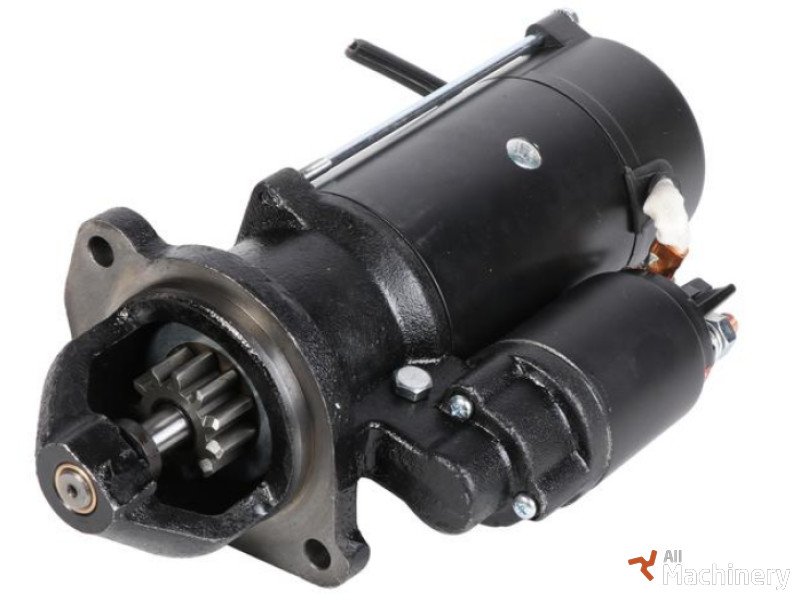

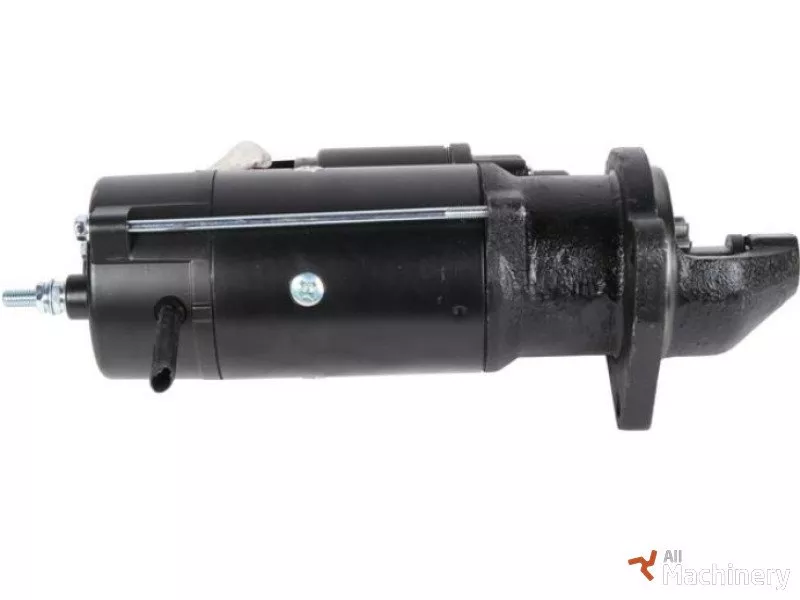

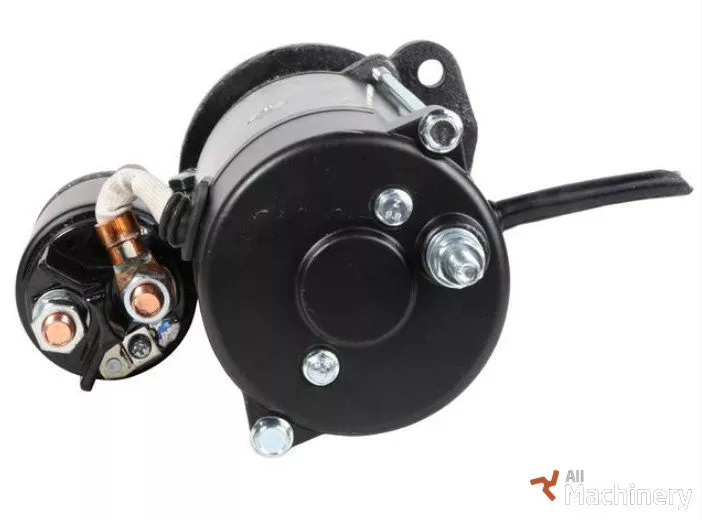

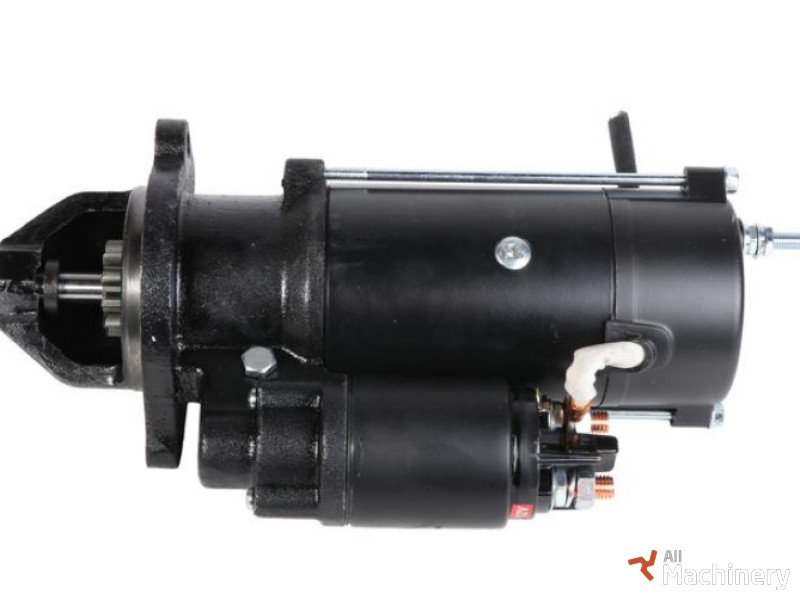

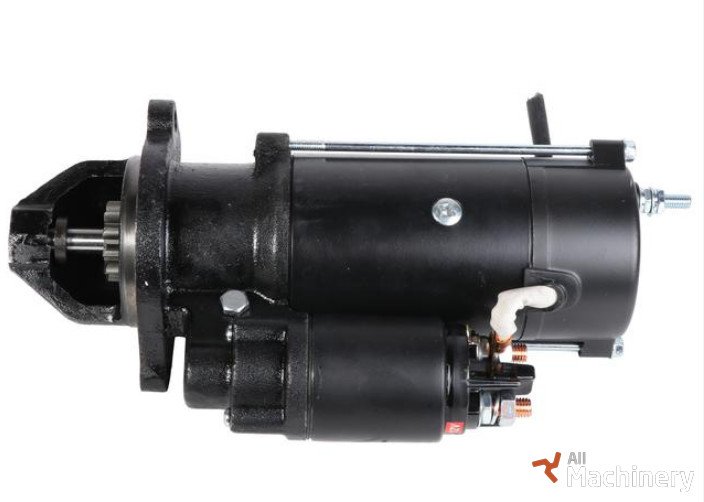

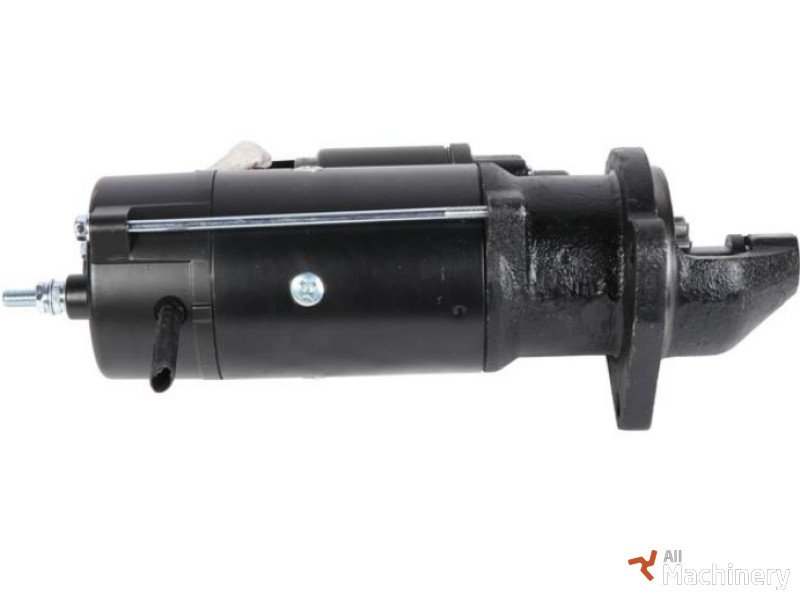

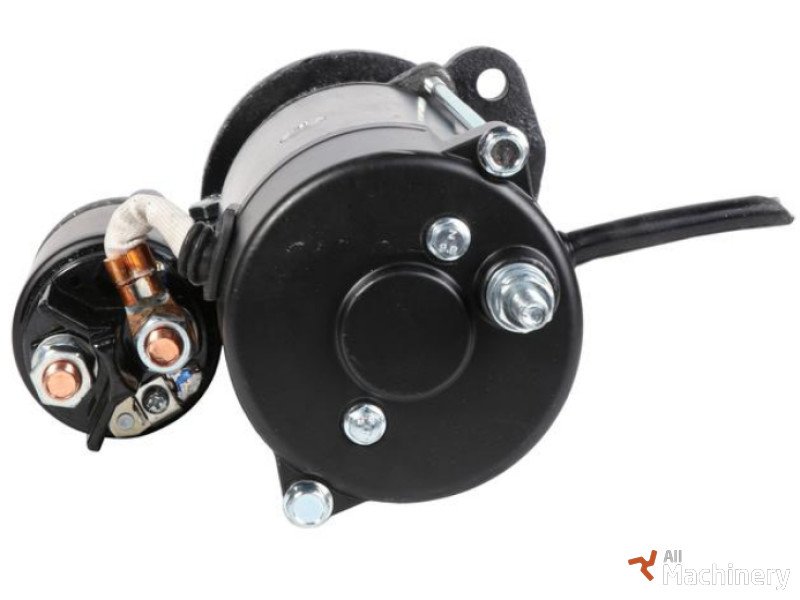

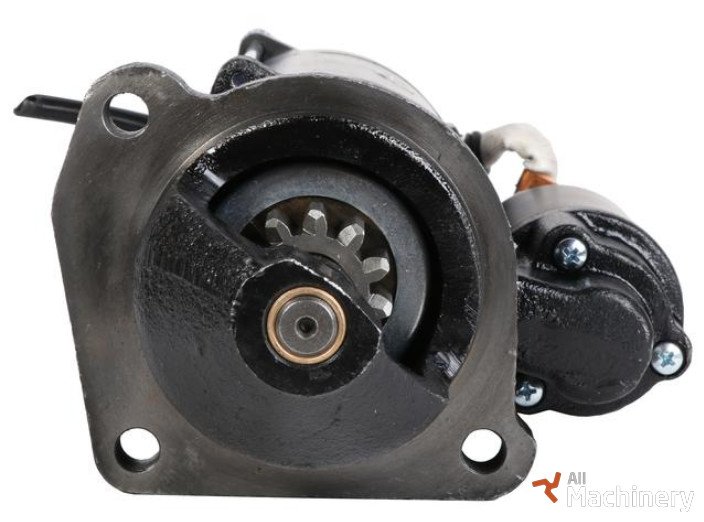

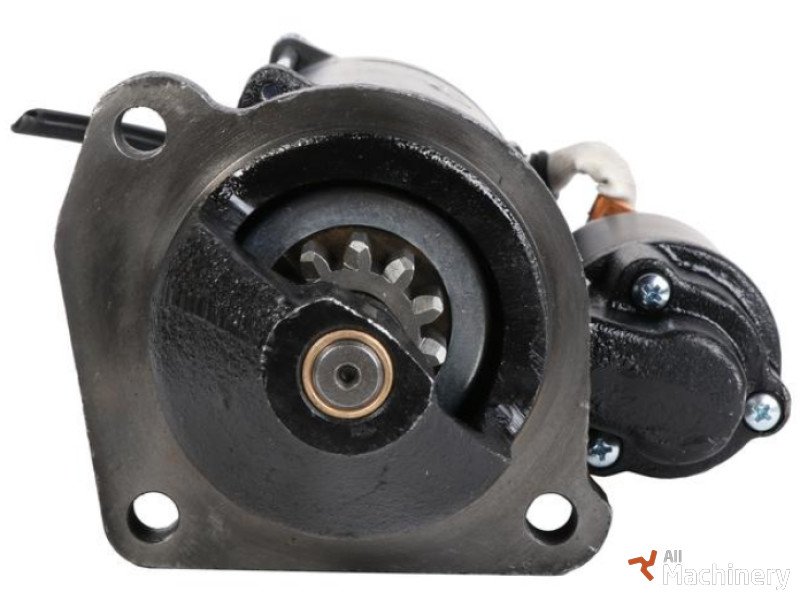

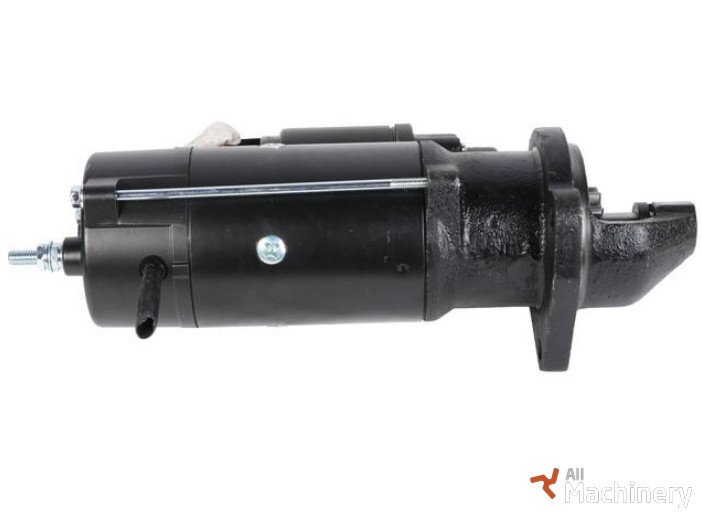

Starter type Direct drive
Type of head J
Voltage (V) 12
Power KW (kW) 4.2
Neck diameter D1 (mm) 88.8
Pinion Ø D2 (mm) 41.4
Number of teeth 11
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 347
Distance between pinion and flange L2 (mm) 21.5
Distance between pinion and nose L3 (mm) 18
Distance drive cover (mm) 70
Number of holes 3
Position of fixation 35-05-20
Position of centers 87-90-127
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO
Fits JCB 2CX, 3CX, 3CX PLUS, 3CX CLL, 4CX, 535-95, 54-140, 540-200. 524-50, 526-56, 527-55, 531-70, 535-95, 536-60, 536-70, 541-70, JCB444...
