Starter type Direct drive
Type of head J
Voltage (V) 24
Power KW (kW) 4
Neck diameter D1 (mm) 88.5
Pinion Ø D2 (mm) 41.2
Number of teeth 11
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 321
Distance between pinion and flange L2 (mm) 21
Distance between pinion and nose L3 (mm) 18
Distance drive cover (mm) 68.5
Number of holes 3
Position of fixation 35-05-20
Position of centers 88-90-127
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO

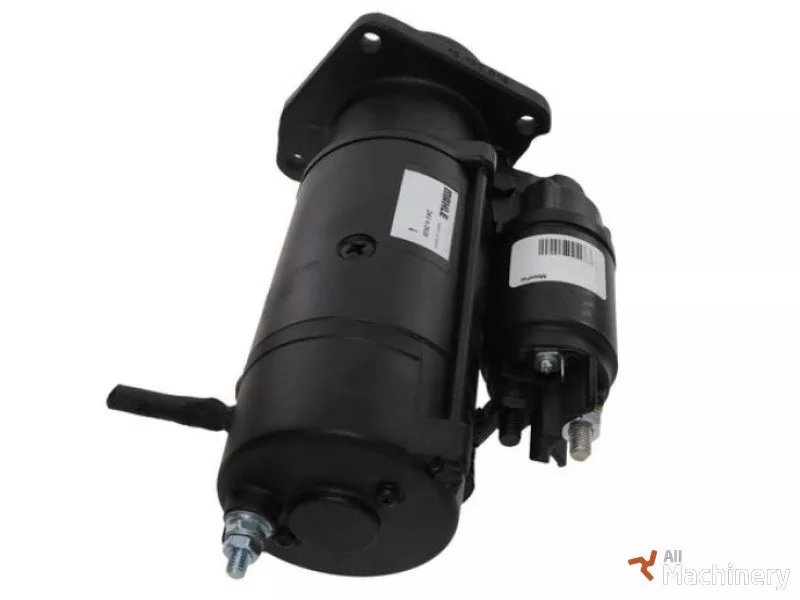

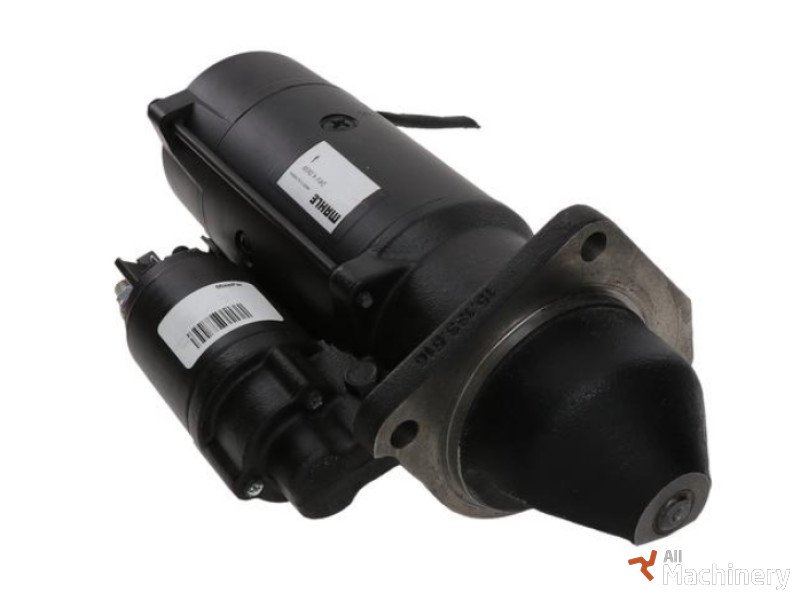

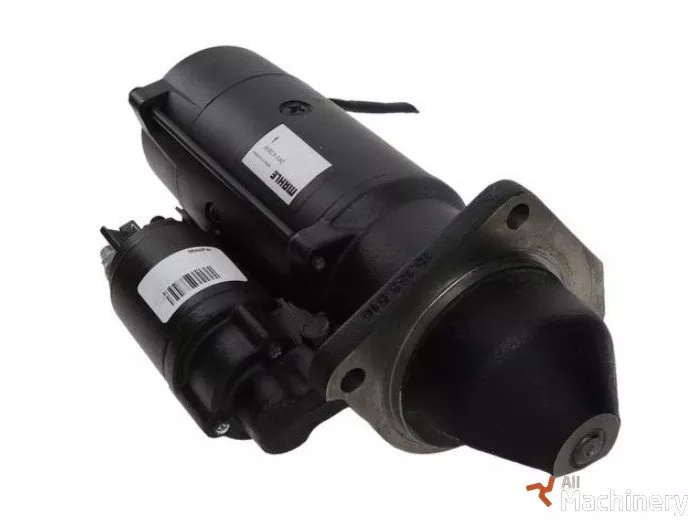

Starter JCB 320/A9080.
Starter type Direct drive
Type of head J
Voltage (V) 24
Power KW (kW) 4
Neck diameter D1 (mm) 88.5
Pinion Ø D2 (mm) 41.2
Number of teeth 11
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 321
Distance between pinion and flange L2 (mm) 21
Distance between pinion and nose L3 (mm) 18
Distance drive cover (mm) 68.5
Number of holes 3
Position of fixation 35-05-20
Position of centers 88-90-127
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO
