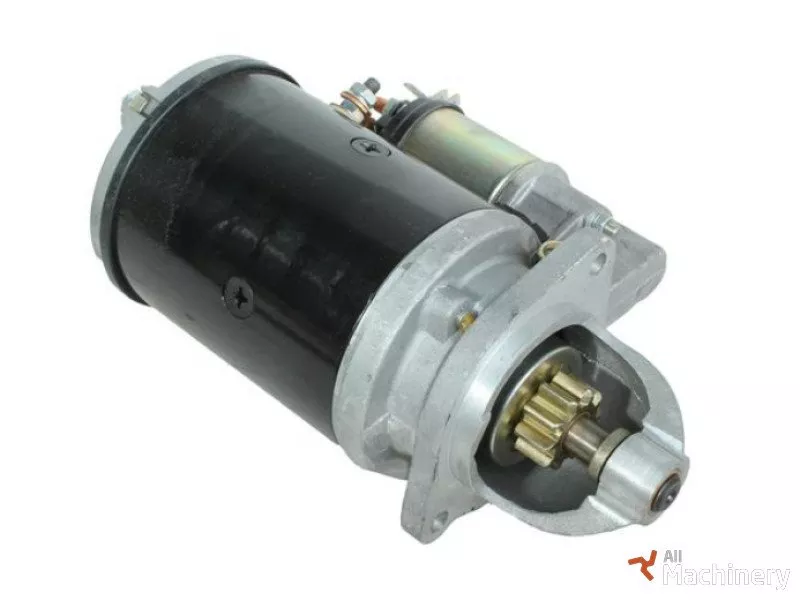

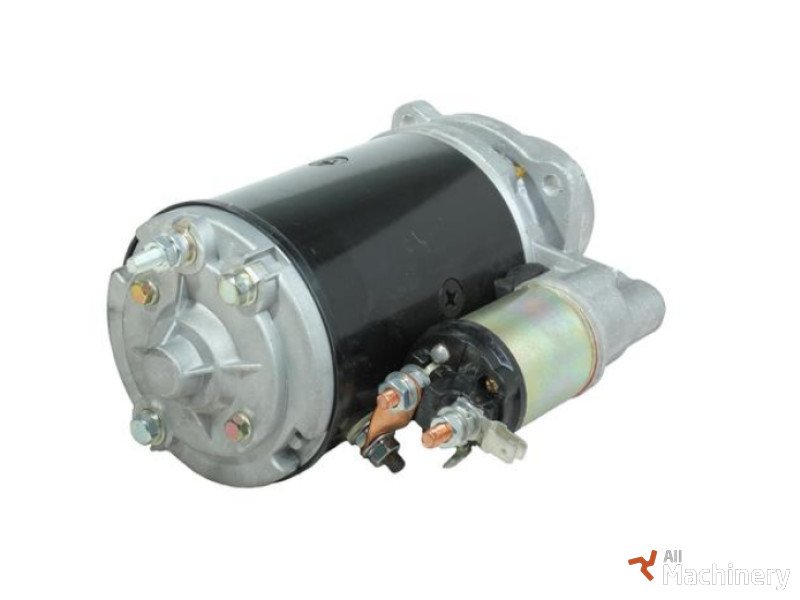

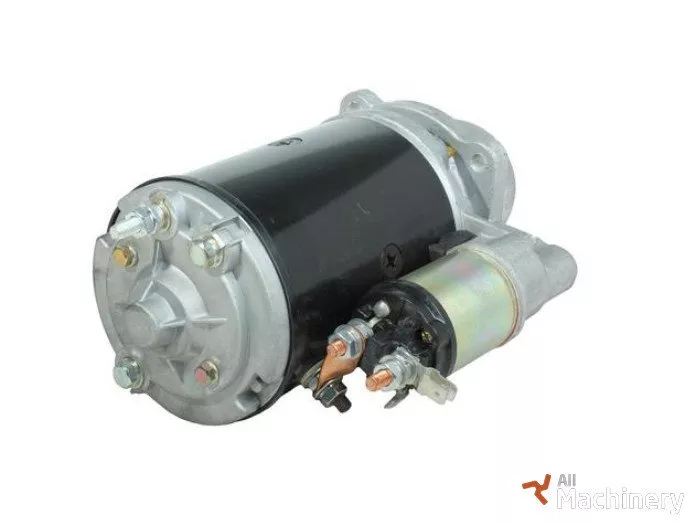

Starter type Direct drive
Type of head Z
Voltage (V) 12
Power KW (kW) 2.8
Neck diameter D1 (mm) 89
Pinion Ø D2 (mm) 39.3
Number of teeth 10
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 314.5
Distance between pinion and flange L2 (mm) 29
Distance between pinion and nose L3 (mm) 16
Distance drive cover (mm) 76.5
Number of holes 3
Position of fixation 50-10-20
Position of centers 90-90-127
Ø mounting holes D3 (mm) 11
Oil sealed yes/no YES
