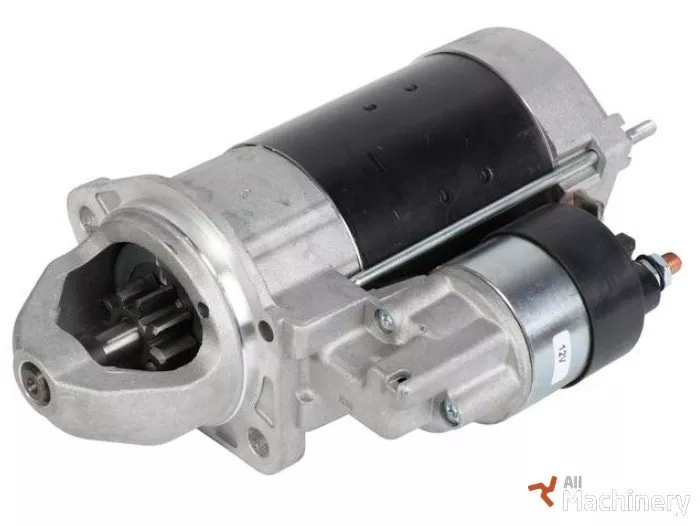

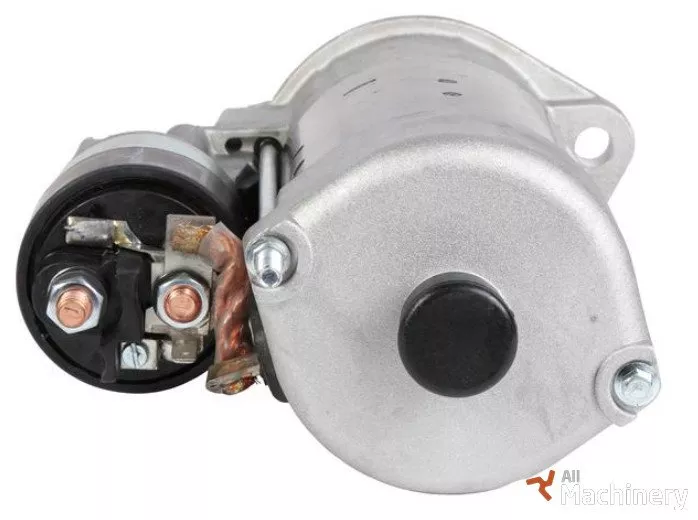

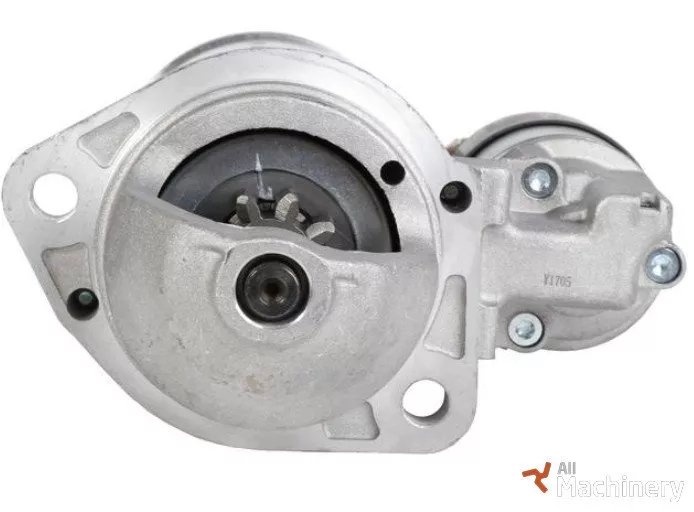

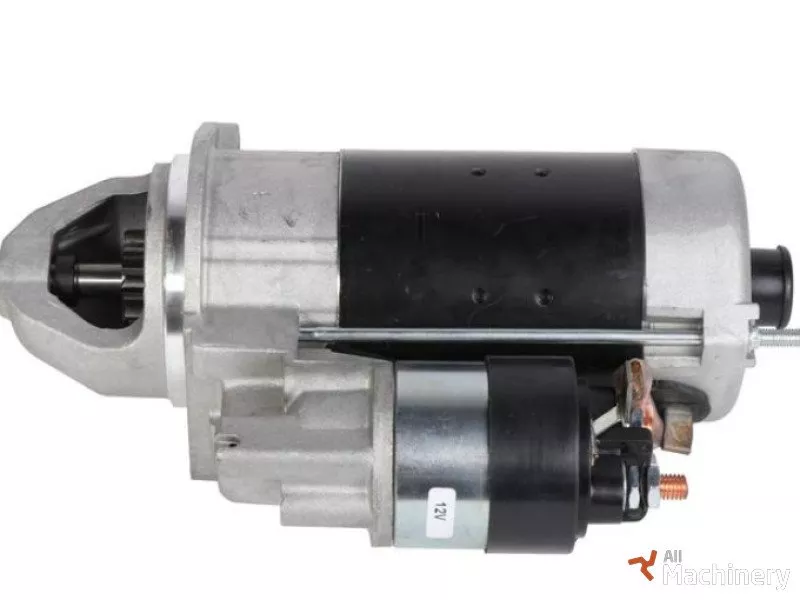

Starter type Direct drive
Type of head J
Voltage (V) 12
Neck diameter D1 (mm) 82.4
Pinion Ø D2 (mm) 33.5
Number of teeth 9
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 256
Distance between pinion and flange L2 (mm) 22.7
Distance between pinion and nose L3 (mm) 15.3
Distance drive cover (mm) 64
Number of holes 2
Position of fixation 35-05-00
Position of centers 102
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO
