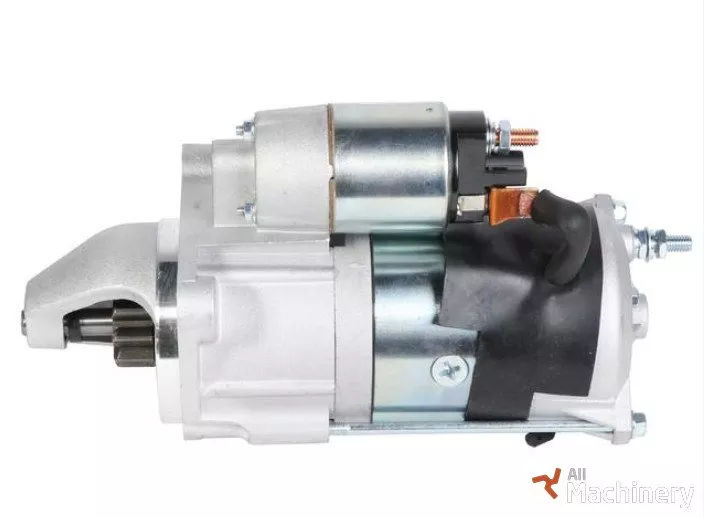

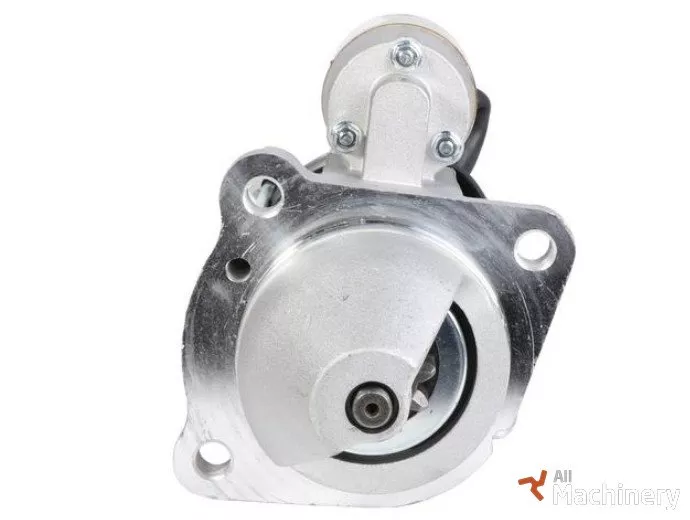

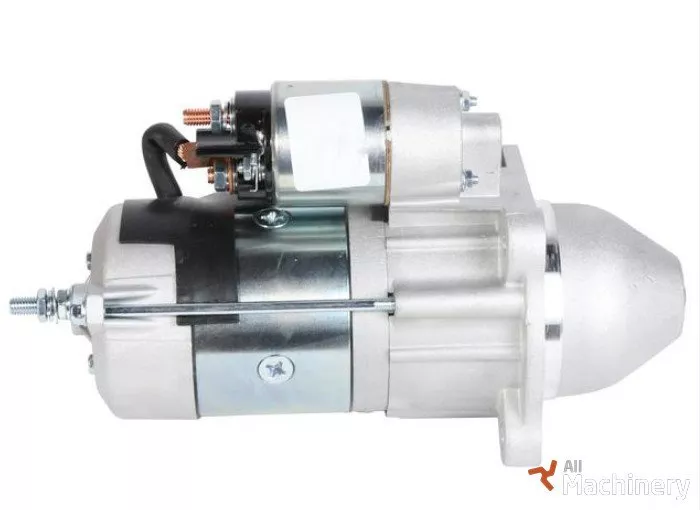

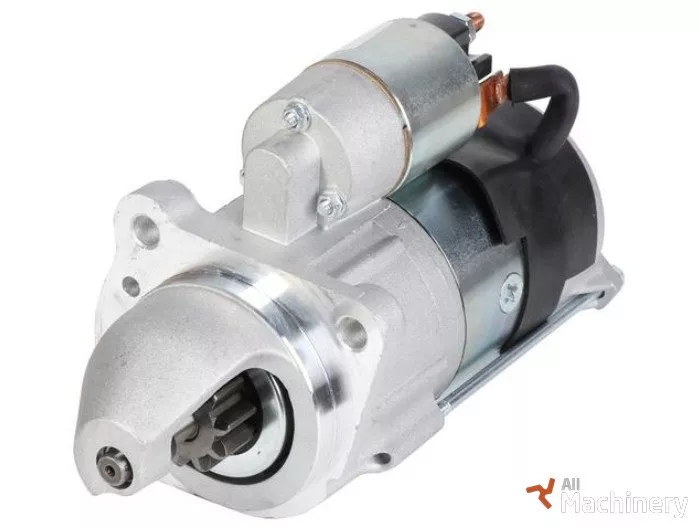

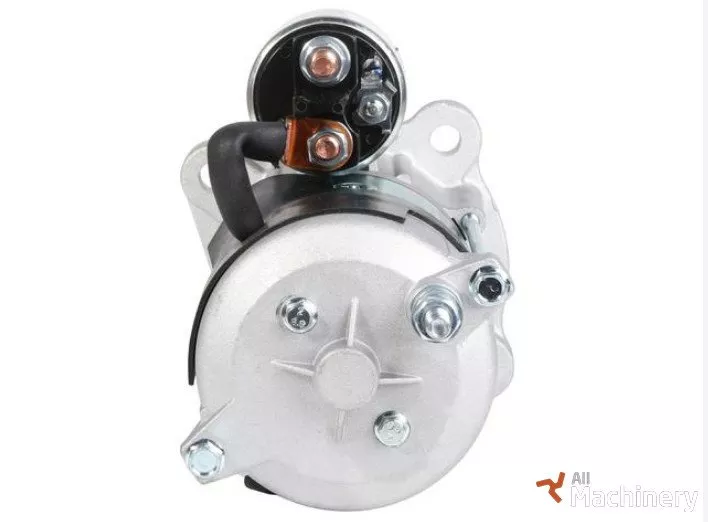

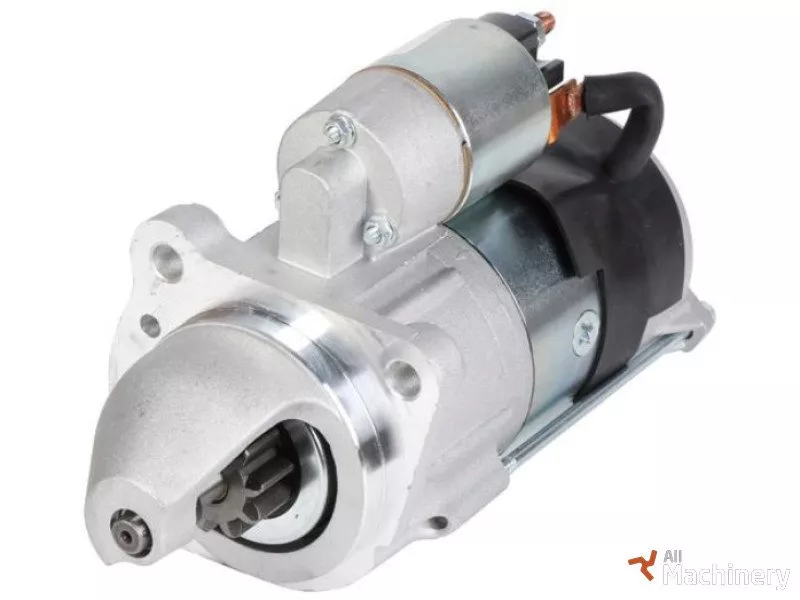

Starter type Direct drive
Type of head T
Voltage (V) 12
Power KW (kW) 3.2
Neck diameter D1 (mm) 89
Pinion Ø D2 (mm) 39.4
Number of teeth 10
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 277
Distance between pinion and flange L2 (mm) 28.5
Distance between pinion and nose L3 (mm) 15.3
Distance drive cover (mm) 73
Number of holes 3
Position of fixation 40-50-10
Position of centers 90-90-127
Ø mounting holes D3 (mm) 11
Oil sealed yes/no NO
