UAB Aivenos statybinė technika, Vilnius, Lithuania
Detailed Information
Comments

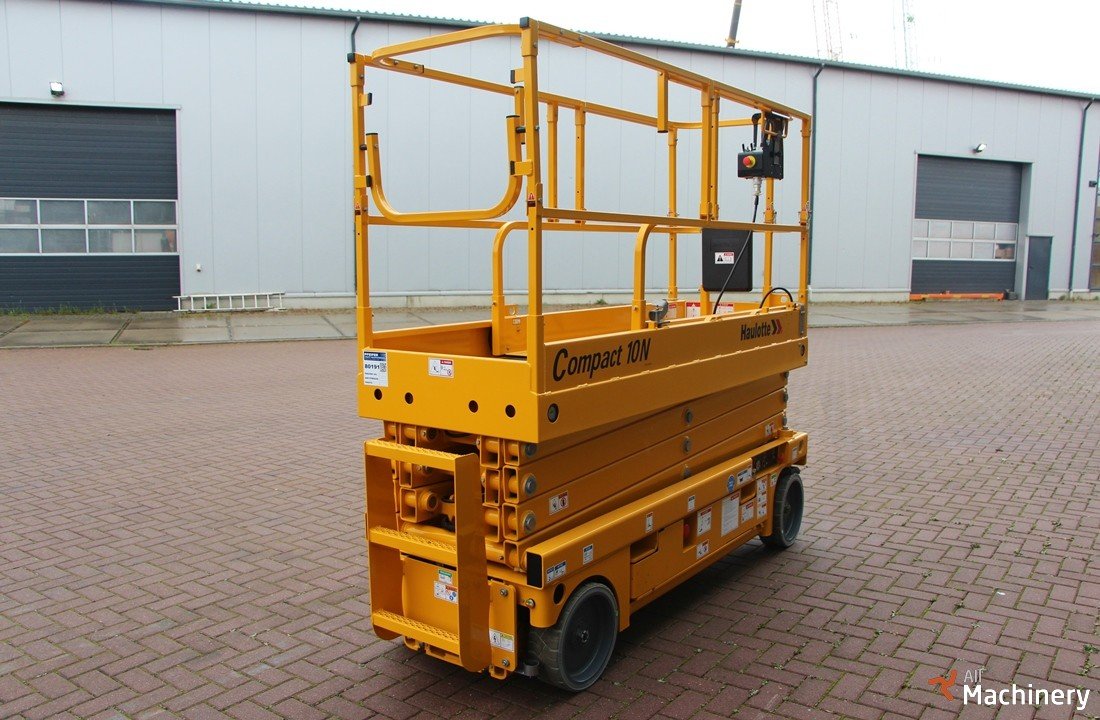

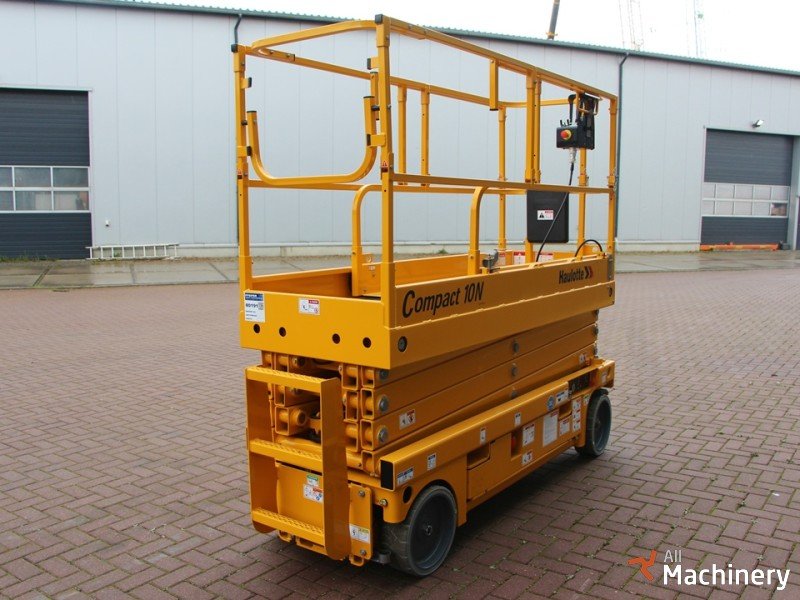

Haulotte Compact 10N
Working height 10 m
Platform height 8 m
Platform length 2.31 m
Platform length - extended 3.23 m
Length - extension 0.92 m
Platform width - outside 0.81 m
Storage height 1.32 m
Height - stowed 2.18 m
Overall width 0.81 m
Length 2.49 m
Wheelbase 1.86 m
Ground clearance - center 13 cm
Ground clearance - deployed potholes 2.5 cm
Drive speed 1 - 3.2 km/h
Max. drive working height 8 m
Gradeability 23 %
Tilt 2 °
Turning radius - outside 2.38 m
Non-marking tyres 15 x 5

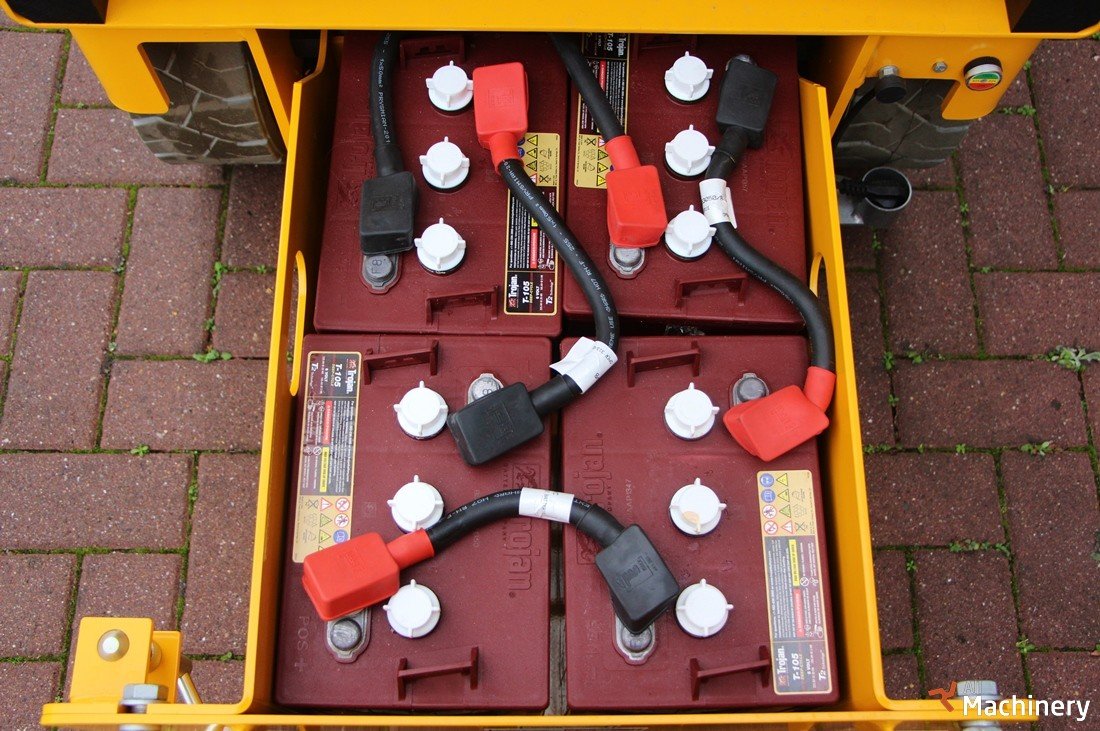

Batteries 24 V - 225 Ah (C20)
Hydraulic system capacity 27 l
Weight 2 190 kg
Platform size - extended 3.23 x 0.81 m
Lift capacity - inside 230 kg (2 pers.)
Lift capacity - outside N/A
Lift capacity on the extension 120 kg
XL platform length (option) 0 m
XL platform length - extended (option) 0 m
Lenght - extension XL option 0 m
Haulotte Compact 10N
Working height 10 m
Platform height 8 m
Platform length 2.31 m
Platform length - extended 3.23 m
Length - extension 0.92 m
Platform width - outside 0.81 m
Storage height 1.32 m
Height - stowed 2.18 m
Overall width 0.81 m
Length 2.49 m
Wheelbase 1.86 m
Ground clearance - center 13 cm
Ground clearance - deployed potholes 2.5 cm
Drive speed 1 - 3.2 km/h
Max. drive working height 8 m
Gradeability 23 %
Tilt 2 °
Turning radius - outside 2.38 m
Non-marking tyres 15 x 5
Batteries 24 V - 225 Ah (C20)
Hydraulic system capacity 27 l
Weight 2 190 kg
Platform size - extended 3.23 x 0.81 m
Lift capacity - inside 230 kg (2 pers.)
Lift capacity - outside N/A
Lift capacity on the extension 120 kg
XL platform length (option) 0 m
XL platform length - extended (option) 0 m
Lenght - extension XL option 0 m
