Type of the connection stud
Position of the connection straight
Current (A) 125
Voltage (V) 12
Quantity of poles on the battery disconnect switch 1
Auxiliary switch present YES
Type of the actuator fixed handle
Nominal diameter of the connection D1 (mm) 9.53
Type of thread connection 3/8 UNC
Pitch (inch) 16
Top built-in diameter of the battery disconnect switch D2 (mm) 19
Length thread panelmount L2 (mm) 20
Bottom built-in height of the battery disconnect switch H1 (mm) 67
Bottom built-in diameter of the battery disconnect switch D3 (mm) 68.3
Total height of the battery disconnect switch H2 (mm) 108
Total diameter of the battery disconnect switch D4 (mm) 68.3
Material of the housing metal-plastic
Material of the actuator metal

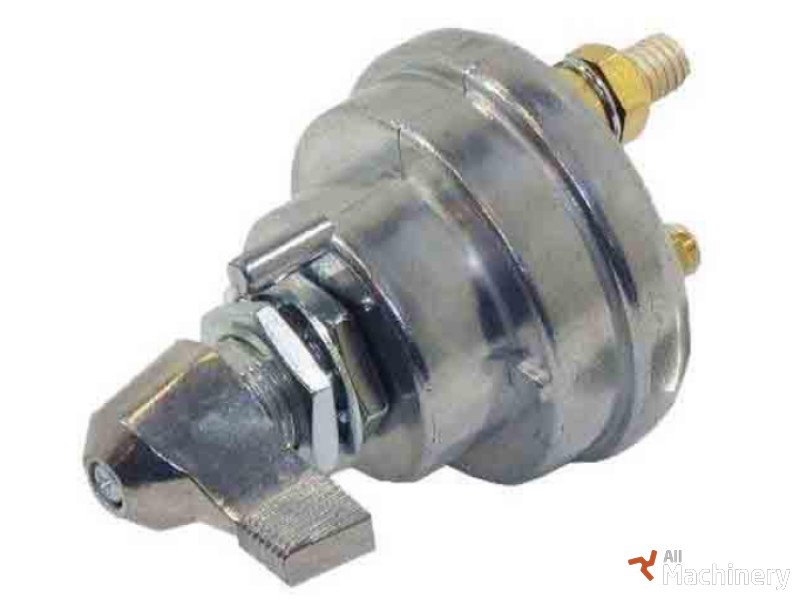

Battery switch Skyjack 119726
Type of the connection stud
Position of the connection straight
Current (A) 125
Voltage (V) 12
Quantity of poles on the battery disconnect switch 1
Auxiliary switch present YES
Type of the actuator fixed handle
Nominal diameter of the connection D1 (mm) 9.53
Type of thread connection 3/8 UNC
Pitch (inch) 16
Top built-in diameter of the battery disconnect switch D2 (mm) 19
Length thread panelmount L2 (mm) 20
Bottom built-in height of the battery disconnect switch H1 (mm) 67
Bottom built-in diameter of the battery disconnect switch D3 (mm) 68.3
Total height of the battery disconnect switch H2 (mm) 108
Total diameter of the battery disconnect switch D4 (mm) 68.3
Material of the housing metal-plastic
Material of the actuator metal
