GENIE HATZ 02502100 Working platform engines and parts

www.machinerypartsonline.eu
www.machinerypartsonline.com.au

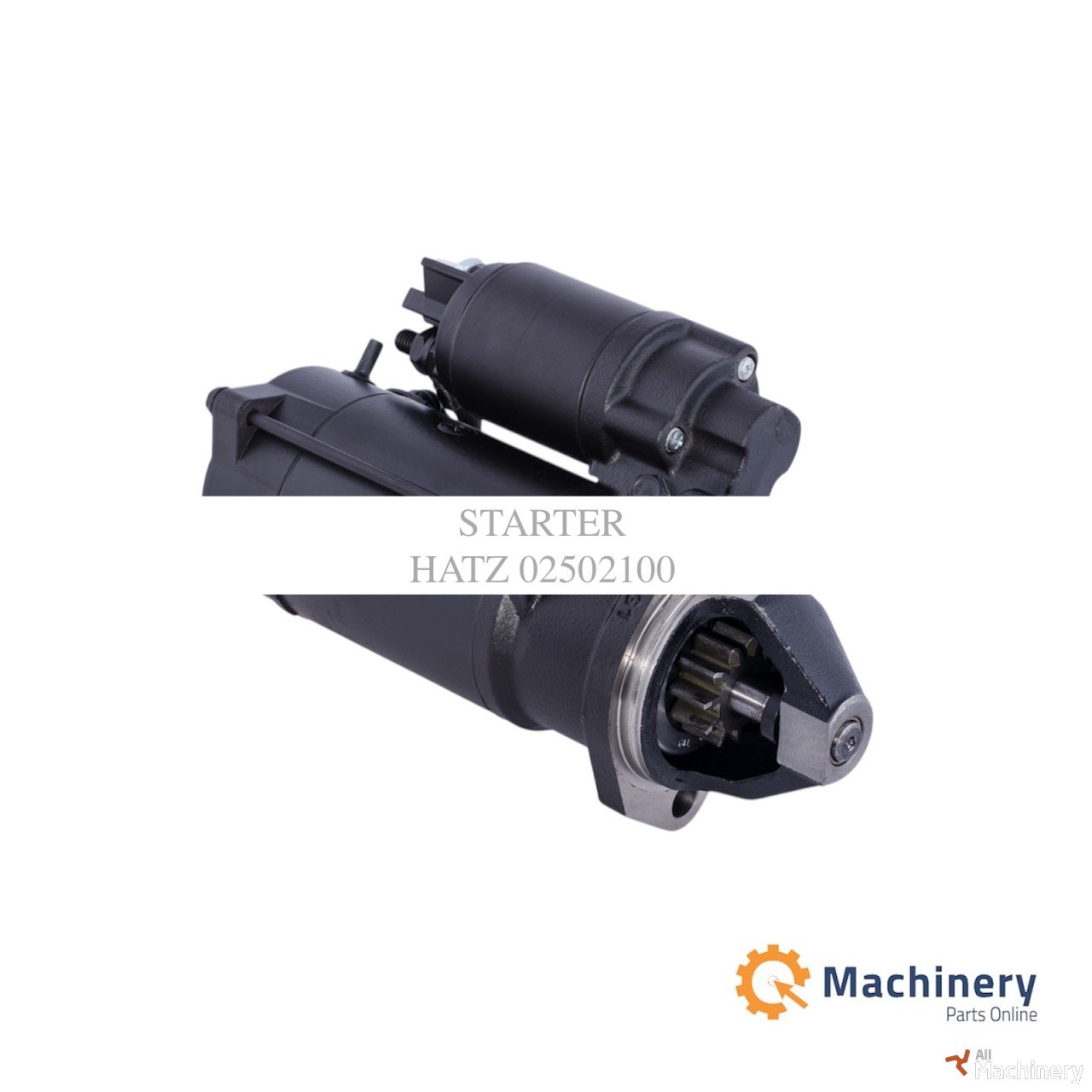

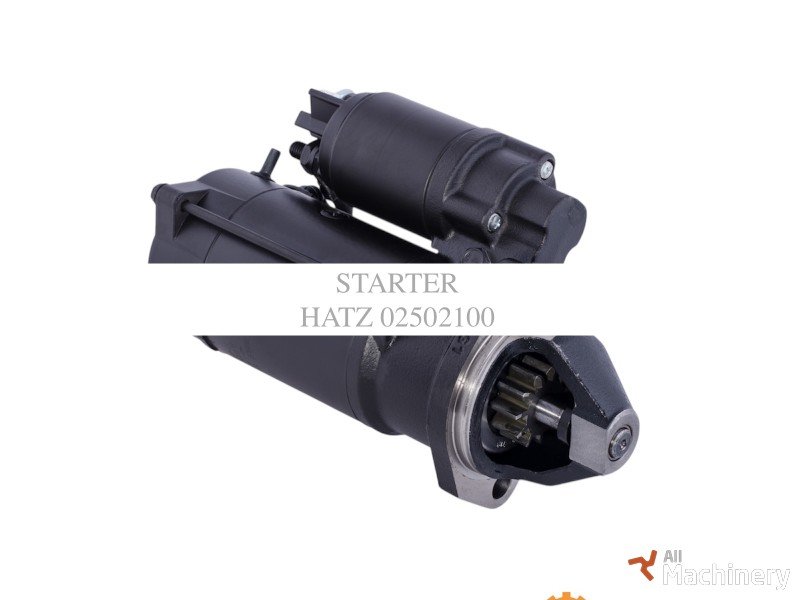

STARTER HATZ 02502100

Starter type:standard
Type of head:Z
Voltage (V):24
Neck diameter D1 (mm):82.5
Pinion diameter D2 (mm):40
Number of teeth:11
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):340
Distance between pinion and flange L2 (mm):21
Distance between pinion and nose L3 (mm):18.5
Distance drive cover L4 (mm):69
Number of holes:2
Position of fixation holes:55-25-00
Distances between fixation holes:105
Diameter mounting holes D3 (mm):13.5
Oil sealed:NO
Weight:12.35
