Starter type:standard
Type of head:K
Voltage (V):12
Neck diameter D1 (mm):89
Pinion diameter D2 (mm):39.2
Number of teeth:10
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):310
Distance between pinion and flange L2 (mm):30
Distance between pinion and nose L3 (mm):15
Distance drive cover (mm):75
Number of holes:3
Position of fixation holes:35-10-25
Distances between fixation holes:82-82-125
Diameter mounting holes D3 (mm):11
Oil sealed:YES

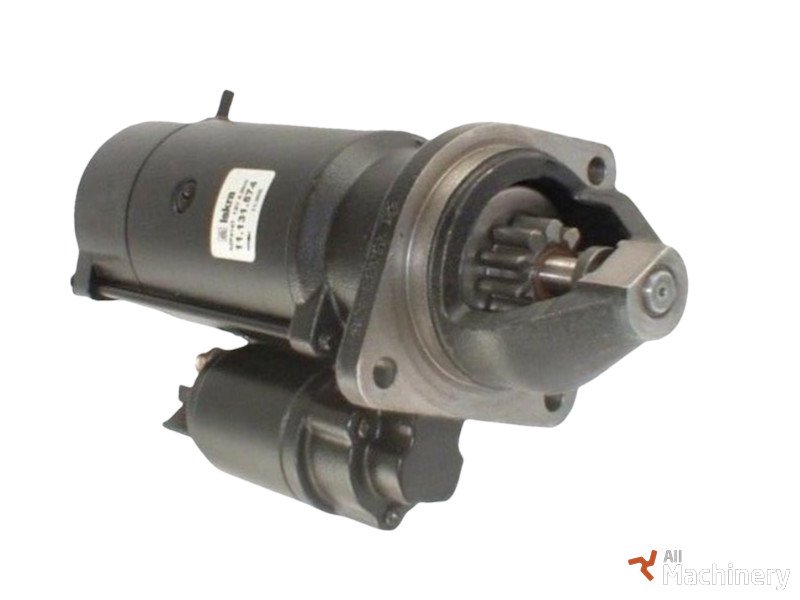

STARTER MANITOU 797368
Starter type:standard
Type of head:K
Voltage (V):12
Neck diameter D1 (mm):89
Pinion diameter D2 (mm):39.2
Number of teeth:10
Direction of rotation of the pinion:clockwise
Overall length of the starter L (mm):310
Distance between pinion and flange L2 (mm):30
Distance between pinion and nose L3 (mm):15
Distance drive cover (mm):75
Number of holes:3
Position of fixation holes:35-10-25
Distances between fixation holes:82-82-125
Diameter mounting holes D3 (mm):11
Oil sealed:YES
