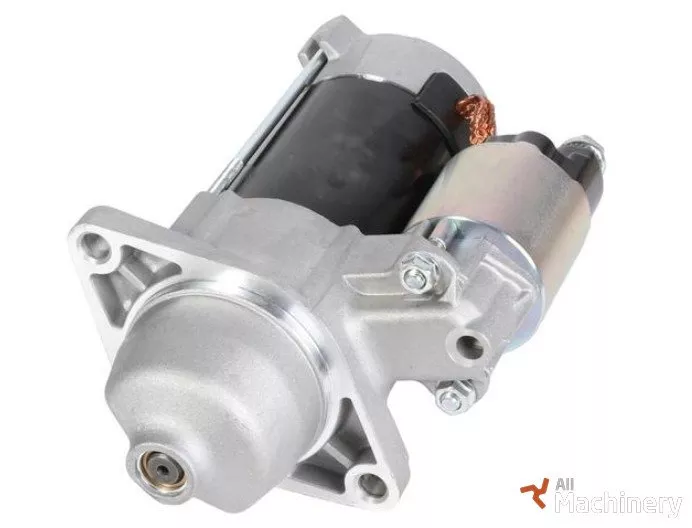

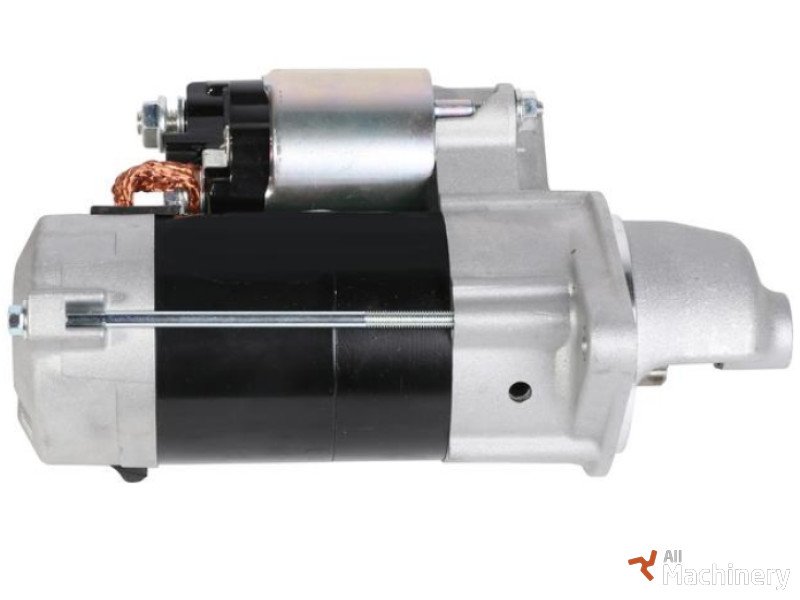

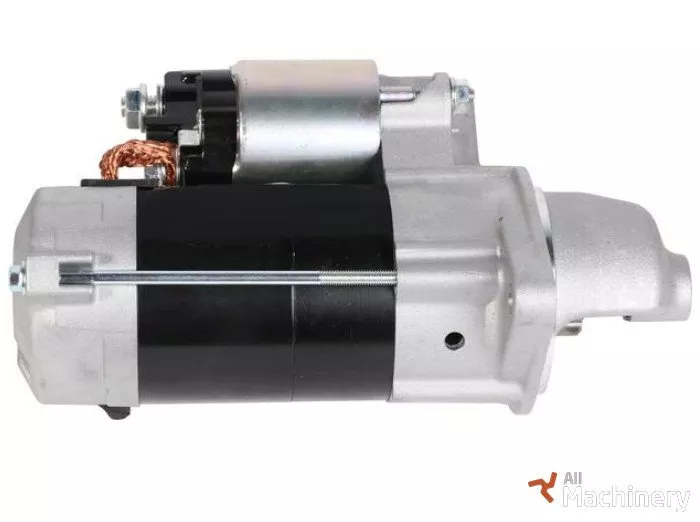

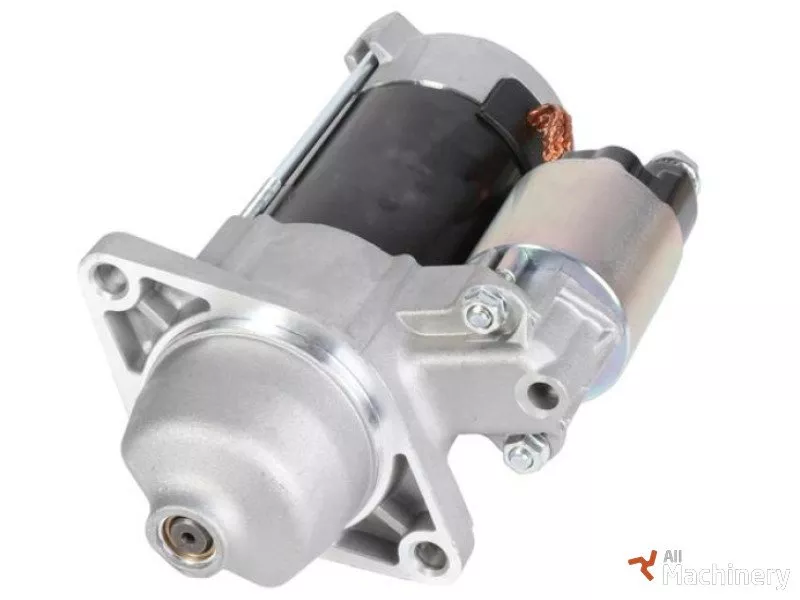

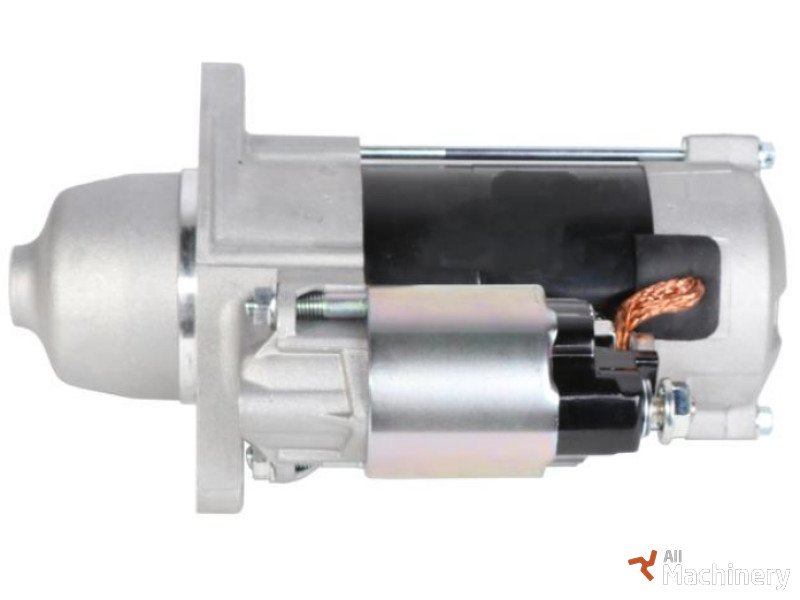

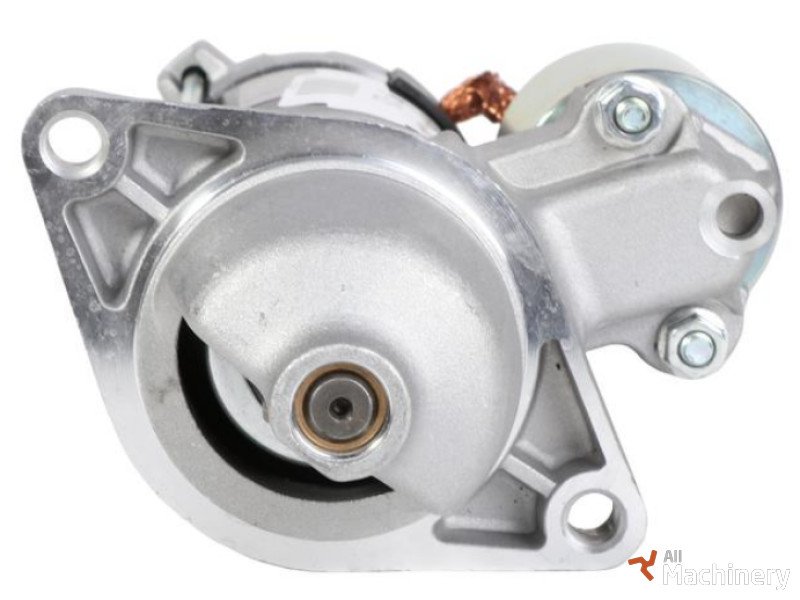

Starter Skyjack 136100
Weight (kg) 3,15 fits Skyjack Scissors SJ6832 RT, SJ8841 RT, and SJ9250 RT
Starter type Direct drive
Type of head U
Voltage (V) 12
Power KW (kW) 1.2
Neck diameter D1 (mm) 66
Pinion Ø D2 (mm) 29
Number of teeth 9
Direction of rotation of the pinion CW
Overall length of the starter L (mm) 207
Distance between pinion and flange L2 (mm) 17.5
Distance between pinion and nose L3 (mm) 12
Distance drive cover (mm) 53
Number of holes 2
Position of fixation 40-10-00
Position of centers 110
Ø mounting holes D3 (mm) 10
Oil sealed yes/no NO
Should you require any further information, feel free to give a shout and we will be glad to assist you:
