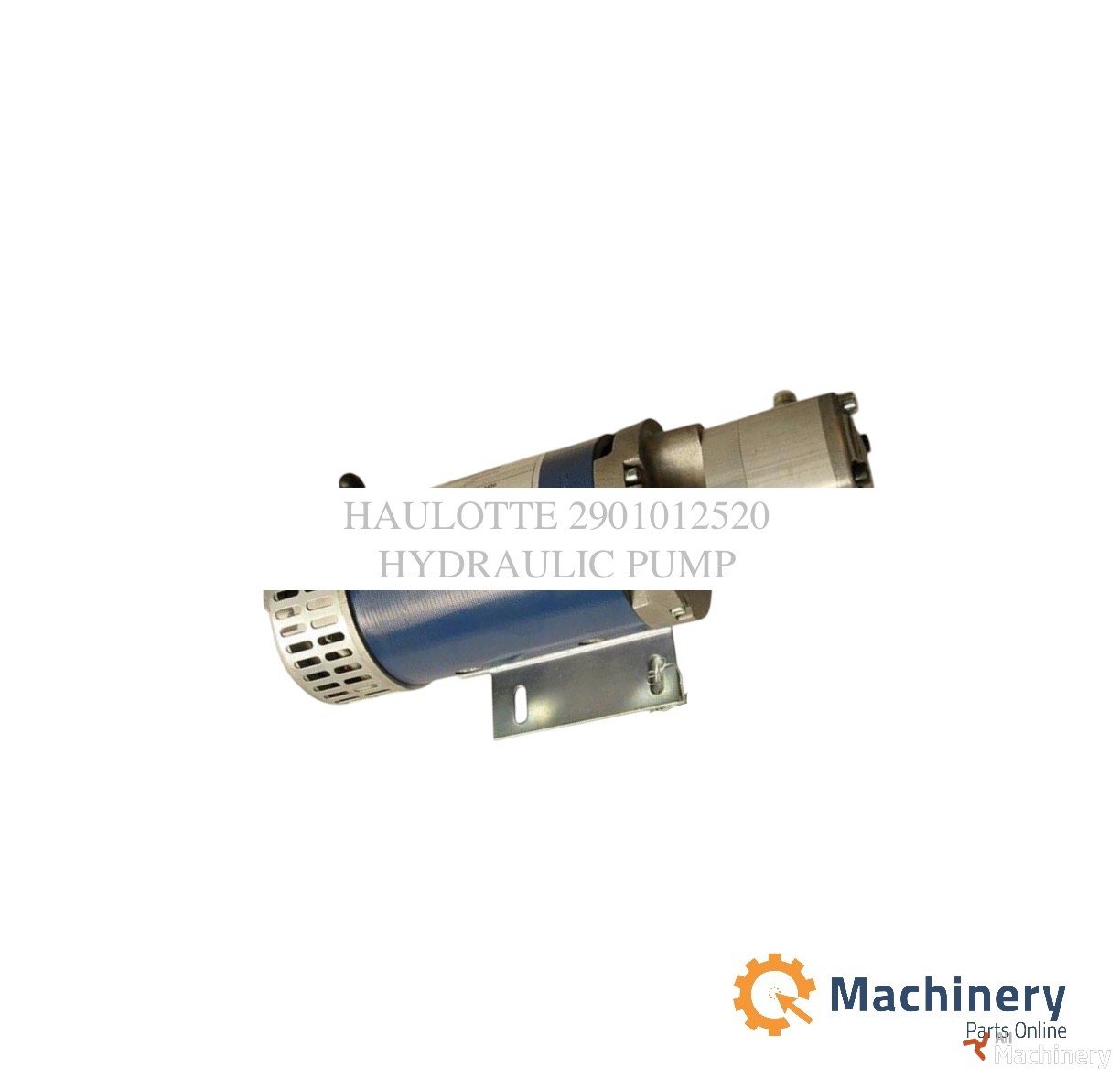

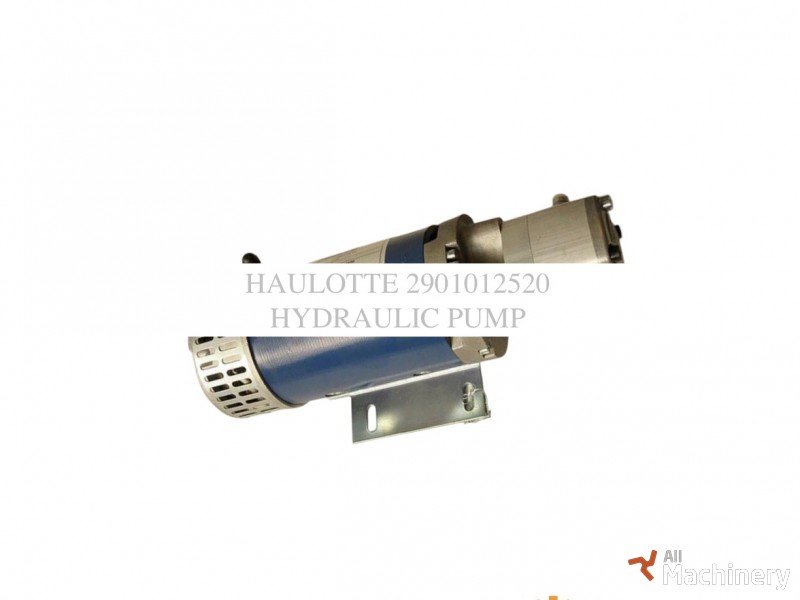

The HAULOTTE 2901012520 Hydraulic Pump is a DC motor-pump assembly designed for Haulotte access equipment. Operating at 24V DC with 4.5 kW power, it delivers 8.7 l/min flow at up to 240 bar, ensuring reliable hydraulic performance for lifting and control functions.
Technical Specifications:
Type of pump group TY-PG:motor-pump
Length L1:396 mm
Width B1:181 mm
Height H1:158 mm
AC / DC:direct current
Minimum voltage U1:24 V
Power:4.5 kW
Cooling fan present: yes
Direction of rotation motor:counterclockwise
Continuous operation: no
Intermittent operation:12 %
Starter relay present: no
Flow hydraulic pump:8.7 l/min
Pressure:240 Bar
Capacity:3.8 cc/rev
Type of flange:type C
Number of pump elements:1
Direction of rotation hydraulic pump:clockwise
Thread type TA1:1/2 BSP
Thread type TA2:3/8 BSP
Position:horizontal
Decompression:without
Lowering choke proportional with pump
ORDER ONLINE: https://machinerypartsonline.eu/product/hydraulic-pump-haulotte-2901012520/
