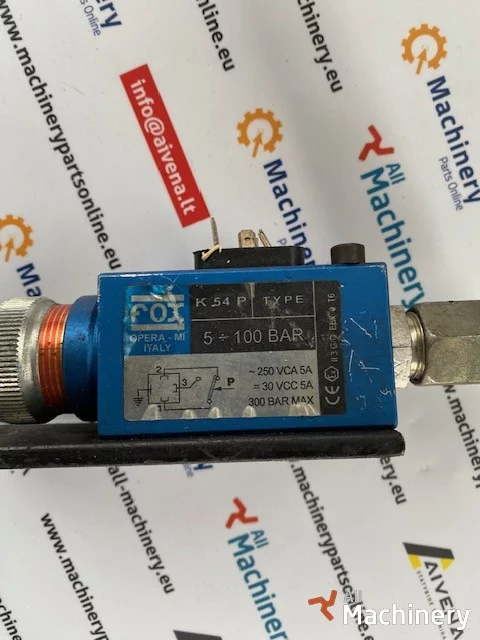

Fox K54P Mechanical Hydraulic Pressure Switch – Adjustable 5–100 Bar
The Fox K54P is a genuine OEM mechanical hydraulic pressure switch designed to monitor hydraulic system pressure and activate or deactivate an electrical circuit when the preset pressure is reached. It belongs to the FOX K5 Series and features a piston-operated sensing element, making it ideal for hydraulic applications with high pressure peaks and demanding operating conditions. The switch has an adjustable pressure range of 5 to 100 bar and is commonly used on construction machinery, aerial work platforms, agricultural equipment, industrial hydraulic power units, and mobile hydraulic systems.
Product Details:
Part Number: K54P
Description: Mechanical Hydraulic Pressure Switch
Type: Adjustable Piston Pressure Switch
Manufacturer: FOX S.r.l.
Pressure Range: 5–100 bar
Maximum Pressure: 300 bar
Hydraulic Connection: 1/4" BSP Female
Electrical Contact: SPDT (changeover contact)
Function: Monitors hydraulic pressure and switches electrical contacts at the preset pressure.
Technical Specifications:
Pressure Setting Range: 5–100 bar
Maximum Working Pressure: 300 bar
Hydraulic Port: 1/4" BSP Female
Switching Accuracy: ±5% of full scale
Fixed Hysteresis: Approximately 20% (piston version)
Maximum Electrical Load: 0.5 A at 250 VAC / 0.15 A at 110 VDC
Switching Frequency: Up to 90 cycles/min
Operating Temperature: -25°C to +85°C
Protection: IP54 (with optional protective cap)
Condition: Used, fully tested, in good working condition
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
