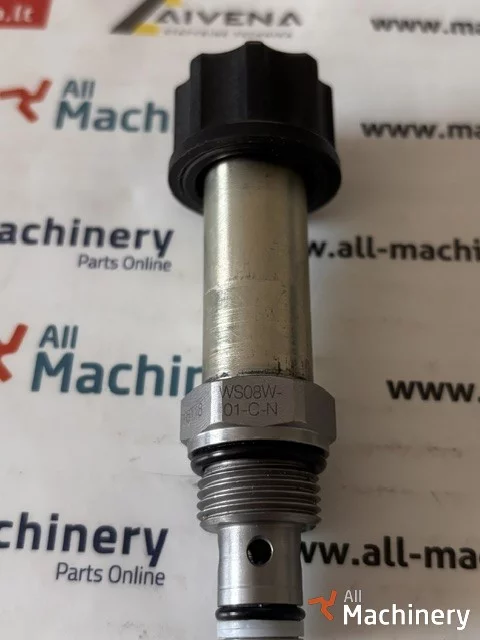

The HYDAC WS08W-01-C-N is a genuine OEM 2/2-way direct-acting poppet-type hydraulic cartridge valve designed for leak-free load holding and on/off flow control in hydraulic systems. In its de-energized state, the valve blocks flow in both directions. When energized, it opens to allow bi-directional flow, making it ideal for mobile and industrial hydraulic applications requiring reliable shut-off with minimal internal leakage.
Product Details:
Part Number: WS08W-01-C-N
Description: Hydraulic Cartridge Solenoid Valve
Manufacturer: HYDAC
Valve Type: 2/2-Way Direct-Acting Poppet Valve
Configuration: Normally Closed (NC)
Installation: Screw-in cartridge
Cavity: FC08-2 (SAE-08)
Seal Material: NBR (standard)
Function: Provides leak-tight shut-off and bi-directional hydraulic flow control when energized.
Technical Specifications:
Valve Type: 2/2-way poppet valve
Operation: Direct-acting
Normal Position: Closed
Maximum Operating Pressure: 250 bar (3,600 psi)
Maximum Flow Rate: 19 L/min (5 GPM)
Internal Leakage: Leak-tight (less than 2–5 drops/min at rated pressure)
Operating Fluid: Hydraulic oil according to DIN 51524
Fluid Temperature: -30°C to +100°C (NBR seals)
Ambient Temperature: -20°C to +60°C
Recommended Filtration: ISO 4406 Class 21/19/16 or cleaner
Cavity: FC08-2 (SAE-08)
Condition: New
Shipping: Fast worldwide shipping available
Seller: UAB "Aivenos statybinė technika"
Contact us today via Phone, WhatsApp, or Viber
+370 675 75 756
