SKYJACK Skyjack 158438 Working platform operating parts (2019 year)

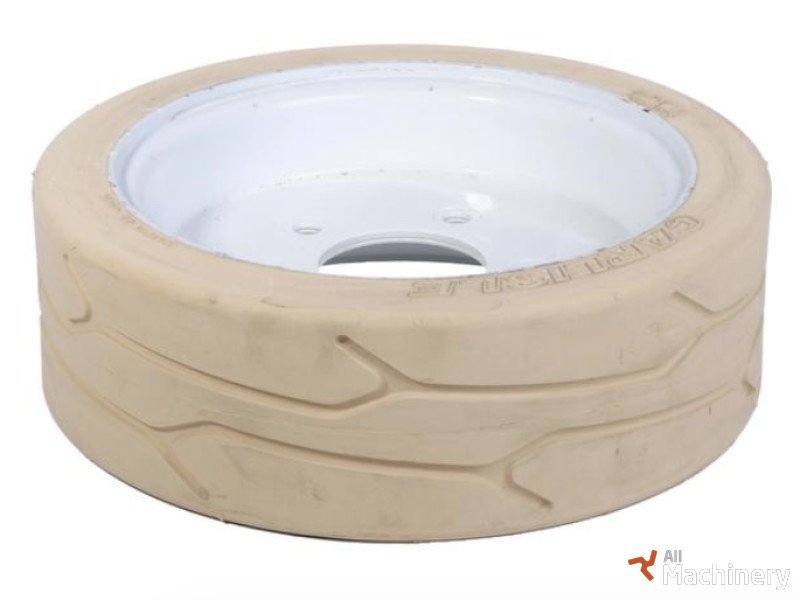

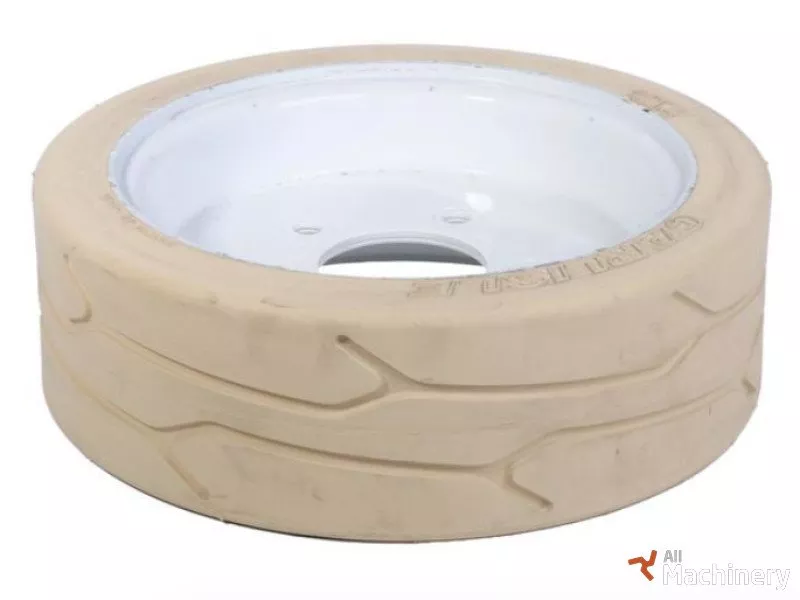

Tire and wheel assembly Skyjack 158438.  Fits Skyjack SJIII3015, SJIII3215, SJIII3219.

Sort of traction wheel standard traction wheel
Diameter of the wheel (mm) 302
Width of the wheel (mm) 100
Diameter of the rim (mm) 235
Width of the rim (mm) 90
Shaft diameter (mm) 72
Inner offset of the flange (mm) 46.7
Outer offset of the flange (mm) 46.7
Thickness of the flange (mm) 6.6
Material of the wheel (grouped) rubber
Shape of the tread cylindrical
Wheel profile other
Material of the rim steel plate
Cam present NO
Number of bolt holes 5
Type of bolt hole conical countersunk
Diameter of the bolt holes (mm) 13
Biggest diameter of the bolt holes (mm) 16
Height of the countersunk bolt hole (mm) 2.7
Pitch circle diameter (mm) 115
Centre distance of the bolt holes (mm) 67
Rim and tyre NO
One side is closed NO
