BOBCAT Bobcat 7179600 Loader hydraulics (2020 year)

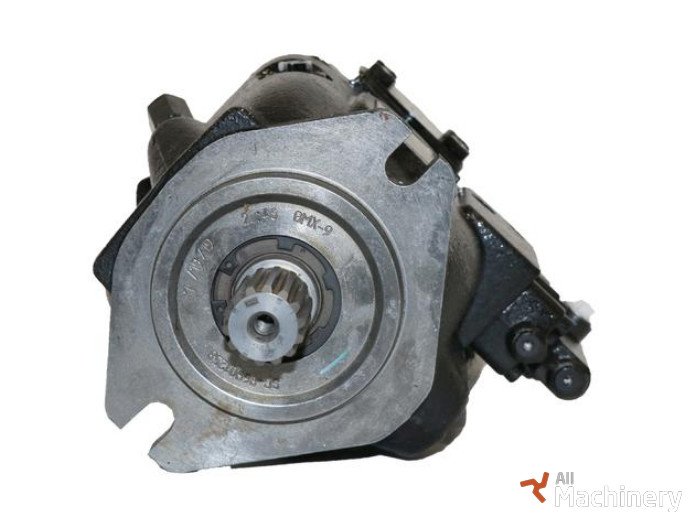

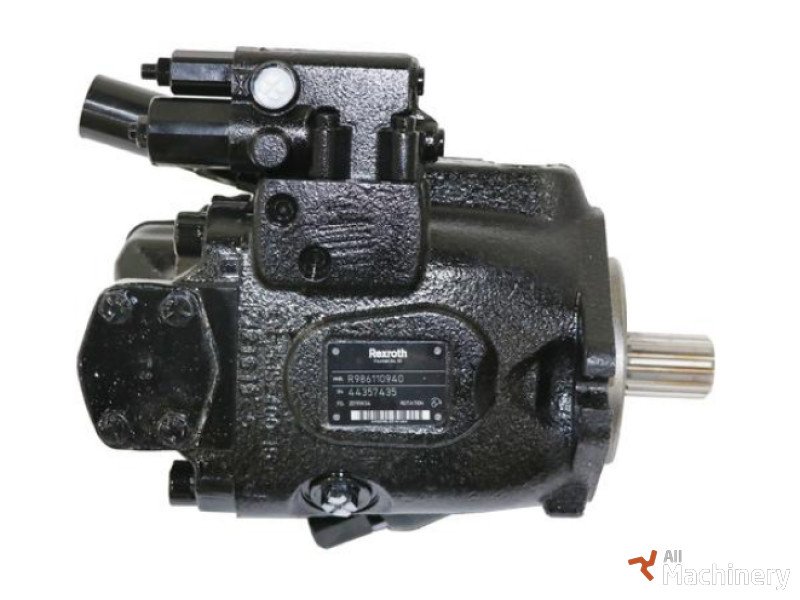

Hydraulic pump Bobcat 7179600

Type of pump plunger pump
Number of elements 1
Type of flange type B
Center distance of mounting holes C1 (mm) 149.5
Total length of pump L1 (mm) 304
Neck diameter D2 (mm) 101.5
Type of shaft type E
Distance from flange to end L2 (mm) 55.4
Diameter of shaft D3 (mm) 31.2
Number of splines 14
Thread type (on shaft) TA2 5/16 UNC
Direction of rotation clockwise
Thread type of connections suction 1st element 1/2 UNC
Center distance between mounting holes C-CO1a (mm) 42.9
Center distance between mounting holes C-CO2a (mm) 77.8
Thread type of connection pressure port 1st element TA-COb 3/8 UNC
Center distance between mounting holes C-CO1b (mm) 26.2
Center distance between mounting holes C-CO2b (mm) 52.4
Flow control valve present YES
Biggest Thread type valve TA3 7/16 UNF
